Scroll to zoom Click a part # to view details

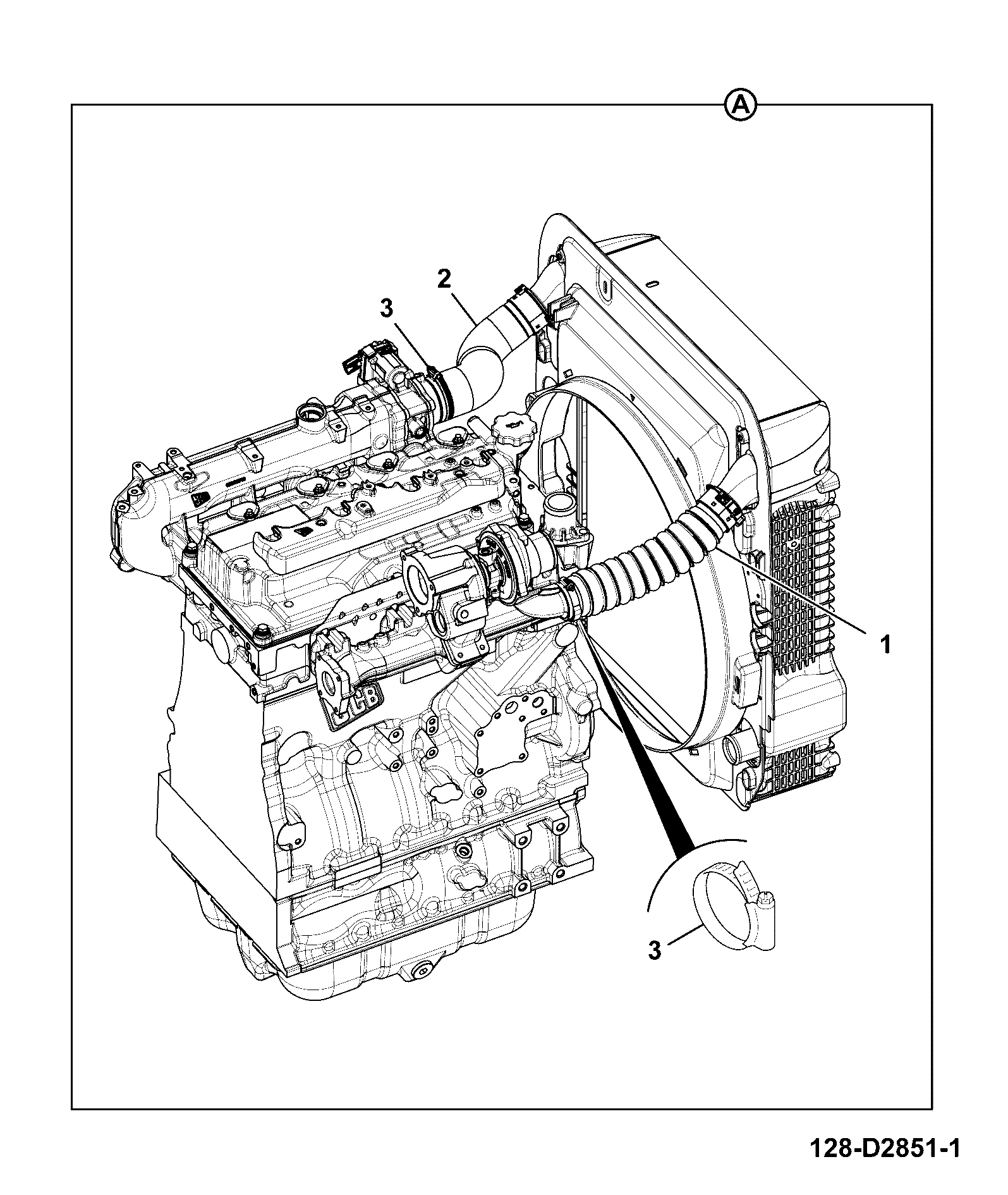

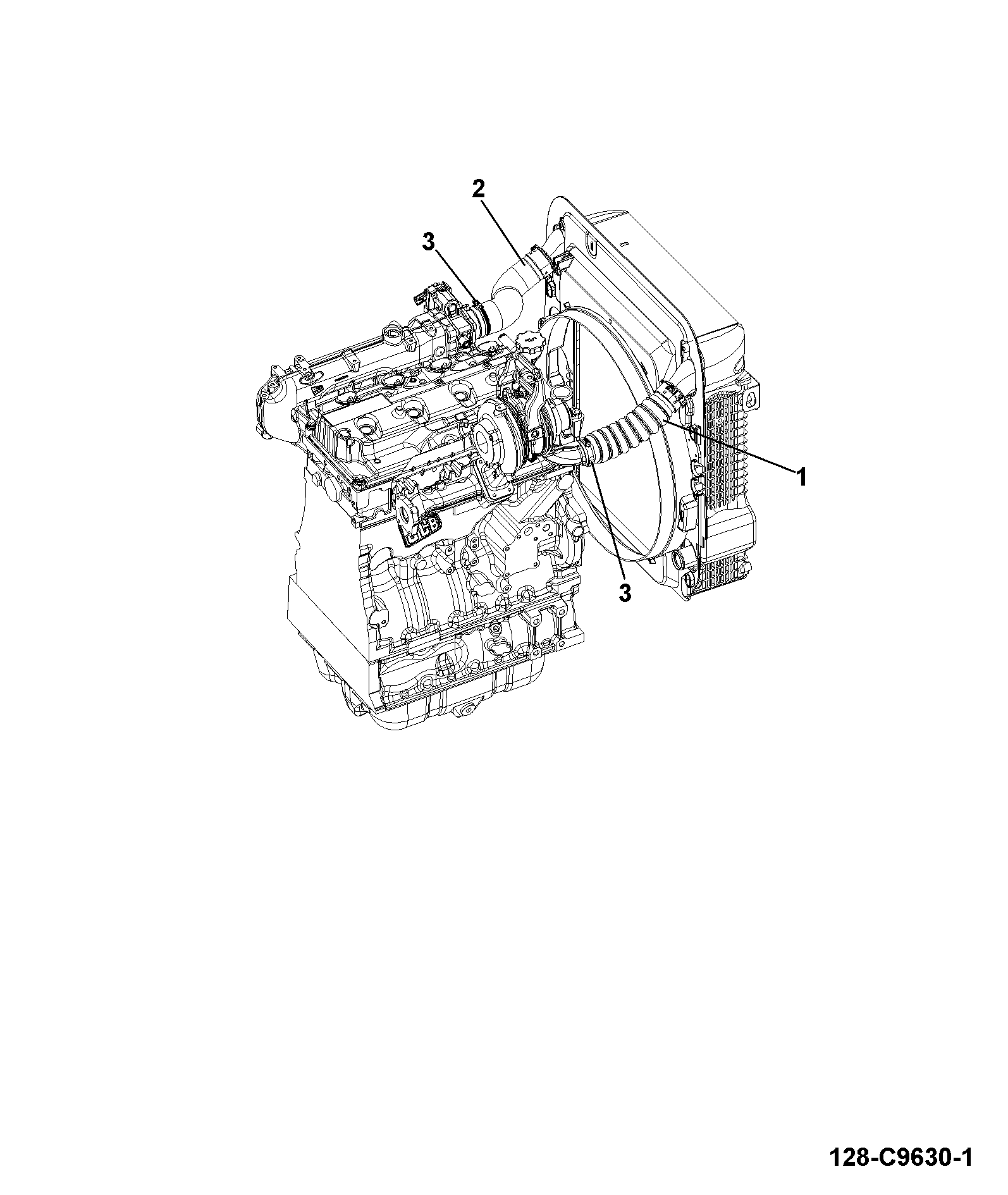

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TOP HOSE 2WS T4 401/P0020 | 1 | $113.98 | |||
| 2 | BOTTOM HOSE 2WS T4 401/P0021 | 1 | $95.89 | |||
| 3 | BREATHER HOSE EGR 333/C4050 | 1 | $127.42 | |||
| 4 | ASSY - HOSE BRACKET 128/F2839 | 1 | $33.12 | |||
| 5 | ASSY - COOLANT HOSE BRACKET 128/G2696 | 1 | $25.34 | |||
| 6 | ABI EXPANSION TANK 4L 128/D1283 | 1 | $305.35 | |||
| 7 | Clamp 42mm pipe 332/C8902 | 1 | $13.29 | |||
| 8 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 9 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 10 | EDGE CLIP 15-21 DIA HOSE 333/C7326 | 1 | $0.89 | |||
| 11 | CABLE TIE 150mm 826/10711 | 1 | $3.02 | |||
| 12 | GROMMET 2410/0110 | 1 | $17.88 | |||
| 13 | CABLE TIE LOCKING 826/11447 | 1 | $0.38 | |||
| 14 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 16 | SCREW(KANBAN) (P785) (BR3) 1317/3307Z | 1 | $1.86 | |||
| 17 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 18 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 20 | BOLT FLANGED HEX M10 x 25(KANBAN) 1317/3407Z | 1 | $0.81 | |||
| 21 | CABLE TIE 300mm 826/11017 | 1 | $2.08 | |||
| 22 | (W) WASHER 5/16 MED PLAIN 1411/0002Z | 1 | $0.26 | |||
| 23 | LEVEL SWITCH SUPPORT BRACKET 333/F2850 | 1 | $106.18 | |||
| 24 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 25 | NUT M6 STD SELF LOCK(KANBAN) 1370/0103Z | 1 | $1.43 | |||
| 26 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 27 | WASHER 1/4 MEDIUM PLAIN 1411/0001Z | 1 | $0.14 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-
DIAG-L640-10-5-394856 L640-10-5 COOLANT CIRCUIT AWS, T4i
View Diagram -
DIAG-L660-3-1-394856 L660-3-1 CHARGED AIR COOLING CIRCUIT 2WS, T4i, 55KW
View Diagram -
DIAG-L660-4-1-394856 L660-4-1 CHARGED AIR COOLING CIRCUIT 2WS, T4i, 68 & 81KW
View Diagram
