Scroll to zoom Click a part # to view details

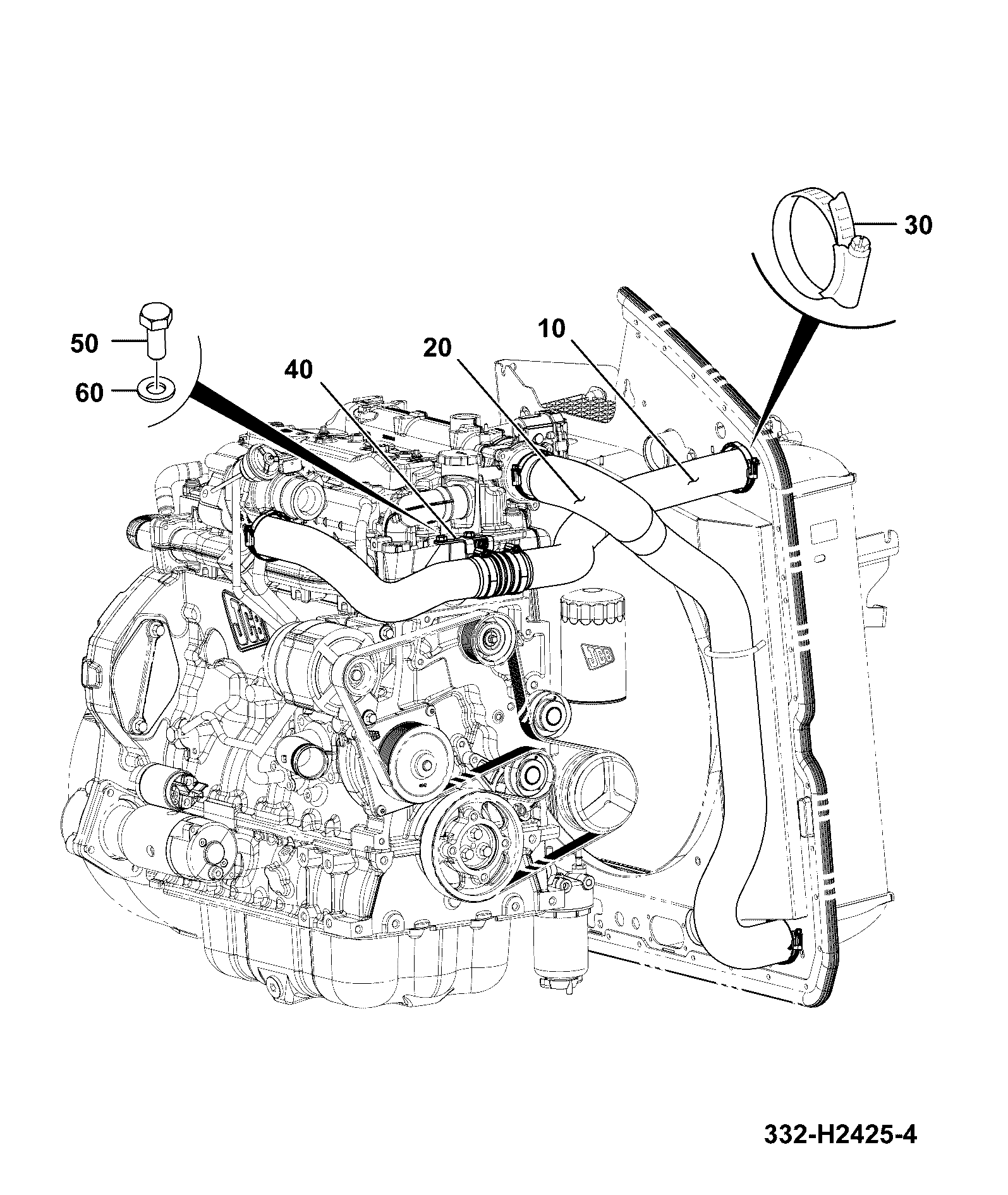

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | ABI TOP HOSE - T4 333/D5420 | 1 | $221.17 | |||
| 20 | VENT HOSE 333/E4575 | 1 | $11.56 | |||
| 30 | BOTTOM HOSE REAR 332/H3027 | 1 | $430.60 | |||
| 40 | BOTTOM HOSE FRONT 332/H3028 | 1 | $121.97 | |||
| 50 | COOLING HOSE BRKT 333/C9335 | 1 | $300.51 | |||
| 60 | SUPPORT BRKT 333/D1467 | 1 | $39.81 | |||
| 70 | SET SCREW M10x20 1315/0405Z | 1 | $4.23 | |||
| 80 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 90 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 100 | WORM DRIVE SPRING CLIP 60-80mm 2206/6080 | 1 | $16.41 | |||
| 110 | WORM DRIVE SPRING CLIP (BR3) (P933) 2206/4060 | 1 | $15.09 | |||
| 120 | SPRING BAND CLIP 35-50mm (P933) 2206/3550 | 1 | $12.52 | |||
| 130 | SPRINGBAND HOSE CLAMP(KANBAN) 821/10476 | 1 | $0.78 | |||
| 140 | WORM DRIVE SPRING CLIP 12(KANBAN) 2206/1222 | 1 | $8.36 | |||
| 150 | Clip constant torq(KANBAN) 2206/5070 821/10236 | 1 | $50.10 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-L660-10-1-400960 L660-10-1 CHARGED AIR COOLING CIRCUIT 55KW
View Diagram -

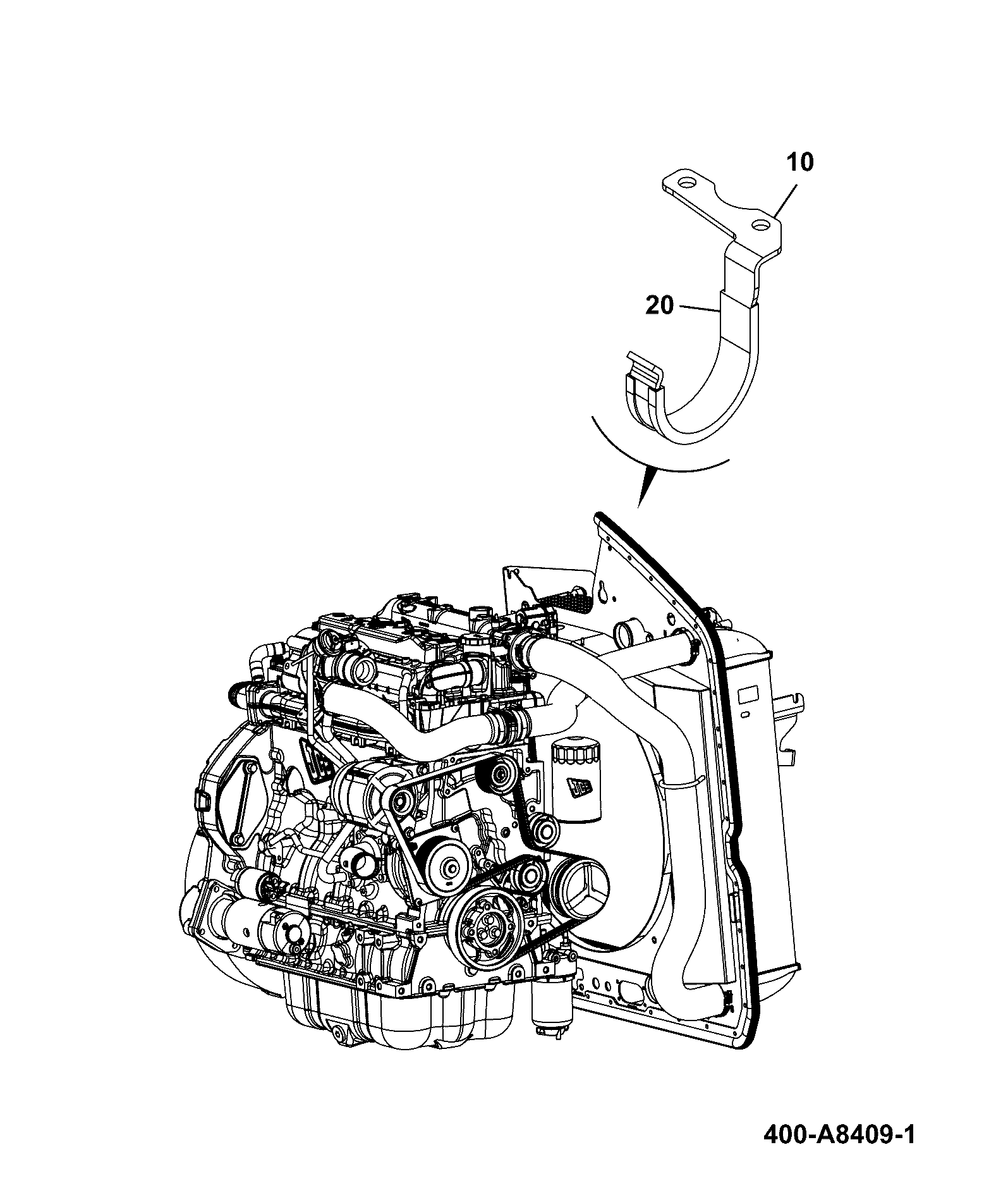

DIAG-L690-15-1-400960 L690-15-1 OTHER COOLING SYSTEM PARTS CAC BRACKET - HOT
View Diagram -
L700-1-1 FAN INSTALLATION ASSEMBLIES REVERSE HYDRAULICS
View Diagram
