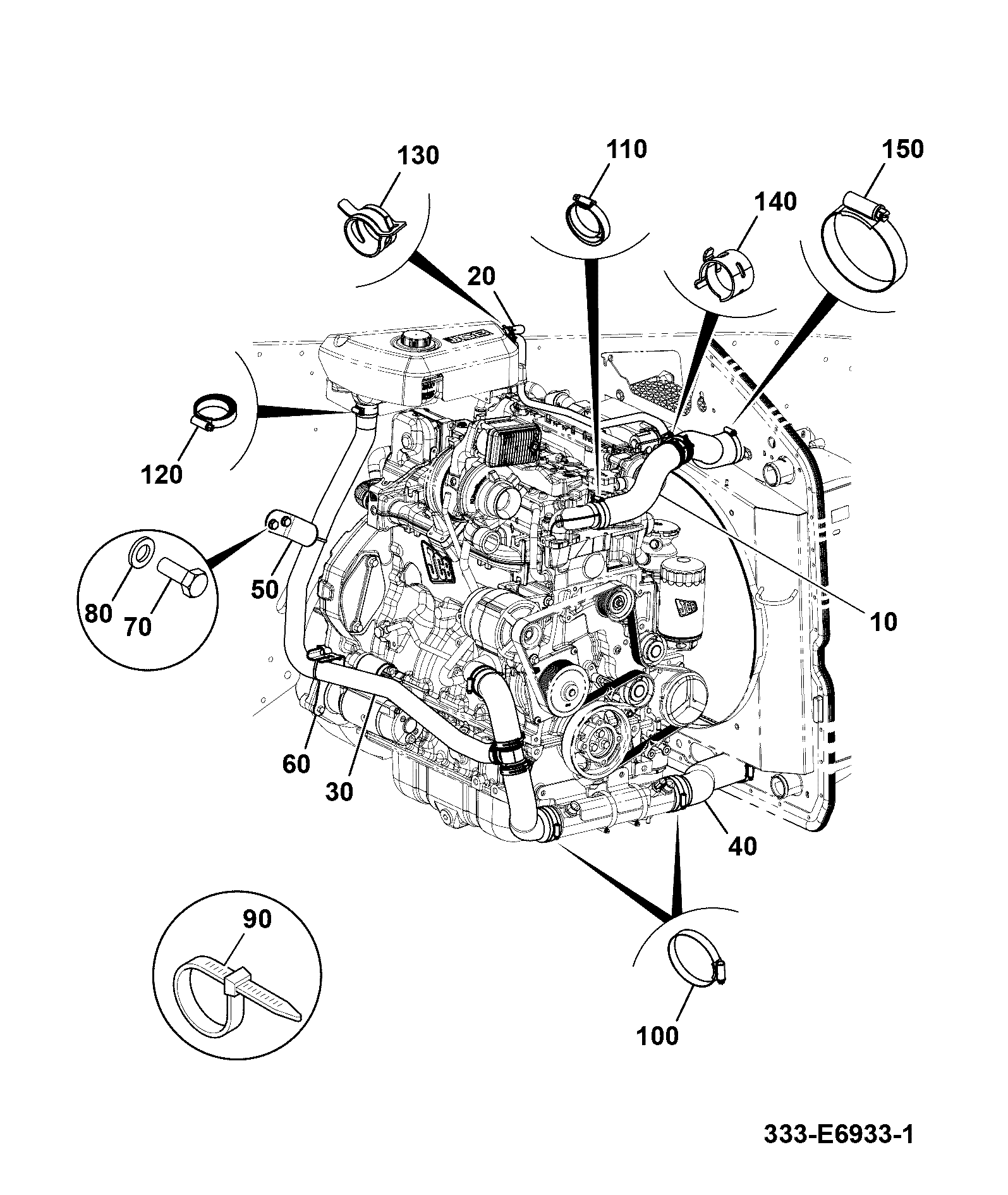

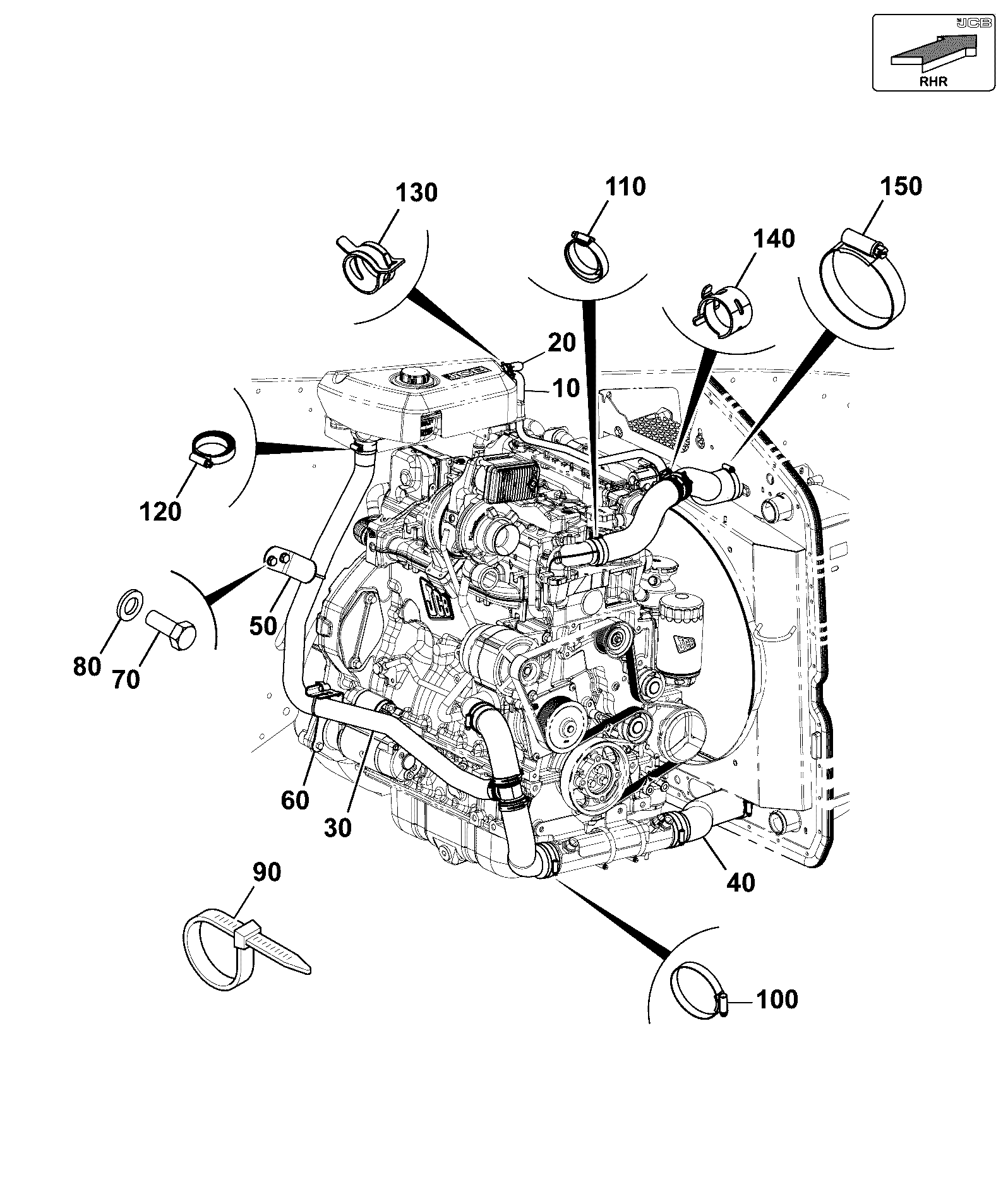

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA SEAL PLATE 56KW+ 403/G4497 | 1 | $1,236.34 | |||
| 20 | ABI COOLING PACK - 81KW 333/C1555 | 1 | $4,799.48 | |||
| 30 | WA LIFT PUMP BRACKET 333/C7730 | 1 | $17.00 | |||
| 40 | ABI SEAL - ANTI RECIRC 335/F5265 | 1 | $193.60 | |||
| 60 | BOLT M8X25 NYLON 1318/0307Z | 1 | $26.40 | |||
| 70 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 80 | BOLT M8 x 100 -NYLONPATCH g8.8 1318/3320Z | 1 | $4.87 | |||
| 90 | SET SCREW M8x16 NYLON 1318/0303Z | 1 | $0.55 | |||
| 100 | ANTI-RECIRCULATION SEAL 333/C5615 | 1 | $13.36 | |||
| 120 | GROMMET - CAC PORT 332/C9024 | 1 | $7.04 | |||
| 130 | RAD SEAL 332/C9765 | 1 | $17.67 | |||
| 140 | RAD SEAL 332/C9753 | 1 | $34.52 | |||
| 150 | TIE MOUNT.CRADLE MNT. 826/01274 | 1 | $0.92 | |||
| 160 | GROMMET 2410/1110 | 1 | $1.78 | |||
| 170 | FOAM SEALING STRIP 345mm Long 332/C2978 | 1 | $8.94 | |||
| 180 | CABLE TIE LOCKING 826/11447 | 1 | $0.38 | |||
| 190 | GROMMET 2410/0111 | 1 | $7.31 | |||
| 210 | GROMMET 2410/0105 | 1 | $4.77 | |||
| 220 | FLANGE LOCK NUT M6 G8 1370/0109D | 1 | $1.20 | |||
| 230 | BOLT M_6 L-_16mm G-_8.8 FLANGED HEX 1317/3203D | 1 | $3.61 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-L610-60-1-401959 L610-60-1 COOLING PACK INSTALLATION 55KW
View Diagram -
DIAG-L640-15-1-401959 L640-15-1 COOLANT CIRCUIT HOSES & FITTINGS 55KW , TIER 4 FINAL
View Diagram -
DIAG-L640-105-1-401959 L640-105-1 COOLANT CIRCUIT HOSES & FITTINGS 55 kW
View Diagram
