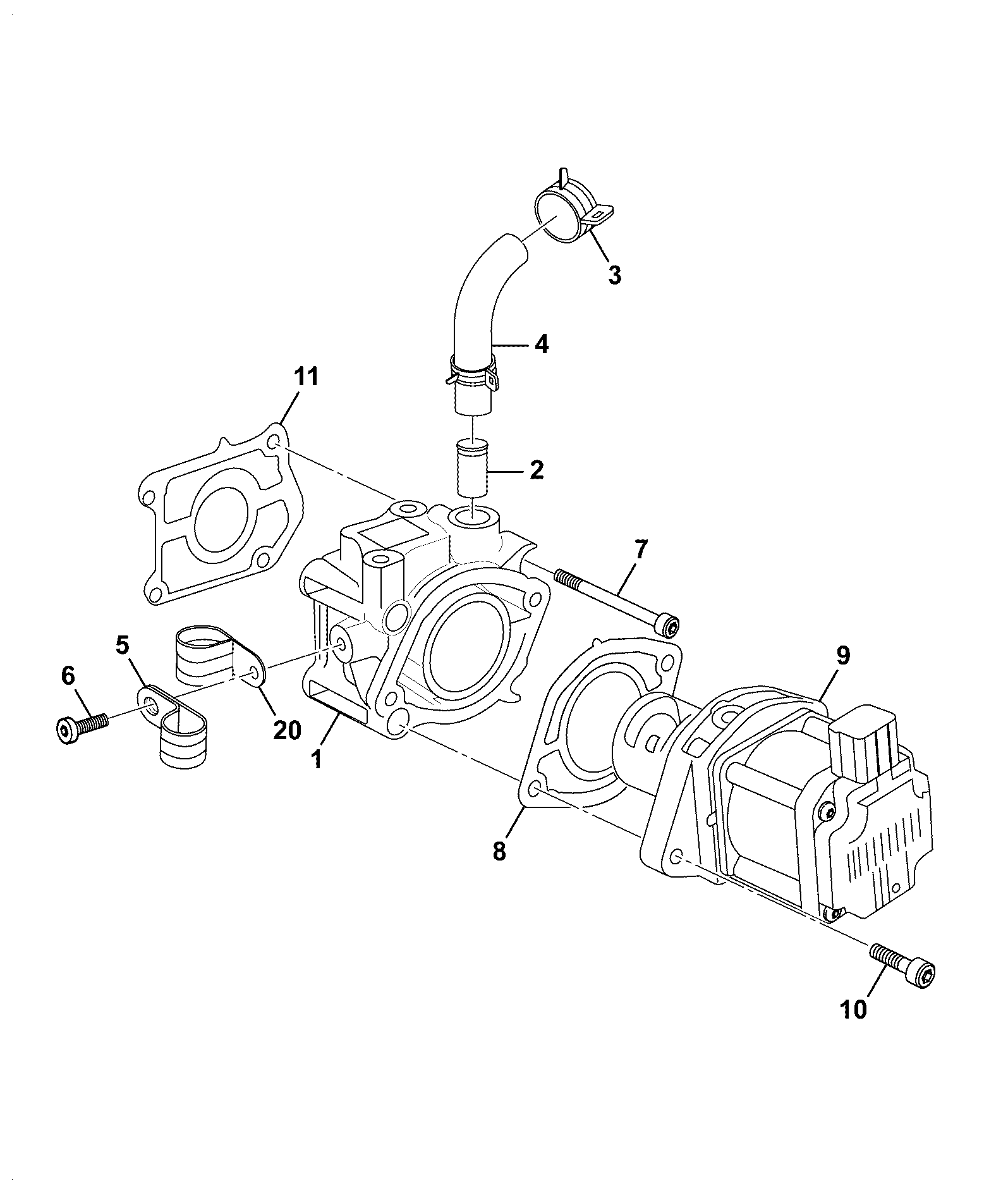

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | UPPER ELBOW-BOTTOM RAD TUBE 400/D3553 | 1 | $15.72 | |||
| 3 | TUBE LOWER-RADIATOR SP 4 CYL 333/X4867 | 1 | $39.19 | |||
| 4 | SPRING BAND CLIP 35-50mm (P933) 2206/3550 | 1 | $12.52 | |||
| 5 | CONSTANT-TORQUE WORM CLIP(KANBAN) 821/10191 | 1 | $49.25 | |||
| 6 | ABI-COOLANT OVERFLOW BOTTLE 333/P3473 | 1 | $35.40 | |||
| 7 | MISC CONSTANT TORQUE CLIP 333/W7064 | 1 | $16.80 | |||
| 8 | CABLE TIE 385MM 001/00233 270/00106 | 1 | $0.58 | |||
| 9 | HOSE-TOP SP T4-4 CYL 400/D5878 | 1 | $48.12 | |||
| 10 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $1.25 | |||
| 11 | HOSE-CAC INLET T4-4 CYL 400/D5880 | 1 | $258.34 | |||
| 12 | HOSE-CAC OUTLET T4-4 CYL 400/D3554 | 1 | $167.52 | |||
| 13 | LOWER ELBOW-BOTTOM RAD TUBE 333/X4866 | 1 | $31.96 | |||
| 14 | HOSE-EGR VENT 333/X0435 | 1 | $13.26 | |||
| 15 | HOSE-COOLANT OVERFLOW SP 335/B3221 | 1 | $6.12 | |||
| 16 | ELBOW TO MALE PIPE BARB 90 332/X9079 | 1 | $18.33 | |||
| 17 | BOLT M10x30 (GLOBAL) 1315/3408Z | 1 | $4.02 | |||
| 18 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 19 | RUBBER MOUNT 331/42519 | 1 | $85.36 | |||
| 20 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 22 | 21/00487 16mm (P545) 826/00864 | 1 | $12.44 | |||
| 23 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 24 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 25 | GROMMET 9.5IDx19OD 2410/0205 | 1 | $4.53 | |||
| 26 | CABLE TIE 120mm 204/07006 | 1 | $1.64 | |||
| 27 | HARNESS CLIP 123/05247 | 1 | $5.58 | |||
| 28 | CABLE TIE 190mm 826/01347 | 1 | $3.37 | |||
| 29 | '(W) (P) CLIP - WORMDRIVE 10/16mm(KANBAN 2201/0001 | 1 | $4.80 | |||
| 30 | TEMPERATURE SENSOR (A-1927) 320/09648 | 1 | $45.01 | |||
| 31 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 33 | SET SCREW M8x16 1315/0303Z | 1 | $2.03 | |||
| 34 | 11x50x5 shim plate 335/C8023 | 1 | $85.57 | |||
| 35 | SET SCREW M6x12 1315/0201Z | 1 | $0.62 | |||
| 37 | WASHER 3/8 SMALL PLAIN(KANBAN) 1410/0003Z | 1 | $1.04 | |||
| 38 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
Showing 1 to 34 of 34 parts
Related Assemblies
-
DIAG-L610-15-1-395232 L610-15-1 COOLING PACK INSTALLATION ASSEMBLY
View Diagram -
DIAG-V370-5-1-395232 V370-5-1 EGR SYSTEM VALVE, T4
View Diagram -
DIAG-E310-60-1-395232 E310-60-1 VALVES LOADER VALVE ASSEMBLY STANDARD HF SP
View Diagram
