Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | COMBINATION COOLING PACK 333/P7327 | 1 | $2,631.65 | |||
| 2 | FILL HOSE-RAD TO ENGINE 332/S7935 | 1 | $100.16 | |||
| 3 | RAD TOP HOSE - 2011 332/S4550 | 1 | $234.55 | |||
| 5 | FILLER NECK ASSEMBLY-RADI 334/L6199 | 1 | $172.64 | |||
| 6 | CAP 30/926114 160/01980 | 1 | $31.19 | |||
| 7 | '(W) (P) CLIP - WORMDRIVE 10/16mm(KANBAN 2201/0001 | 1 | $4.80 | |||
| 8 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 9 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 10 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 11 | WA MOUNTING FRAME 35D 332/U6364 | 1 | $567.82 | |||
| 12 | SPACER - 11x30x8 THK. 823/10312 | 1 | $28.69 | |||
| 13 | PRESSING-COOLER MOUNT 332/S4781 | 1 | $256.02 | |||
| 14 | GROMMET 231/83302 | 1 | $8.88 | |||
| 15 | RUBBER MOUNTING 331/20296 | 1 | $41.75 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 17 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
| 18 | RESILIENT MOUNT 141/00936 | 1 | $17.97 | |||
| 19 | BOLT M10x80 1315/3418D | 1 | $2.43 | |||
| 20 | WASHER PLAIN 7/16" 1411/0004D | 1 | $5.24 | |||
| 22 | SET SCREW M10x45 1315/0411D | 1 | $2.78 | |||
| 23 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 24 | WASHER 7/16 LARGE 1412/0004D | 1 | $2.75 | |||
| 25 | FAN MOTOR BUCHER 20/925619 333/S0356 | 1 | $814.46 | |||
| 26 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 27 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 28 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 30 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 31 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 32 | SPACER 231/05227 | 1 | $11.93 | |||
| 33 | FAN DRIVE COUPLING 332/S4681 | 1 | $135.54 | |||
| 35 | FAN 30/926523 | 1 | $541.40 | |||
| 36 | PRESSING-ANTI-RECIRC. TOP 331/49322 | 1 | $120.98 | |||
| 38 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 39 | SET SCREW M10x35 1315/0409D | 1 | $10.55 | |||
| 43 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 45 | vnbL SELF ADHESIVE 40mtr Roll 926/17000 | 1 | $24.82 | |||
| 46 | SEAL SOUNDPROOFING 331/26229 | 1 | $51.43 | |||
| 47 | FOAM STRIP 10 X 10 X 834 (P564) 334/W0810 332/T5814 | 1 | $2.44 | |||
| 48 | SEALING PROFILE 50M (ROLL) 926/19700 | 1 | $34.06 | |||
| 49 | OVERFLOW BOTTLE 331/56634 | 1 | $207.05 | |||
| 50 | SET-SCREW M_5 L-_20mm G_8.8 1315/0105D | 1 | $2.99 | |||
| 51 | WASHER M_5 PLAIN 1420/0005D | 1 | $2.99 | |||
| 52 | LOCKNUT M5 1370/0003D | 1 | $3.05 | |||
| 53 | PIPE AIR 4MM BORE 647/07000 | 1 | $172.39 | |||
| 55 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
| 56 | RAM PROTECTION PLATE LOXAM R&Y 332/S8431 | 1 | $45.70 | |||
| 57 | HOSE 1/2BSP 800mm 613/01200 | 1 | $127.77 | |||
| 58 | HOSE 1/2BSP 1630mm 613/80175 | 1 | $89.99 | |||
| 59 | HOSE 1/2BSP 1960mm 613/80146 | 1 | $100.45 | |||
| 61 | FAN SPACER 332/S4676 | 1 | $107.53 | |||
| 65 | ADAPTOR 1/2BSP X1/2 BSP BULKHEAD 816/90032 | 1 | $30.50 | |||
| 66 | HOSE RETAINING BRACKET 332/S6255 | 1 | $9.35 | |||
| 67 | FUEL HOSE RETAINER PRESSING 332/S7970 | 1 | $11.72 | |||
| 68 | ADAPTOR TEE M/M/F 816/90372 | 1 | $101.58 | |||
| 69 | ADAPTOR PLUG 1/2 NPTF 816/13281 | 1 | $6.56 | |||
| 71 | LOCTITE 242 250ML 4101/0204 | 1 | $142.28 | |||
| 72 | FOAM STRIP 440LG 332/T3830 | 1 | $6.53 | |||
| 73 | GROMMET 828/00199 | 1 | $9.75 | |||
| 74 | HOSE OVERFLOW ASSEMBLY 333/P1556 | 1 | $38.64 | |||
| 75 | CLIP WORMDRIVE 35/ 332/G4601 | 1 | $11.45 | |||
| 76 | 'HOSE CLAMP.CROSS OVER TUBE(KANBAN) (BR3 320/05529 320/05569 | 1 | $16.87 | |||
| 77 | CLIP WORMDRIVE WF 25/40mm 333/R7966 | 1 | $10.95 | |||
Showing 1 to 62 of 62 parts
Related Assemblies
-
DIAG-L610-5-1-397237 L610-5-1 COOLING PACK INSTALLATION ASSEMBLY H/D 3.5T
View Diagram -

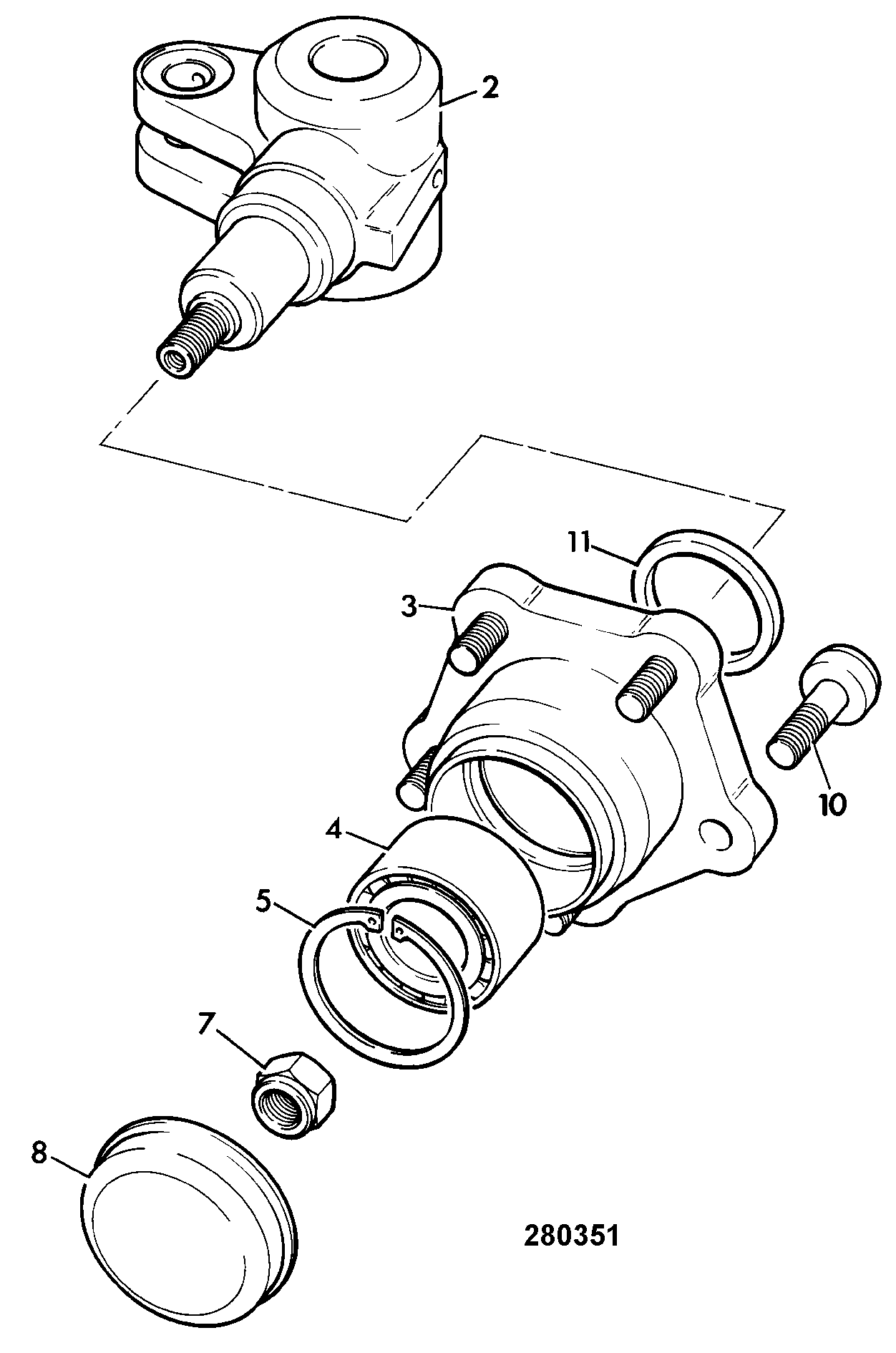

DIAG-F2-3-2-397237 F2-3-2 HUB AND COMPONENTS LH & RH axle 440/M4775
View Diagram -

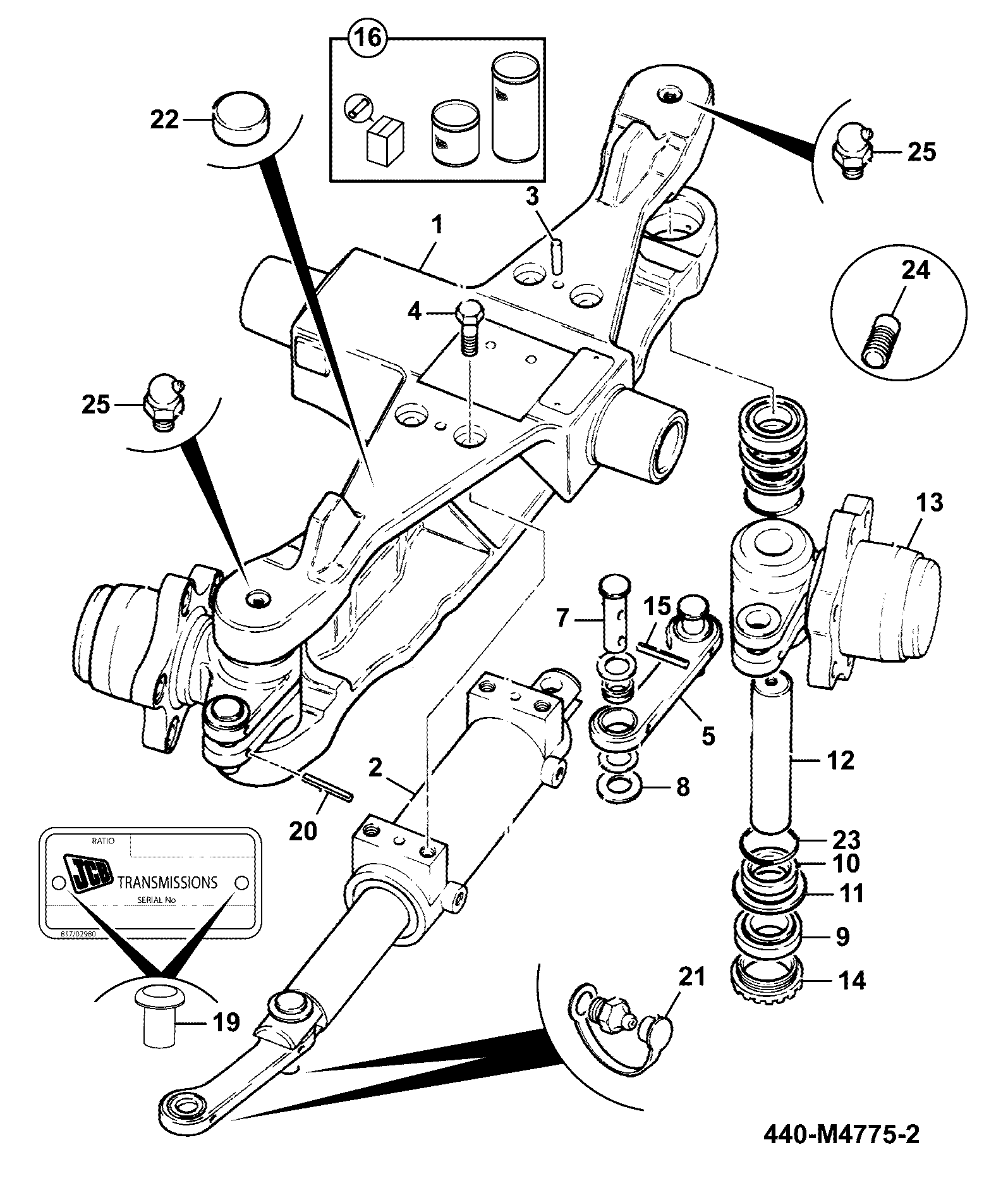

DIAG-F2-1-11-397237 F2-1-11 AXLE ASSEMBLY REAR 2WD, 440/M4775
View Diagram
