Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | WA SEAL PLATE 56KW+ 401/G6835 | 1 | $730.58 | |||

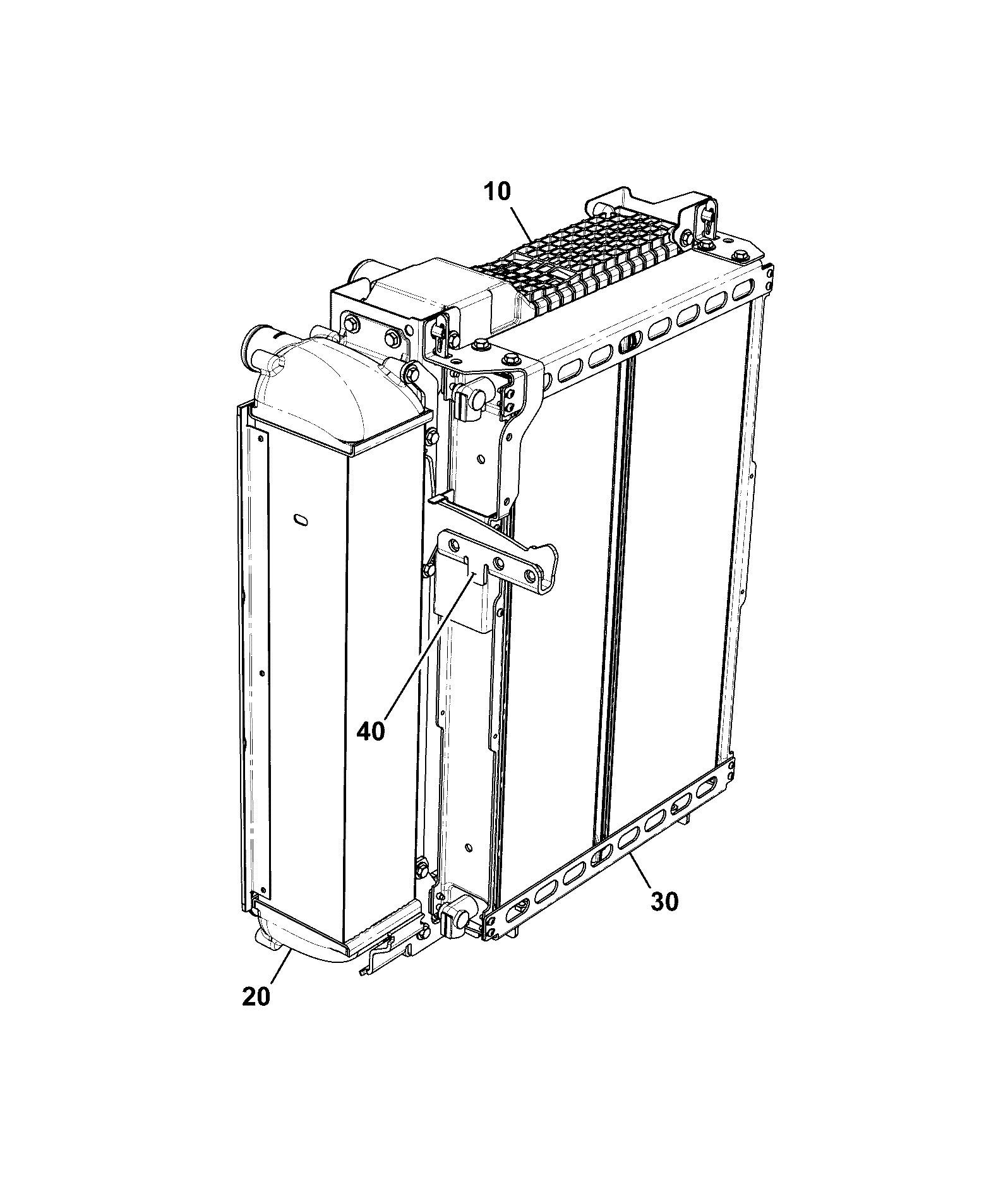

| 20 | ABI COOLING PACK - 93 & 1 401/F6779 | 1 | $4,730.96 | |||
| 40 | BOLT - M8X25 - NYLON PATC 1318/0307D | 1 | $4.83 | |||
| 50 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 60 | BOLT M8 x 100 -NYLONPATCH g8.8 1318/3320D | 1 | $17.73 | |||
| 70 | RAD SEAL 332/C9753 | 1 | $34.52 | |||
| 80 | RAD SEAL 332/C9765 | 1 | $17.67 | |||
| 90 | GROMMET - CAC PORT 332/C9024 | 1 | $7.04 | |||
| 100 | ANTI-RECIRCULATION SEAL 333/C5615 | 1 | $13.36 | |||
| 120 | GROMMET 2410/0111 | 1 | $7.31 | |||
| 130 | TIE MOUNT.CRADLE MNT. 826/01274 | 1 | $0.92 | |||
| 140 | CABLE TIE LOCKING 826/11447 | 1 | $0.38 | |||
| 150 | GROMMET 2410/0105 | 1 | $4.77 | |||
| 160 | GROMMET 2410/1110 | 1 | $1.78 | |||
| 170 | FOAM SEALING STRIP 345mm Long 332/C2978 | 1 | $8.94 | |||
| 180 | ADAPTOR G1/2A X 7/8 SAE (P564) 1620/2055 | 1 | $4.51 | |||
| 190 | ABI SEAL - ANTI RECIRC 335/F5265 | 1 | $193.60 | |||
| 210 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 220 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.22 | |||
| 230 | BOLT M_6 L-_16mm G-_8.8 FLANGED HEX 1317/3203D | 1 | $3.61 | |||
| 240 | FLANGE LOCK NUT M6 G8 1370/0109D | 1 | $1.20 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-L620-11-1-401637 L620-11-1 ABI COOLING PACK 93 & 108KW
View Diagram -

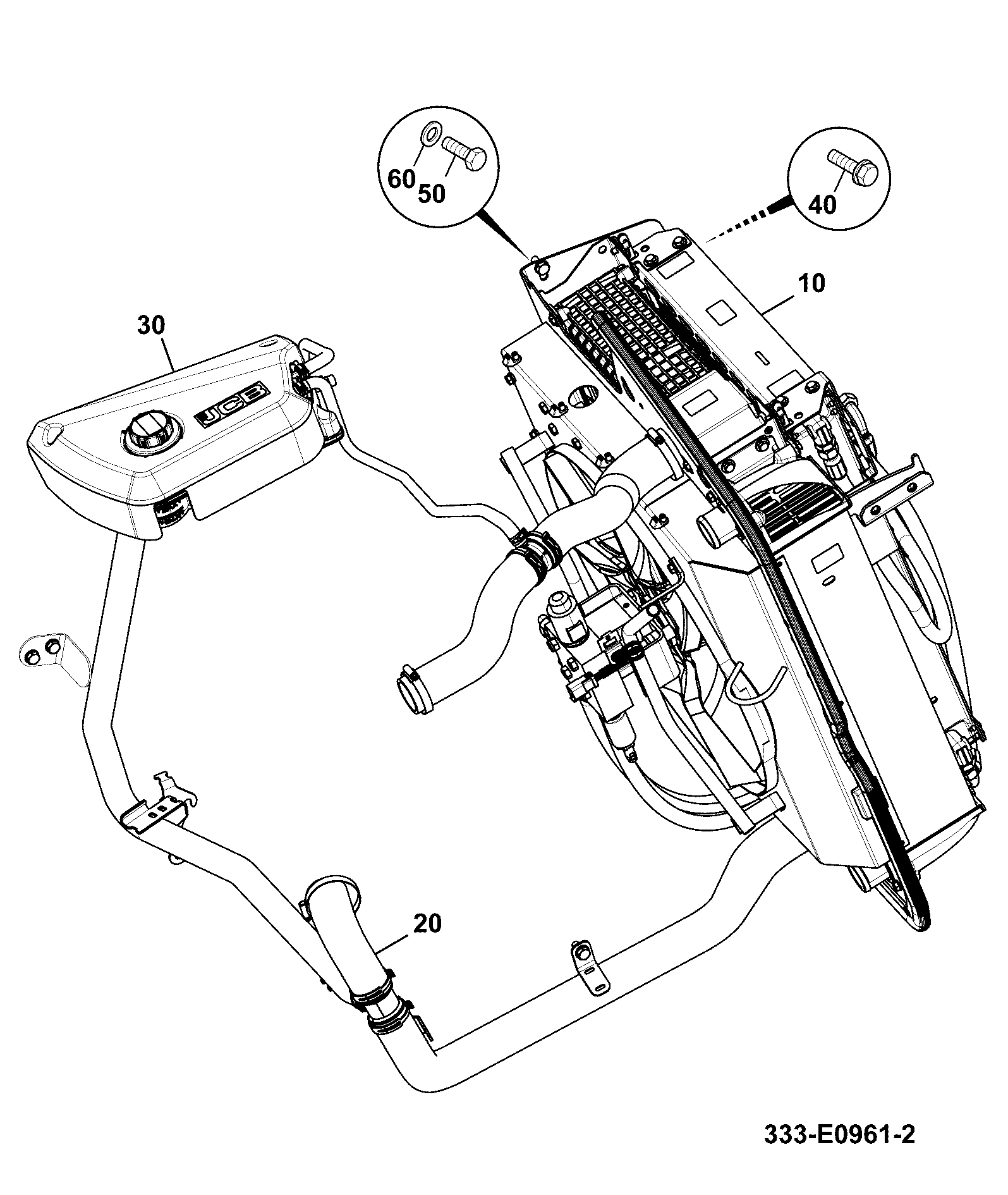

DIAG-L600-5-1-401637 L600-5-1 COOLING INSTALLATION ASSEMBLIES 93/108KW, TIER 4 FINAL
View Diagram -

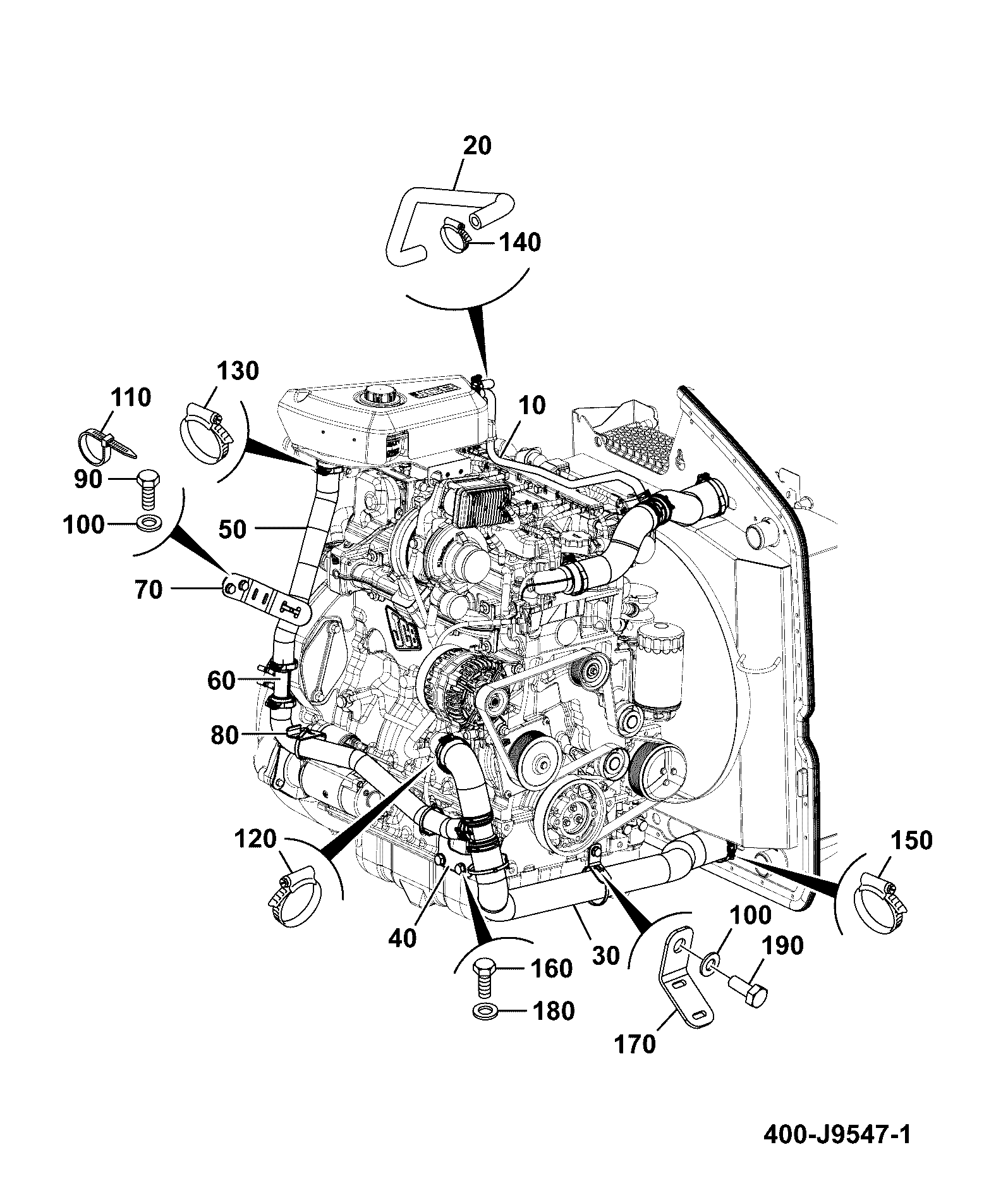

DIAG-L640-5-1-401637 L640-5-1 COOLANT CIRCUIT HOSES & FITTINGS 93/108KW , TIER 4 FINAL
View Diagram
