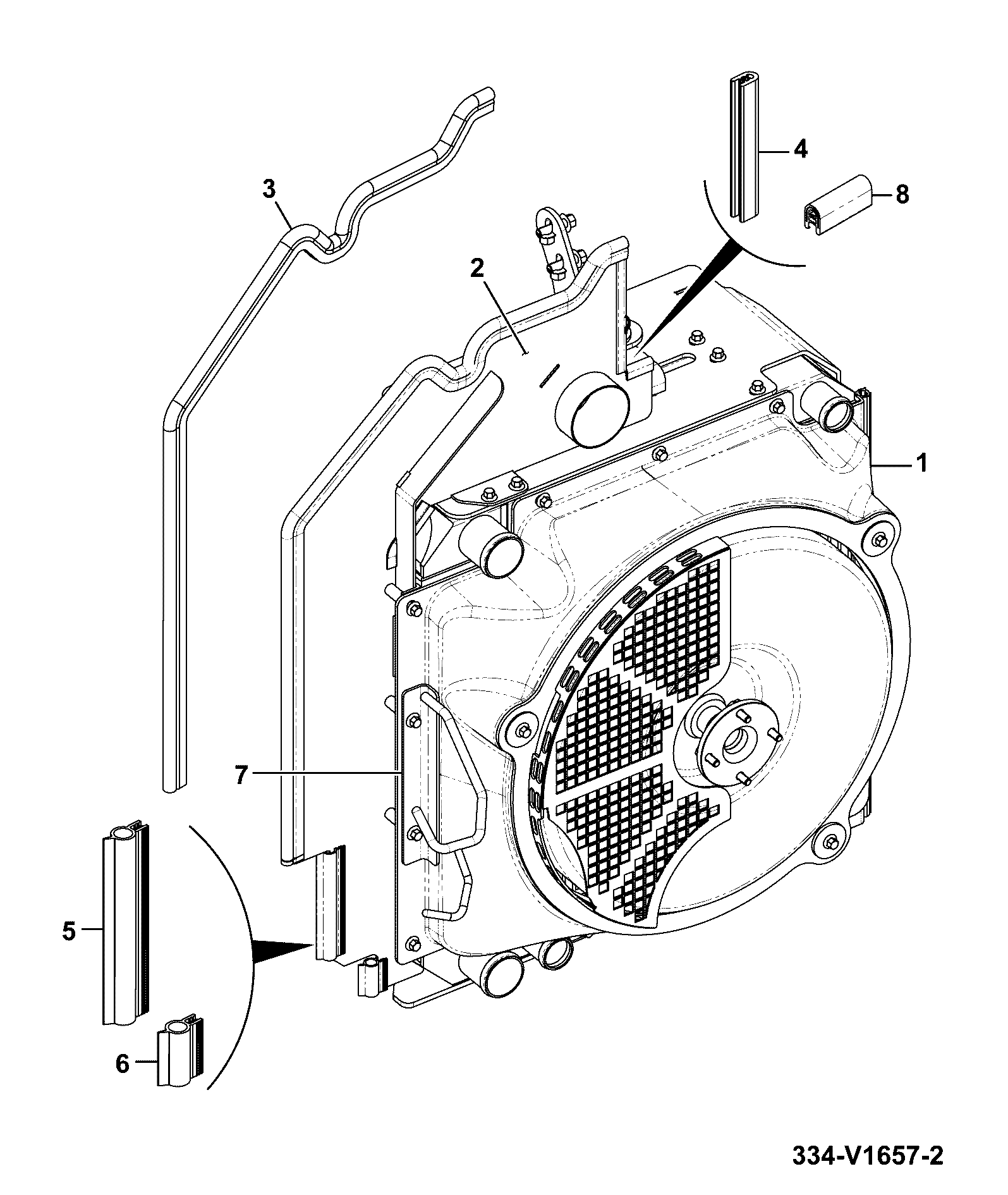

L600-50-1 COOLING INSTALLATION ASSEMBLIES WITH FAN GUARD, T4 Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	WA BULKHD USTR RECIRC CTS 335/F6051	1	AVAILABLE TO ORDER	$233.18	Quantity
4	RUBR EDGE STRIP 333/W3169	1	AVAILABLE TO ORDER	$45.31	Quantity
5	EDGE SEAL CTS PWPK 335/B6845	1	AVAILABLE TO ORDER	$2.56	Quantity
6	EDGE SEAL SHT CTS PW 335/B6846	1	AVAILABLE TO ORDER	$2.03	Quantity
8	EDGING STRIP (P561, P414, P83) 334/L7531 926/04813	1	AVAILABLE TO ORDER	$7.78	Quantity

Showing 1 to 5 of 5 parts
