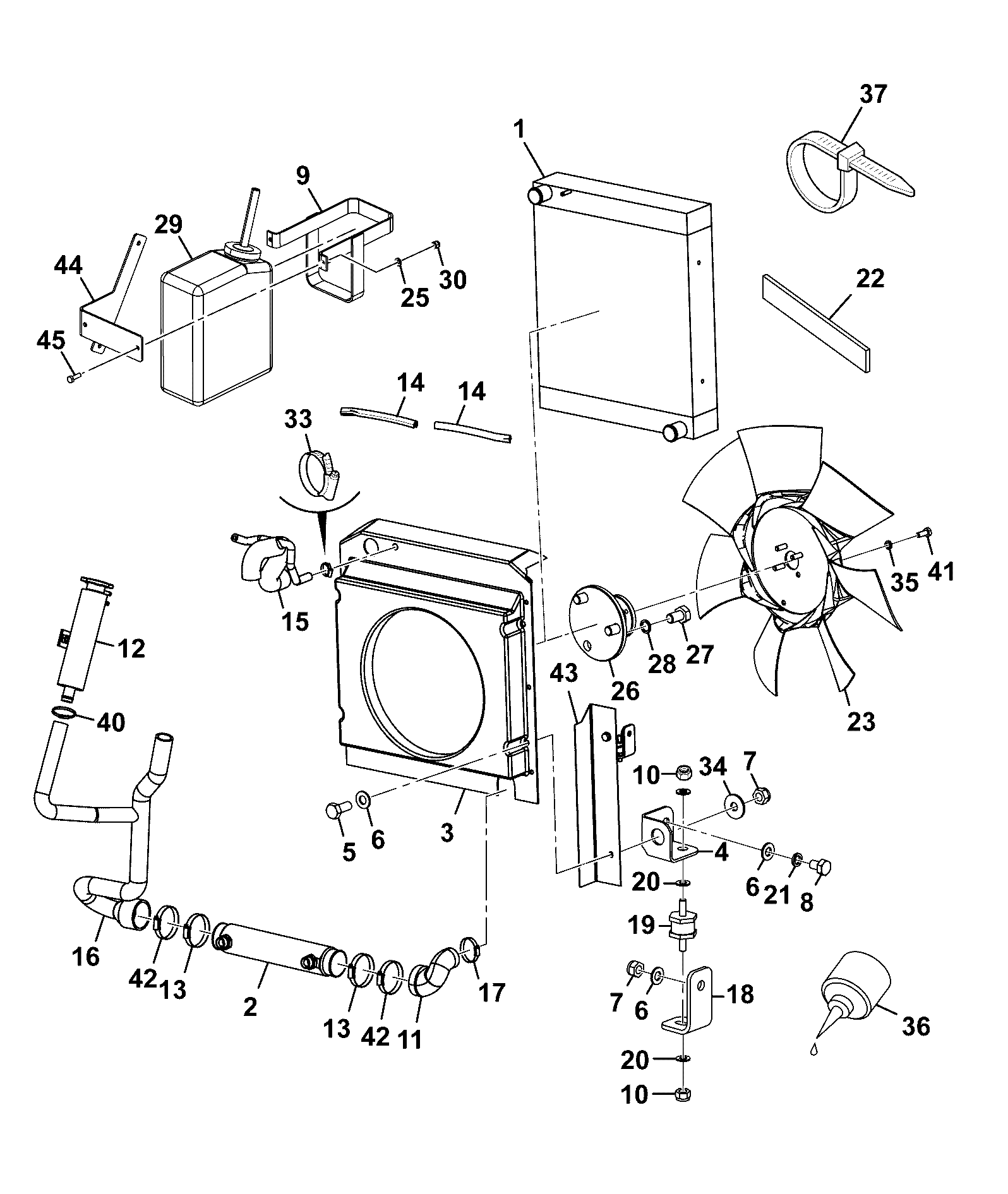

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | 1CX RADIATOR STD FLOW 30/927088 | 1 | $1,468.77 | |||
| 2 | Cooler oil 30/925636 | 1 | $1,050.09 | |||
| 3 | FAN COWL 346/00310 | 1 | $217.02 | |||
| 6 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 7 | BRACKET 260/26100 | 1 | $138.52 | |||
| 8 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 9 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 10 | STRIP, EDGING (METRE) 332/L9926 926/09501 | 1 | $22.80 | |||
| 11 | TOP HOSE 834/11170 | 1 | $145.62 | |||
| 12 | COOLER HOSE HF 332/V8926 | 1 | $59.24 | |||
| 13 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $0.00 | |||
| 15 | G.A coolant filler 290/72073 | 1 | $311.80 | |||
| 17 | SPRING-WASHER M10 1425/0008D | 1 | $0.44 | |||
| 19 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.00 | |||
| 20 | FAN 14" PUSHER 30/925942 | 1 | $240.52 | |||
| 21 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 22 | FAN SPACER 829/31303 | 1 | $141.46 | |||
| 23 | SET SCREW M12x20 1315/0505D | 1 | $1.20 | |||
| 24 | SPRING-WASHER M12 1425/0009Z 1425/0009D | 1 | $0.85 | |||
| 26 | EXPAN'S.TANK ASSY.[13787] 121/59800 | 1 | $0.00 | |||
| 27 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 29 | CLIP - WORMDRIVE 35/50mm 2201/0008 | 1 | $5.41 | |||
| 30 | '(W) (P) CLIP - WORMDRIVE 10/16mm(KANBAN 2201/0001 | 1 | $0.00 | |||
| 31 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.14 | |||
| 32 | WASHER LOCK M6 823/10399 | 1 | $2.72 | |||
| 33 | (W) (P) SET SCREW M10x16(RE INSTATE) 1315/0403D | 1 | $1.16 | |||
| 35 | ADAPTOR G3/4A-1-1/16UNF(M 1620/0010 1620/2059 | 1 | $14.30 | |||
| 37 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 38 | PLAIN WASHER M10 823/00326 | 1 | $1.73 | |||
| 39 | WA RADIATOR MNTG BRACKET 335/05762 | 1 | $25.99 | |||
| 40 | RADIATOR MNTG BRACKET 331/36135 | 1 | $14.65 | |||
| 41 | ANTI VIBRATION MOUNT 331/31026 | 1 | $26.49 | |||
| 42 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.00 | |||
| 43 | 331/52778 331/52778 | 1 | $27.23 | |||
| 44 | BLANKING PLATE 331/52777 | 1 | $237.55 | |||
| 45 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 46 | CLIP - WORMDRIVE 90/110mm(KANBAN) 2201/0016 | 1 | $0.00 | |||
| 47 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 50 | WA 1CX T3 HF COOLER HOSE BRKT 332/T2051 | 1 | $28.69 | |||
| 60 | BOTTOM HOSE HF 332/W3828 | 1 | $90.85 | |||
Showing 1 to 40 of 40 parts
Related Assemblies
-
DIAG-L600-1-5-394195 L600-1-5 COOLING INSTALLATION ASSEMBLIES
View Diagram -
DIAG-L600-5-1-394195 L600-5-1 COOLING INSTALLATION ASSEMBLIES FILTER BOTTLE ABI
View Diagram -
DIAG-L600-1-1-394195 L600-1-1 COOLING INSTALLATION ASSEMBLIES
View Diagram
