Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | HOSE -8 BSP LP 1485mm B 335/B4809 | 1 | $124.92 | |||
| 4 | PLUG BLANKING 5/8 BSP M 816/90913 | 1 | $15.33 | |||
| 5 | P-CLIP, 25MM DIA. 821/10297 | 1 | $12.52 | |||
| 6 | TAPTITE SCREW M8x16 332/W0175 | 1 | $1.67 | |||
| 7 | STAUFF CLAMP BRKT 335/B1891 | 1 | $15.20 | |||
| 8 | SUMP DRAIN BANJO BOLT M22 335/B0970 | 1 | $161.52 | |||
| 9 | M22 COPPER WASHER 333/U0159 | 1 | $18.90 | |||
| 10 | SET SCREW M8x20 Black 1315/0305 | 1 | $0.48 | |||
| 11 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 14 | M22x8 THK COPPER WASHER 335/B7299 | 1 | $70.34 | |||
| 15 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
Showing 1 to 13 of 13 parts
Related Assemblies
-
DIAG-L510-1-1-404963 L510-1-1 SUMP DRAIN ENGINE OIL DRAIN
View Diagram -
DIAG-L610-1-1-404963 L610-1-1 COOLING PACK INSTALLATION STANDARD CORE
View Diagram -

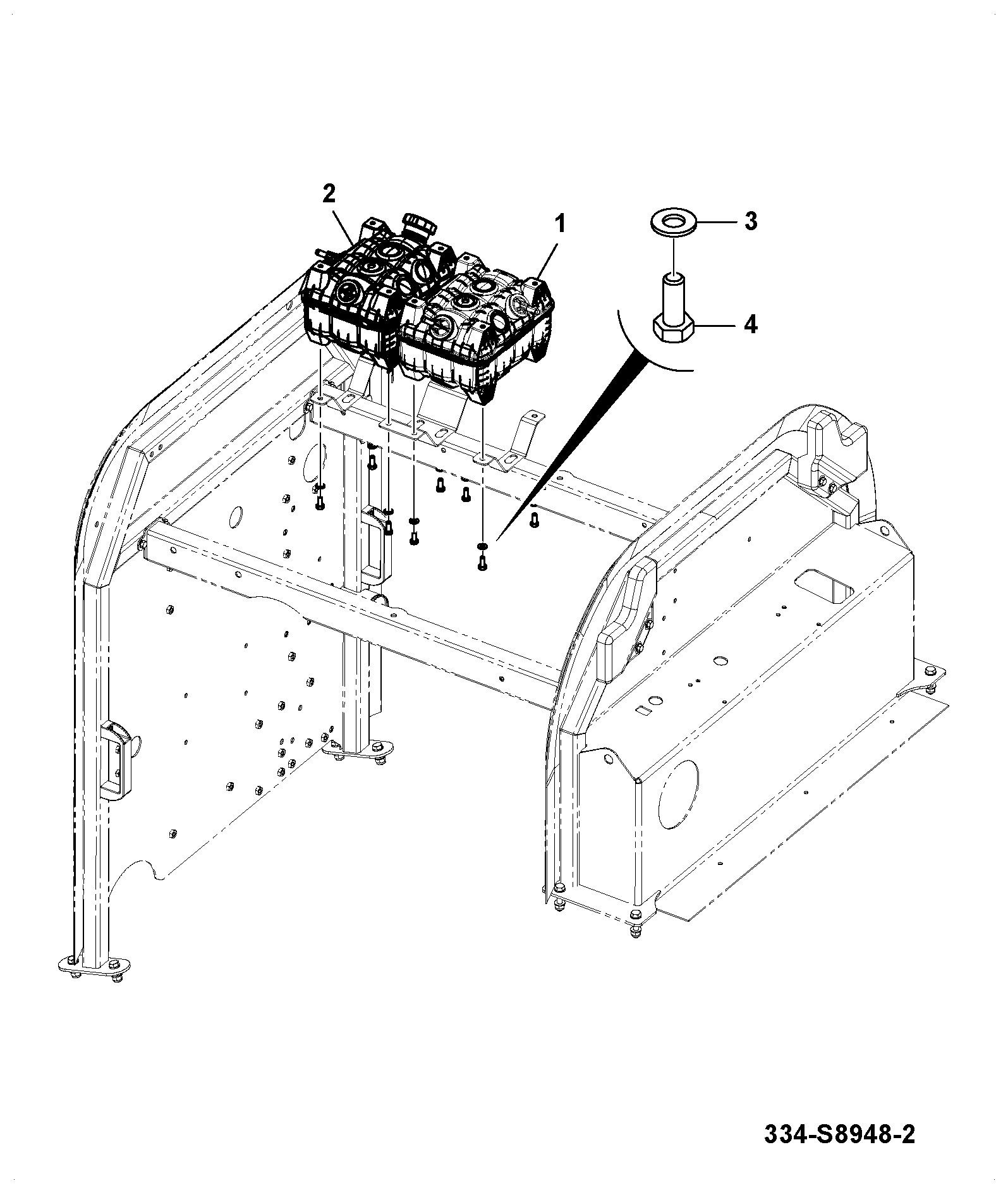

DIAG-L610-5-1-404963 L610-5-1 COOLING PACK INSTALLATION HEADER TANKS
View Diagram
