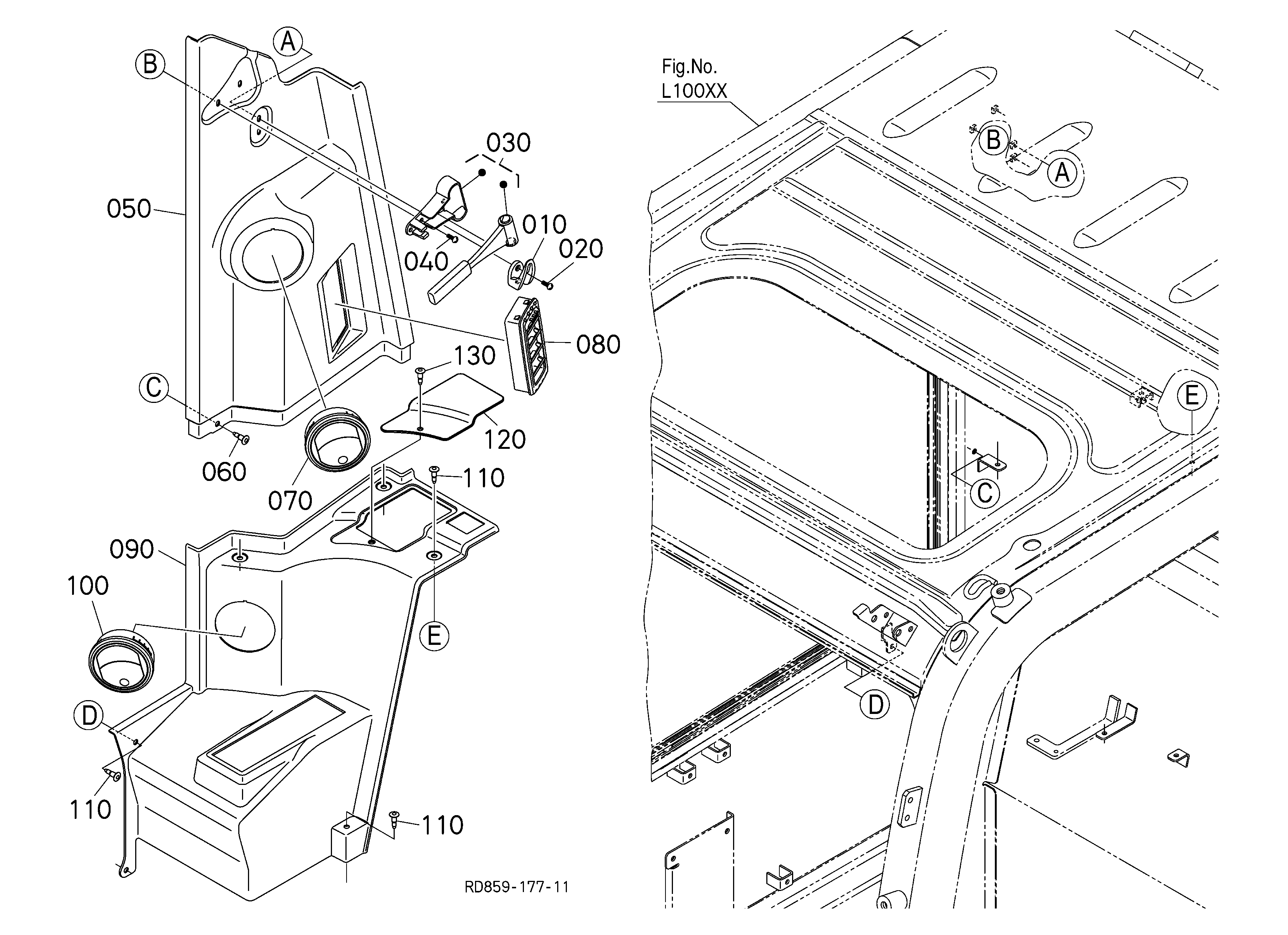

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COVER RD859-49670 | 1 | $43.67 | |||
| 020 | NUT(SPRING M3) RD859-49770 | 1 | $21.51 | |||
| 030 | HINGE(B-1100-4) RD859-49760 | 1 | $18.83 | |||
| 040 | SCREW,CSK-HD 03056-50310 | 1 | $0.23 | |||
| 050 | CUSHION(SEAT COVER) RD579-38210 | 1 | $1.35 | |||
| 060 | SCREW W/ WASHER- 03034-50620 | 1 | $1.07 | |||
| 070 | RIVET(24R5,B) RD579-49420 | 1 | $4.36 | |||
| 080 | COVER,KIT(A,SEAT RD858-91320 | 1 | $138.53 | |||
| 085 | COVER,KIT(B,SEAT SUP RD858-91422 | 1 | $142.19 | |||
| 090 | ASSY LOCK, CYLIN RC411-43543 RC411-43544 | 1 | $62.47 | |||
| 100 | COVER, LOCK ASSY RC411-43550 | 1 | $17.28 | |||
| 110 | PLATE RC411-43580 | 1 | $25.85 | |||
| 120 | SCREW RC411-43600 | 1 | $25.00 | |||
| 140 | COVER(3,SEAT SUP RD859-49690 | 1 | $25.34 | |||
| 190 | SCREW,W. WASH. 03034-70620 | 1 | $1.34 | |||
| 200 | COVER RD859-49740 | 1 | $30.36 | |||
| 210 | CUSHION(SEAT COV RD859-38210 | 1 | $1.50 | |||
| 230 | Starter Key RC461-53930 | 1 | $13.43 | |||
| 240 | LABEL RC488-57370 | 1 | $7.34 | |||
| 245 | LABEL RC488-58370 | 1 | $7.09 | |||
| 250 | LABEL(PROPOSITIO TC650-65970 | 1 | $8.25 | |||
| 260 | LABEL(SILICA,WARNING 3B791-98700 3B791-98702 Discontinued | 1 | $8.18 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-
DIAG-L46800-194837 L46800 CABIN (REAR COVER RIGHT)
View Diagram -

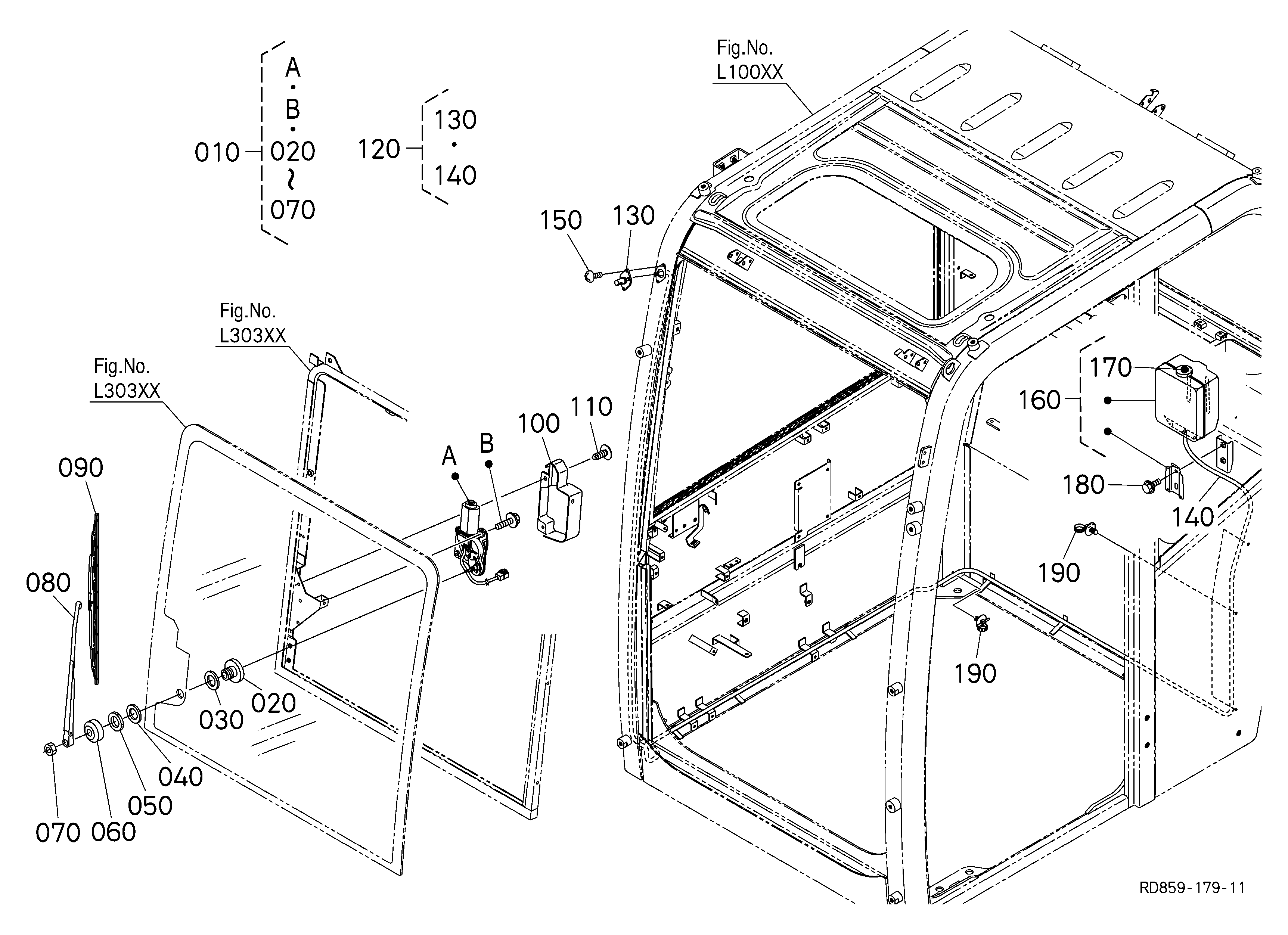

DIAG-L50000-194837 L50000 CABIN (WIPER MOTOR)
View Diagram -

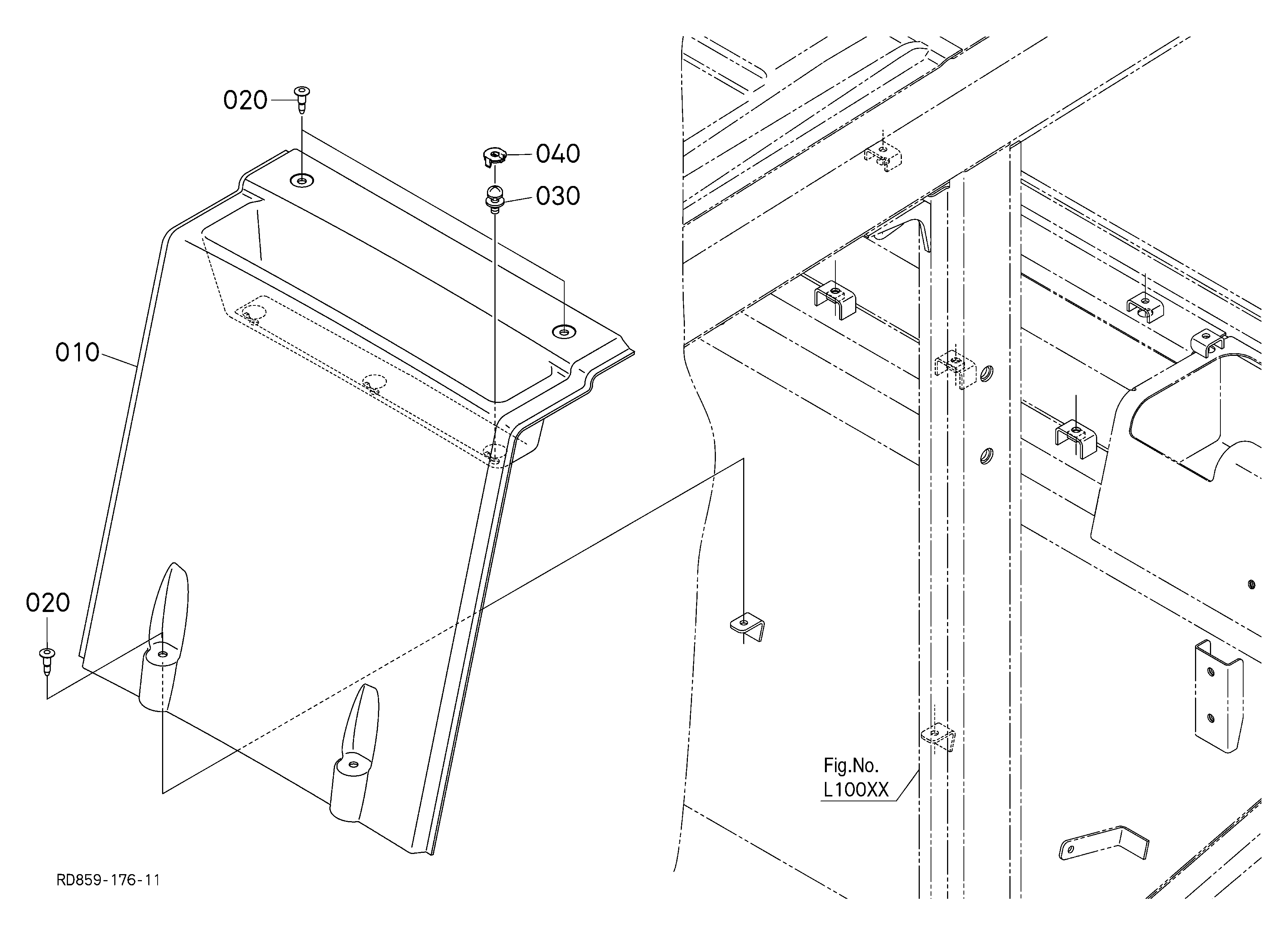

DIAG-L46700-194837 L46700 CABIN (REAR COVER CENTER)
