Kubota SVL97-3C L41002 BONNET (UPPER) Parts Diagram
Exploded-view parts diagram "L41002 BONNET (UPPER)" for the Kubota SVL97-3C. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BONNET,KIT(UPPER,LAB V0651-92512 V0651-92513 | 1 | $782.19 | |||
| 020 | LABEL V0511-57630 V1311-57630 | 1 | $9.00 | |||
| 030 | LABEL(WARNING,RADIAT V0651-57442 | 1 | $3.74 | |||
| 040 | COVER(FAN) V0651-45770 V0651-45772 | 1 | $791.00 | |||
| 050 | Bolt - M10 x 1.25 x 20mm 01135-51020 | 1 | $1.99 | |||
| 060 | SNAP PIN 05525-51200 | 1 | $1.48 | |||
| 070 | DAMPER(SPRING) V0651-45880 | 1 | $135.64 | |||
| 080 | PIN, JOINT 05122-50818 | 1 | $2.26 | |||
| 090 | PIN(DAMPER) V0651-45760 | 1 | $20.90 | |||
| 100 | Snap Pin 52300-34120 | 1 | $3.94 | |||
| 110 | CUSHION, SEAT 48100-51540 | 1 | $8.02 | |||
| 120 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 130 | SPONGE(BONNET,UPPER,R V0651-45850 V0651-45852 | 1 | $14.48 | |||
| 140 | SPONGE(BONNET,UPPER,L V0651-45860 V0651-45862 | 1 | $14.48 | |||
| 150 | SPONGE(BONNET,UPPER, V0651-45872 | 1 | $15.55 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-L32202-366465 L32202 COVER (METER/SERVICE PORT/DRINK HOLDER)
View Diagram -

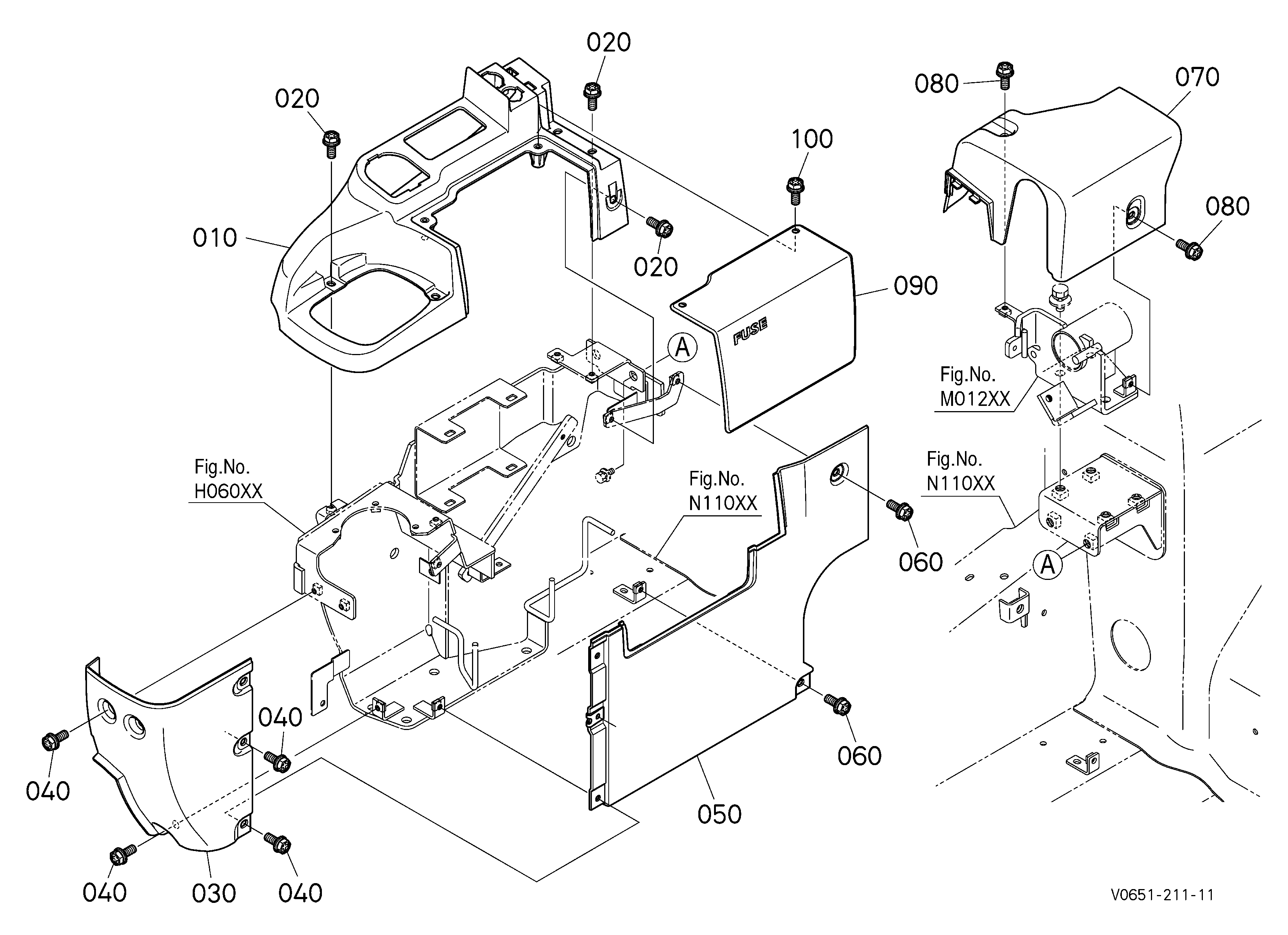

DIAG-L32002-366465 L32002 COVER (RIGHT)
View Diagram -

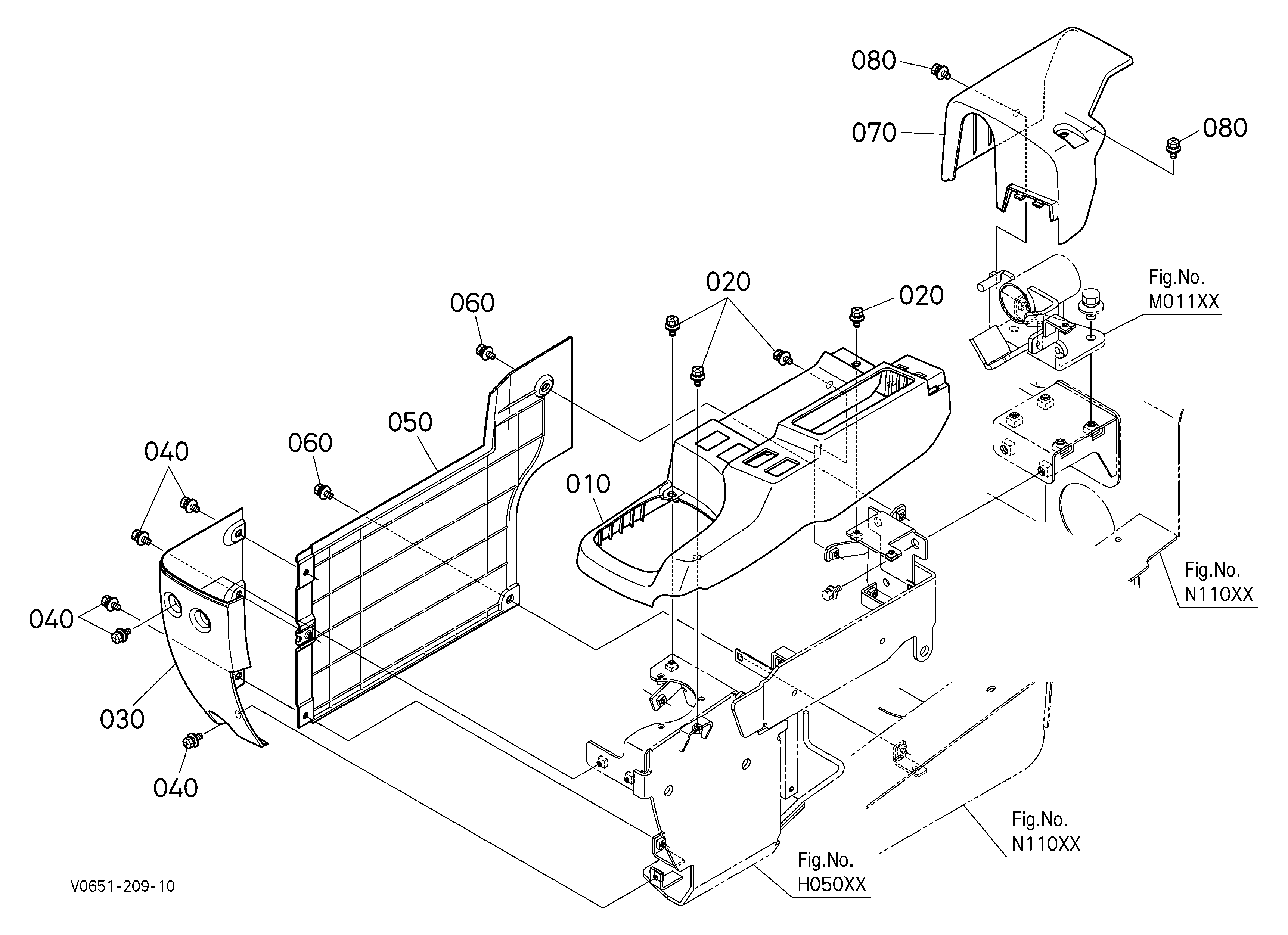

DIAG-L31002-366465 L31002 COVER (LEFT)
