Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT,BONNET(A) R2411-91330 R2411-91332 | 1 | $1,955.69 | |||
| 011 | LABEL R2401-57582 | 1 | $16.86 | |||
| 012 | LABEL R2401-57590 | 1 | $16.86 | |||
| 013 | LABEL R2401-57570 | 1 | $12.83 | |||
| 014 | LABEL R2401-57260 | 1 | $12.83 | |||
| 040 | HANDLE 31351-29440 34670-29440 | 1 | $34.23 | |||
| 050 | Plain Washer (Flat Washer) 04013-50140 | 1 | $0.60 | |||
| 060 | NUT 02174-50140 | 1 | $1.51 | |||
| 060 | NUT 02176-60140 02176-70140 | 1 | $1.48 | |||
| 070 | Bolt 01135-51020 | 1 | $1.99 | |||
| 080 | FRAME R1411-43120 | 1 | $1,685.27 | |||
| 090 | BRACKET, BONNET R1411-43140 | 1 | $180.74 | |||
| 100 | Bolt Fastener 01130-51030 01133-51030 | 1 | $2.54 | |||
| 110 | CUSHION, SEAT 48100-51540 | 1 | $8.02 | |||
| 120 | Replacement Nut 02112-60080 02112-50080 | 1 | $0.60 | |||
| 130 | BRACKET R1401-43270 Discontinued | 1 | $35.06 | |||
| 140 | SHIM R1401-43290 | 1 | $5.64 | |||
| 150 | BOLT 01025-50816 01125-50825 | 1 | $1.77 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

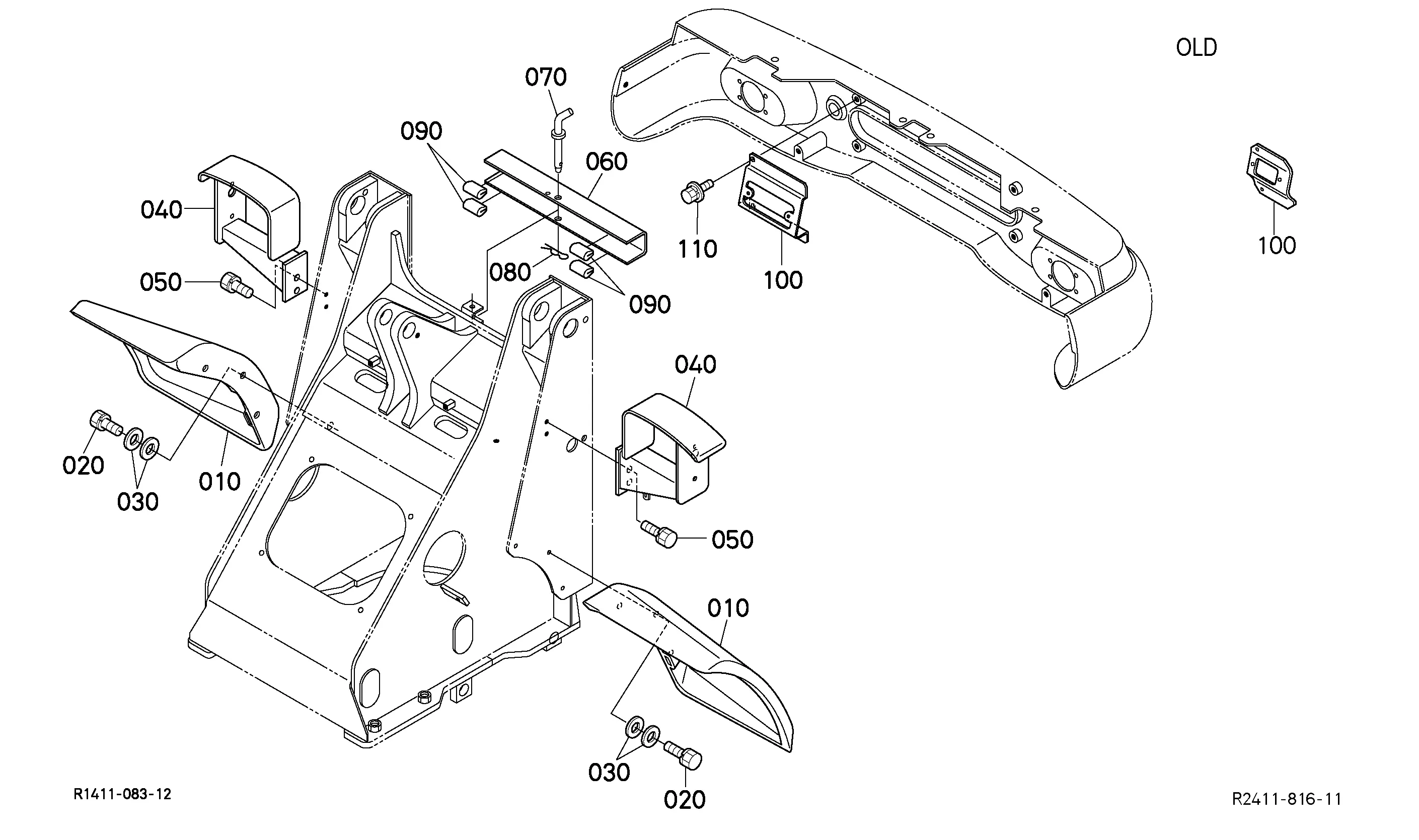

DIAG-L30400-85990 L30400 FENDER
