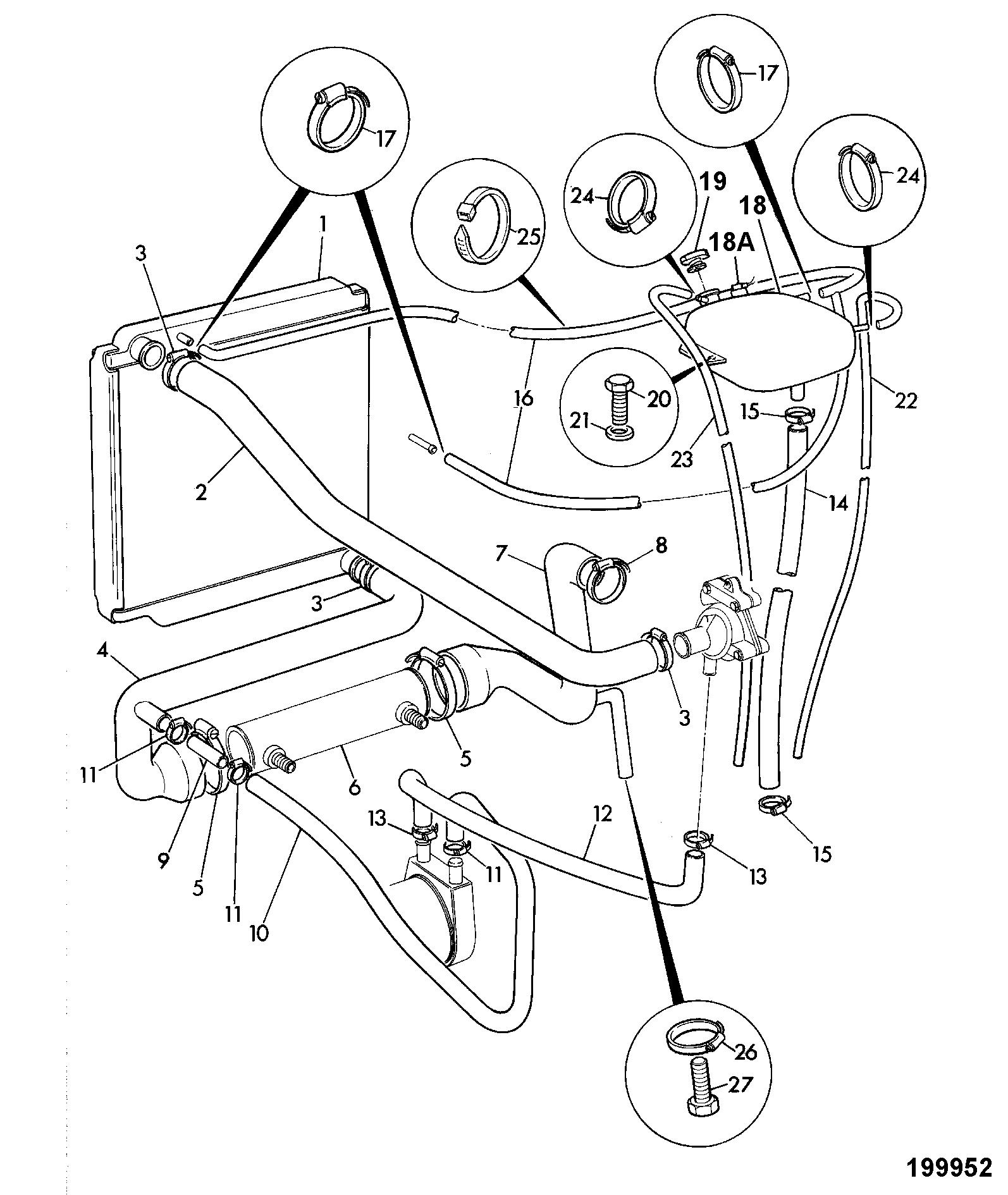

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RADIATOR 30/914300 | 1 | $3,498.14 | |||
| 3 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 4 | HOSE BOTTOM 834/00552 | 1 | $164.12 | |||
| 5 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 7 | HOSE COOLER 834/00551 | 1 | $125.79 | |||
| 9 | HOSE CONNECTOR (P564) RE-INST 141/00953 650/10166 | 1 | $15.21 | |||
| 11 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $5.10 | |||
| 12 | HOSE 02/900341 | 1 | $85.70 | |||
| 14 | Hose 50M Coil 648/02400 | 1 | $460.56 | |||
| 15 | W) CLIP - WORMDRIVE 20/32mm 2201/0006 | 1 | $5.14 | |||
| 17 | '(W) (P) CLIP - WORMDRIVE 12/22mm(KANBAN 2201/0003 | 1 | $5.72 | |||
| 18 | TANK-EXPANSION 246/26700 | 1 | $455.82 | |||
| 19 | CAP 02/900222 | 1 | $79.08 | |||
| 20 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 21 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 22 | HOSE 648/21300 | 1 | $518.35 | |||
| 23 | VACUUM HOSE 9.5MM 648/21500 | 1 | $32.82 | |||
| 26 | SET SCREW M16x40 1315/0710Z | 1 | $8.92 | |||
| 28 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.95 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-
DIAG-L4-4-3-394175 L4-4-3 RADIATOR & HOSES
View Diagram -
DIAG-L5-1-1-394175 L5-1-1 SUMP, OIL
View Diagram -

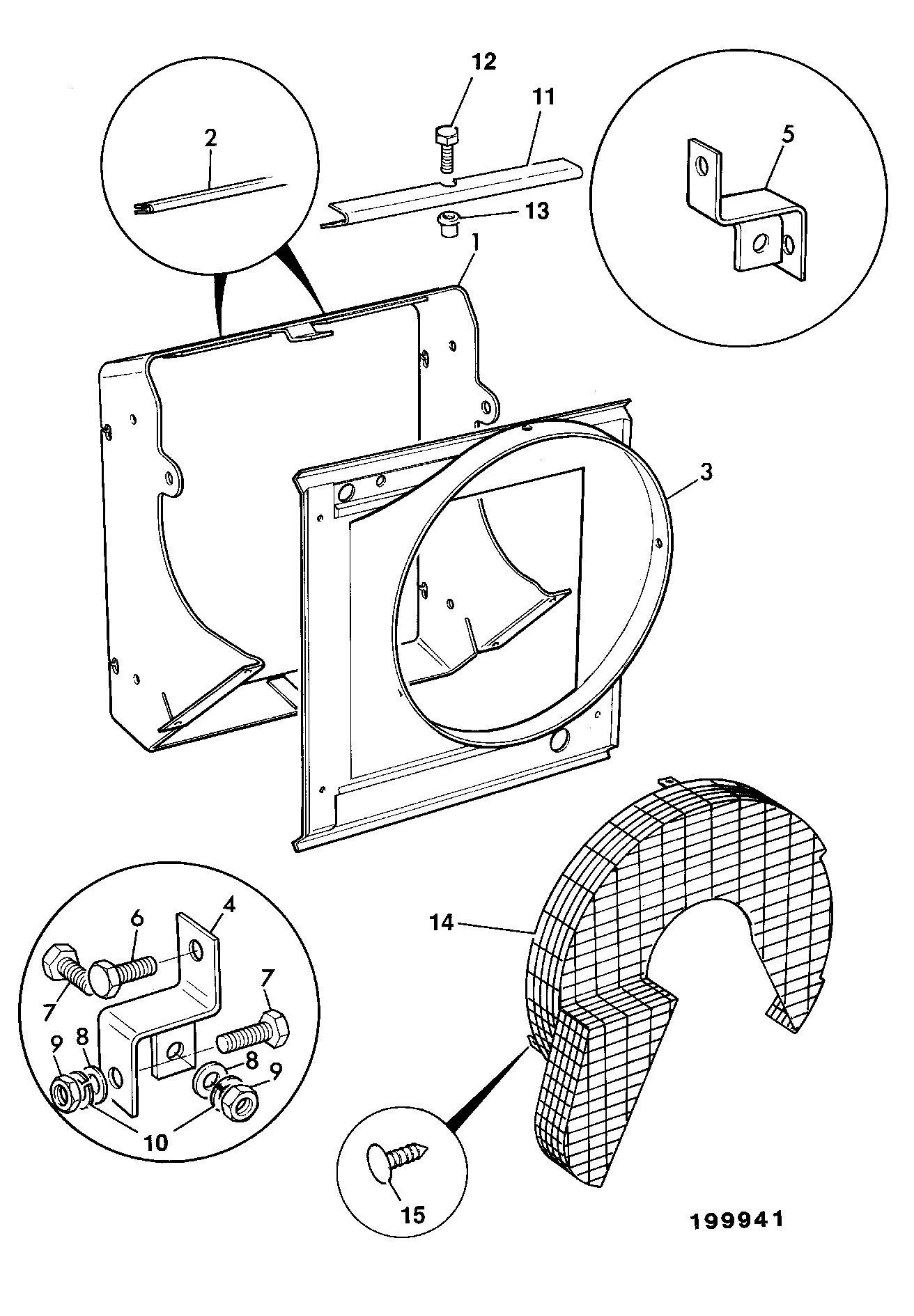

DIAG-L4-3-3-394175 L4-3-3 RADIATOR FITTINGS & MOUNTINGS
