Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| GUARD FAN 232/41305 | 1 | $1,365.12 | ||||
| SET SCREW M5x16 1315/0103Z | 1 | $1.92 | ||||
| 2 | PLATE COWL MOUNTIN 237/05200 | 1 | $338.76 | |||
| 3 | FAN COWL 237/05300 | 1 | $726.83 | |||
| 4 | (W) (P) SEALING STRIP. 926/14500 | 1 | $31.20 | |||
| 5 | SET-SCREW M_8 L-20mm 1315/0305Z | 1 | $0.56 | |||
| 6 | WASHER 5/16 LARGE 1413/0002Z | 1 | $0.95 | |||
| 7 | WASHER M_8 SPRING 1425/0007Z | 1 | $1.22 | |||
| 8 | REF: RB6885 OPEN GROMMET 828/00328 | 1 | $42.13 | |||
| 9 | GROMMET 231/83302 | 1 | $8.88 | |||
| 10 | WASHER RUBBER 823/00521 | 1 | $16.69 | |||
| 11 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 12 | BRACKET TOP RADIAT 237/05100 | 1 | $106.80 | |||
| 13 | BOTTLE 232/70104 | 1 | $250.74 | |||
| 14 | TUBE EXPANSION 232/61410 | 1 | $86.53 | |||
| 15 | SET SCREW M5X40 1315/0110Z | 1 | $1.29 | |||
| 16 | WASHER M_5 PLAIN(KANBAN) 1420/0005 1420/0005Z | 1 | $0.65 | |||
| 17 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 18 | WASHER M_5 SPRING 1425/0005Z | 1 | $0.81 | |||
| 20 | HOSE BAND 826/01749 | 1 | $2.28 | |||
| 21 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 22 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 23 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 24 | TOP MOUNT BLOCK 232/83208 | 1 | $25.37 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

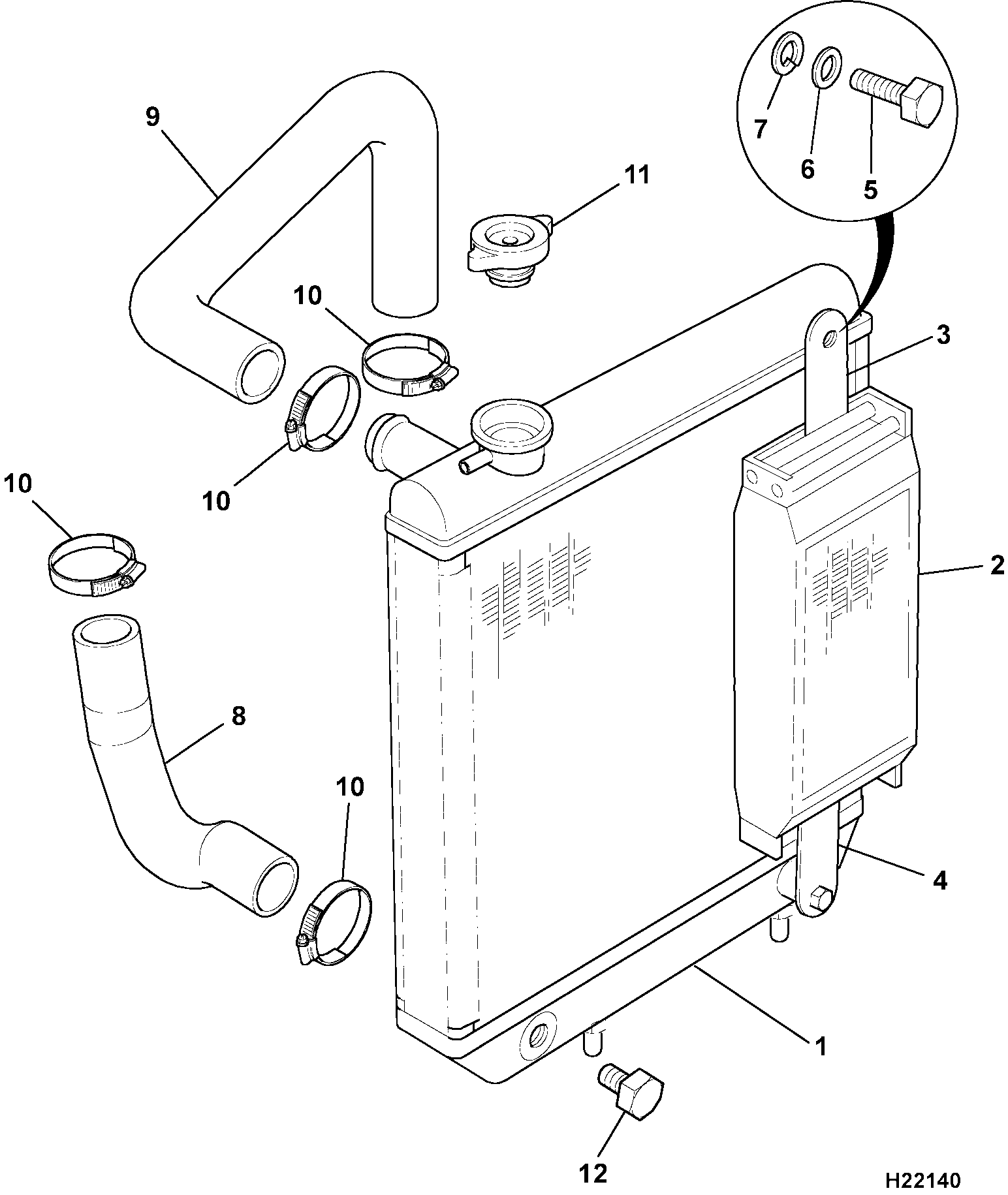

DIAG-L4-4-4-398093 L4-4-4 RADIATOR, OIL COOLER AND HOSES
View Diagram -

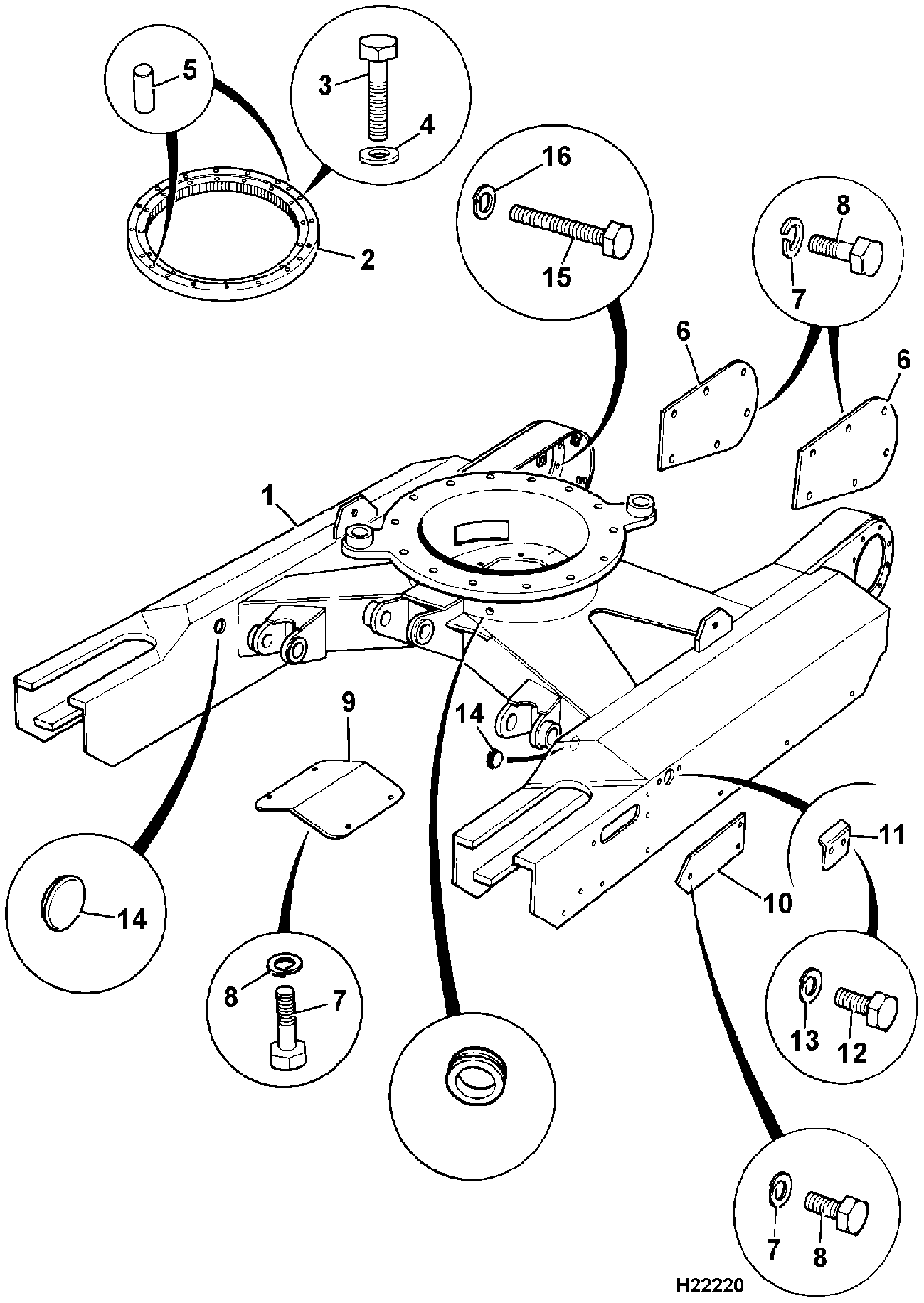

DIAG-J1-1-3-398093 J1-1-3 UNDERCARRIAGE
View Diagram -

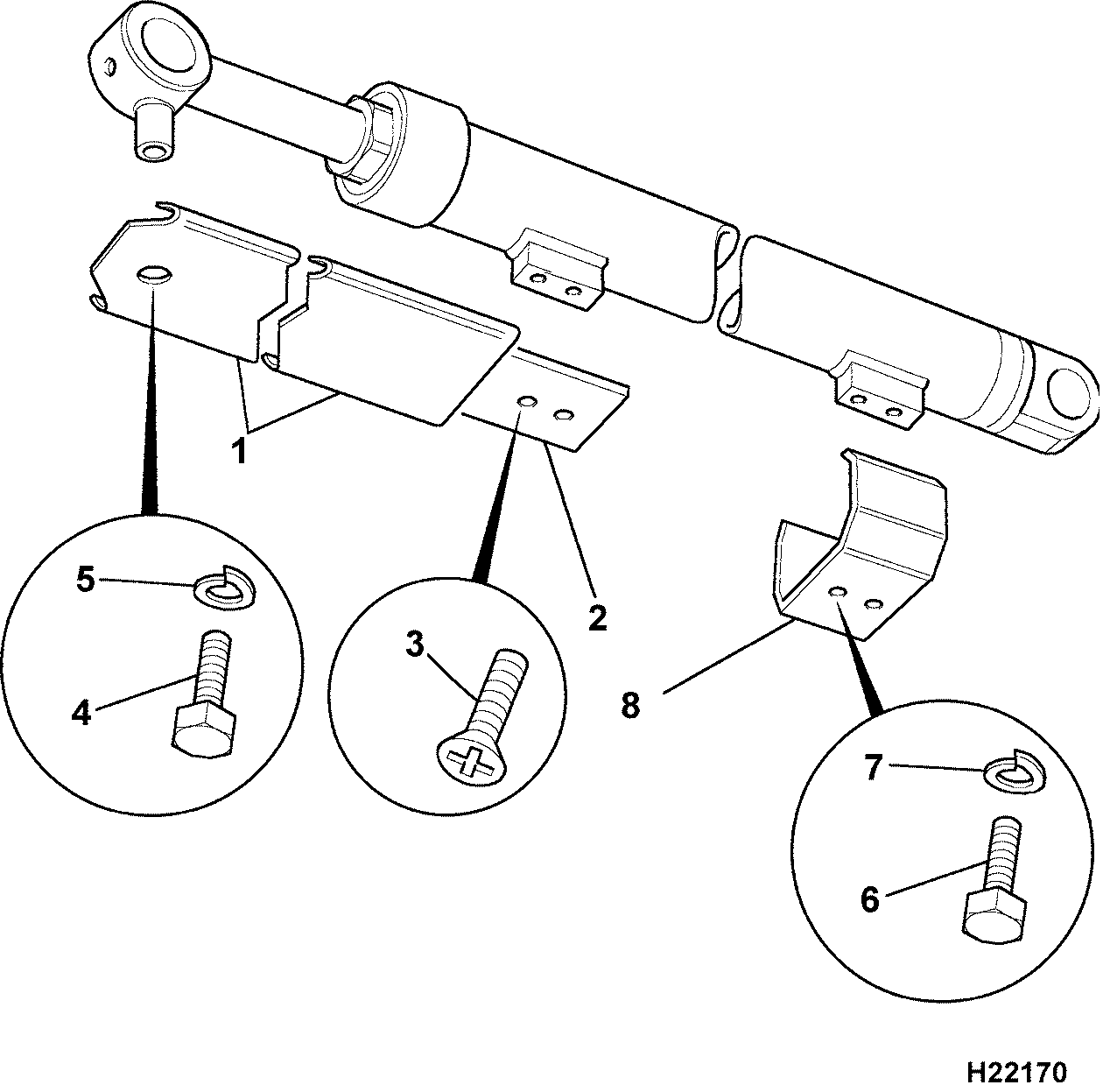

DIAG-E4-6-4-398093 E4-6-4 PROTECTION PLATES BOOM RAM
View Diagram
