Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY, GLASS (FRO RC411-46103 RC411-46106 | 1 | $1,102.65 | |||
| 020 | GLASS, FRONT UPP RC411-46112 | 1 | $894.04 | |||
| 030 | SEAL- KX91-3- KX RC411-47410 | 1 | $59.78 | |||
| 050 | ROLLER RC411-46140 | 1 | $55.10 | |||
| 060 | BOLT 01121-50818 01125-50818 | 1 | $1.21 | |||
| 060 | BOLT 01125-60818 01125-70818 | 1 | $1.28 | |||
| 070 | ASSY LATCH, LH ( RC411-46182 RC411-46183 | 1 | $289.65 | |||
| 080 | GRIP, LATCH RC411-46200 | 1 | $9.00 | |||
| 085 | LEVER RC431-46210 | 1 | $19.98 | |||
| 090 | Bolt 01121-50820 01125-70820 | 1 | $1.21 | |||
| 130 | LATCH, RH ASSEMB RC411-46192 RC411-46193 | 1 | $292.55 | |||
| 150 | Bolt Fastener 01125-60816 01125-70816 | 1 | $0.99 | |||
| 160 | GUARD, LOWER RC411-46133 | 1 | $67.38 | |||
| 165 | BOLT RC431-46860 | 1 | $1.35 | |||
| 180 | GRIP 68311-46570 | 1 | $76.99 | |||
| 190 | SCREW, WITH WASH 03034-60612 03034-50612 | 1 | $4.85 | |||
| 200 | STOPPER SIDE RC411-46290 | 1 | $18.05 | |||
| 210 | STOPPER RUBBER RC411-46300 | 1 | $16.37 | |||
| 220 | Screw with Washer 03034-50616 | 1 | $0.36 | |||
| 230 | STOPPER RUBBER RC411-46310 | 1 | $16.37 | |||
| 250 | STOPPER RD118-47350 | 1 | $35.24 | |||
| 260 | NUT, LOCK 02012-50100 | 1 | $1.36 | |||
| 270 | STOPPER BOLT RC411-46320 | 1 | $57.86 | |||
| 280 | Nut 60009-61553 02054-50080 | 1 | $2.01 | |||
| 290 | ASSY GLASS, F/LO RC411-46330 | 1 | $503.88 | |||
| 300 | SEAL- KX121-3 RC411-46350 | 1 | $59.78 | |||
| 310 | SCREW, WITH WASH RC411-46260 | 1 | $3.16 | |||
| 310 | SCREW,M5 RC461-46260 | 1 | $2.44 | |||
| 320 | GASKET RC461-46270 | 1 | $6.96 | |||
| 320 | GASKET RC411-46270 | 1 | $7.46 | |||
| 330 | NUT RC461-46280 | 1 | $78.01 | |||
| 330 | NUT RC411-46280 | 1 | $18.74 | |||
| 335 | WASHER, THICK 04015-50050 | 1 | $0.36 | |||
| 340 | GRIP, LATCH RC411-46250 | 1 | $3.20 | |||
| 350 | SCREW, W/WASHER 03034-50410 | 1 | $0.35 | |||
| 360 | RUBBER, FRONT ST RC411-46380 | 1 | $20.15 | |||
| 370 | TRIM, FRONT UPPE RC411-46360 | 1 | $250.62 | |||
| 380 | TRIM, FRONT LOWE RC411-46370 | 1 | $131.53 | |||
Showing 1 to 38 of 38 parts
Related Assemblies
-
DIAG-L30001-85184 L30001 CABIN (WINDOW)
View Diagram -
DIAG-L40001-85184 L40001 CABIN (TRIM)
View Diagram -

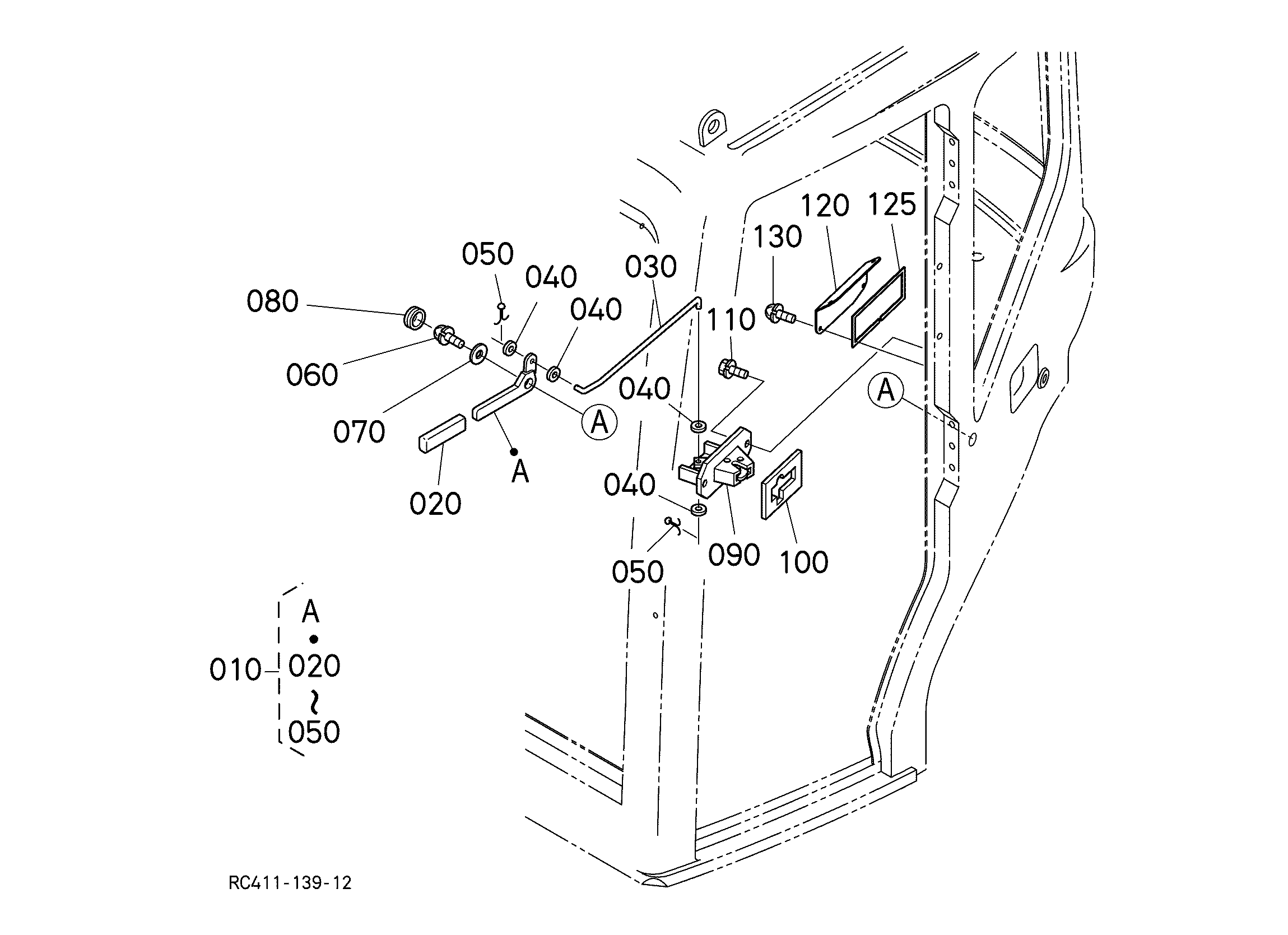

DIAG-L20102-85184 L20102 CABIN (DOOR LOCK)
