L300-115-1 INDUCTION SYSTEM INSTALLATION ASSEMBLIES ,AIR FILTER ASSY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	VALVE vacuum dump 332/C4909	1	AVAILABLE TO ORDER	$34.53	Quantity
2	Cover Assembly 335/D3059	1	AVAILABLE TO ORDER	$164.47	Quantity
3	Filter air 335/D3063 02/971664	1	2 IN STOCK	$40.36	Quantity
4	Element safety 335/D3064 353/03979	1	1 IN STOCK	$73.06	Quantity
5	indicator 335/D3068	1	AVAILABLE TO ORDER	$24.06	Quantity

Showing 1 to 5 of 5 parts

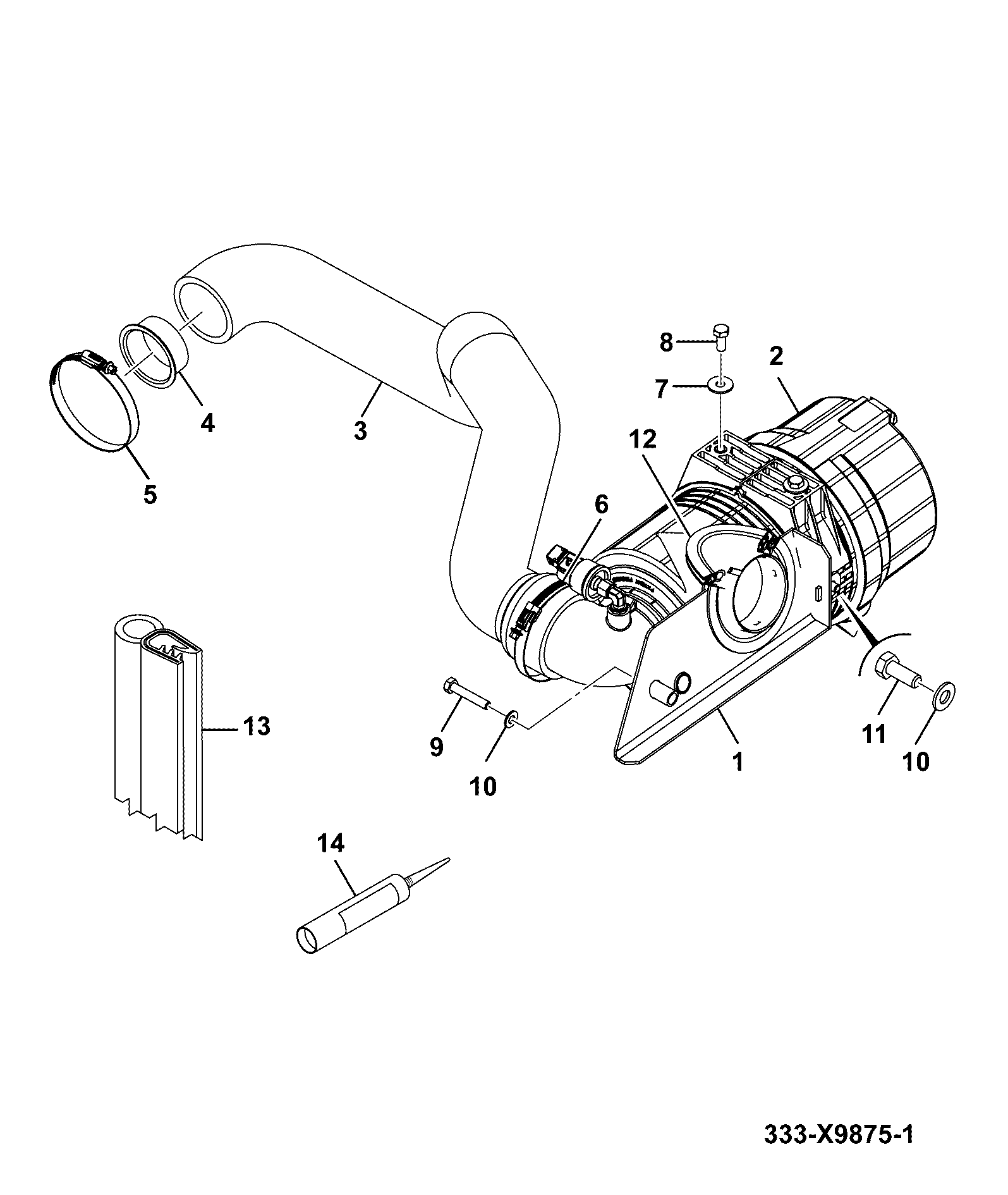

DIAG-L300-101-1-399653 L300-101-1 INDUCTION SYSTEM INSTALLATION ASSEMBLIES INDUCTION
View Diagram

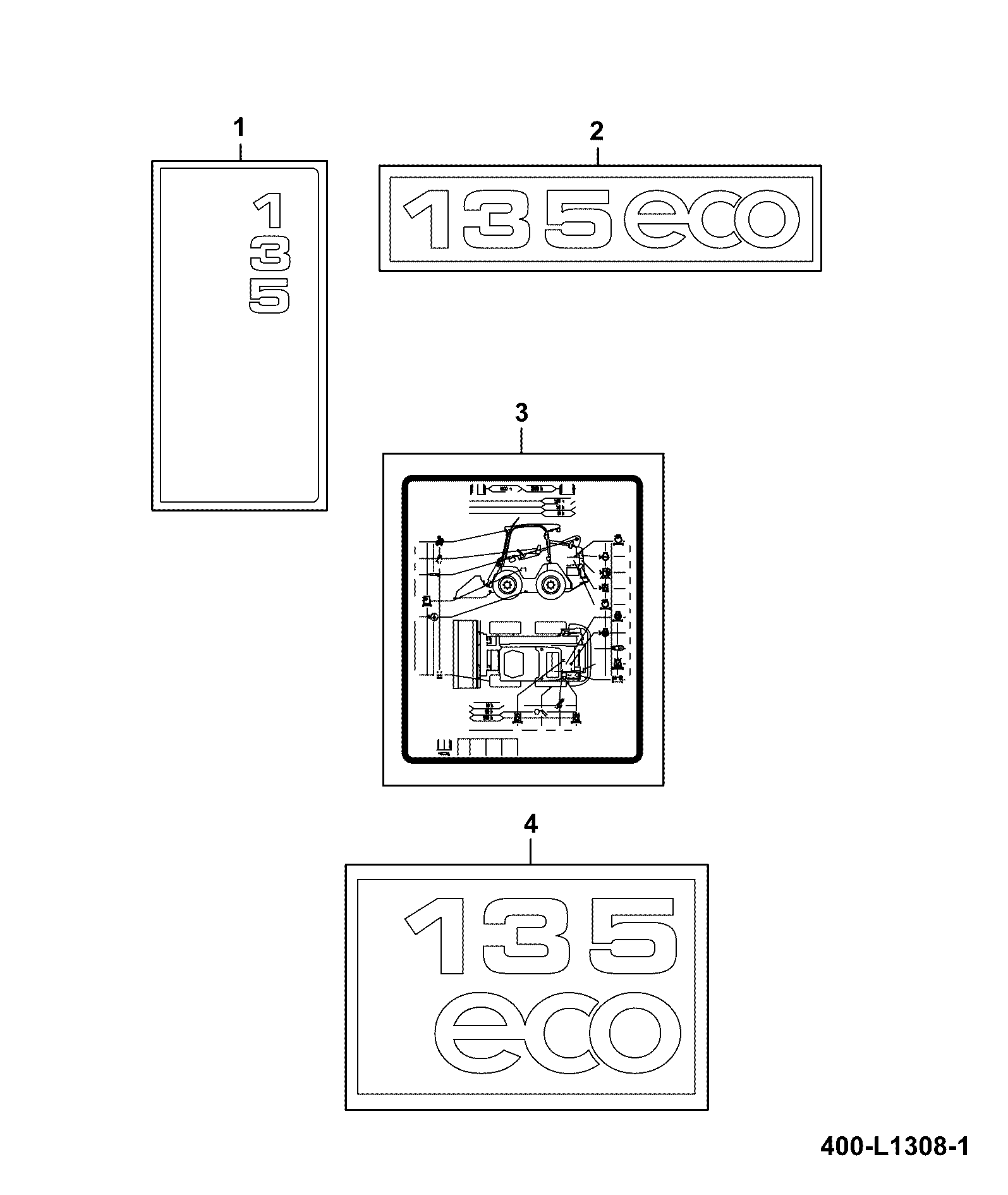

DIAG-B510-101-1-399653 B510-101-1 DECALS MACHINE IDENTIFICATION ,NOMENCLATURE 135 T4
View Diagram

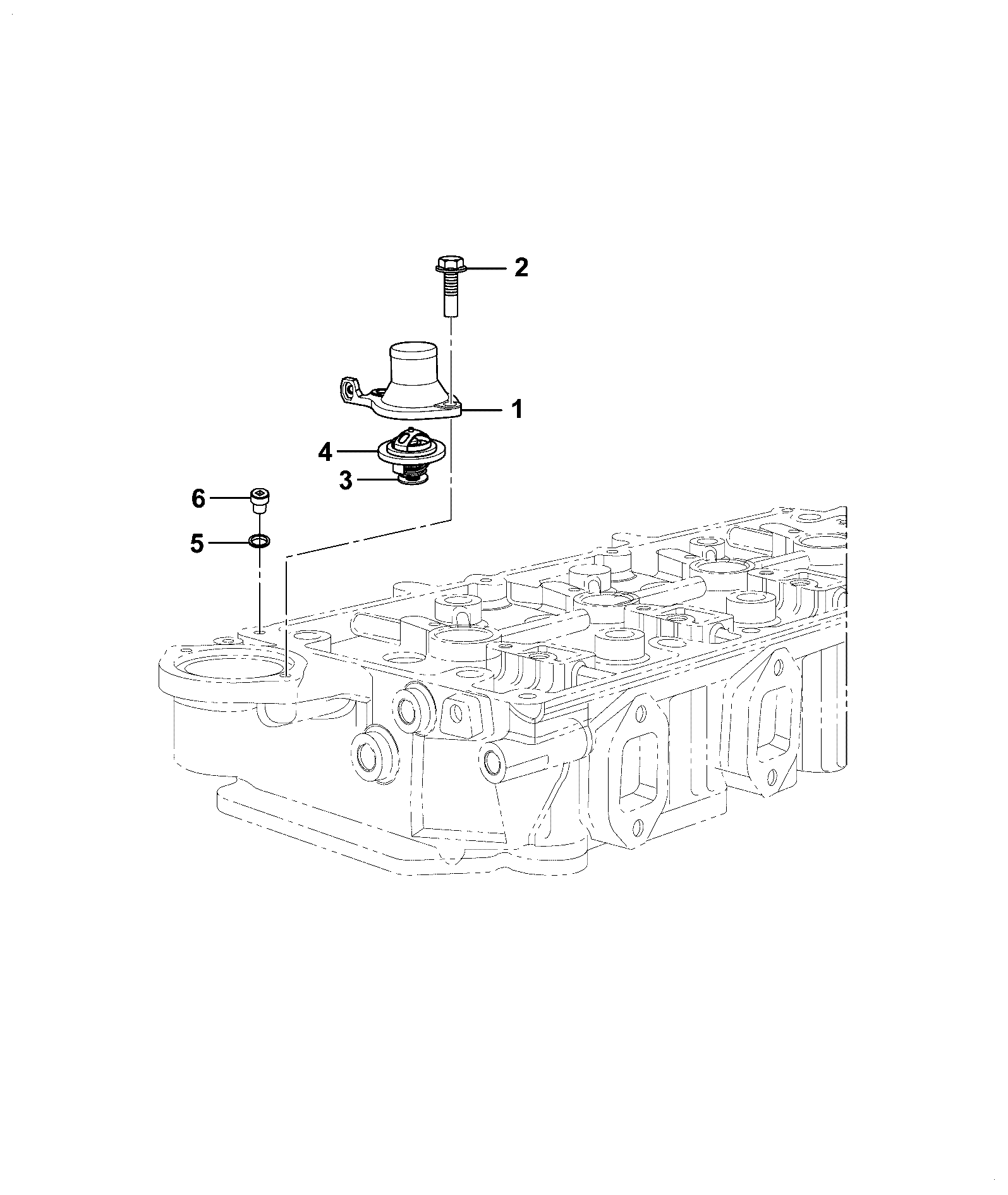

DIAG-Y420-3-1-399652 Y420-3-1 THERMOSTAT - WATER ASSEMBLY
