Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

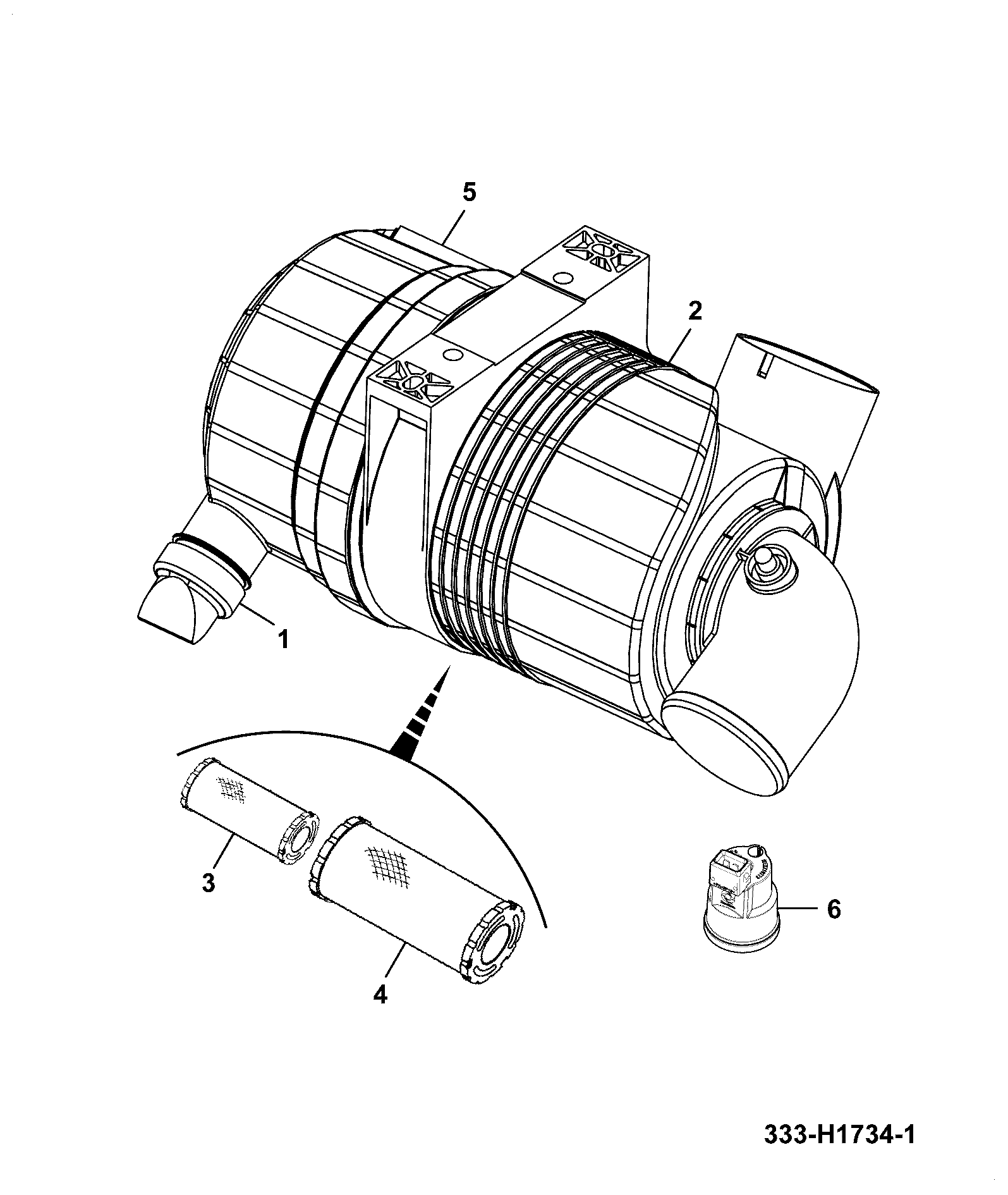

| 10 | AIR FILTER 333/H1734 | 1 | $519.13 | |||
| 20 | AIRFILTER BONNET SEAL 334/D8252 | 1 | $29.54 | |||
| 30 | WA AIR FILTER MOUNT 334/E1040 | 1 | $195.55 | |||
| 40 | BOLT M_8 L-_35mm G-_8.8 FLANGED HEX 1317/3309D | 1 | $12.31 | |||
| 50 | LOCK-NUT M_8 FLANGE 1370/0209D | 1 | $0.27 | |||
| 60 | BOLT FLANGED HEX M10 x 25 G8.8(KANBAN) 1317/3407D | 1 | $1.64 | |||
| 70 | INDUCTION HOSE 335/E8089 | 1 | $149.46 | |||
| 80 | INLET HOSE SUPPORT PIPE 333/U7847 | 1 | $111.49 | |||
| 90 | WORM DRIVE SPRING CLIP 90 2206/9011 | 1 | $9.38 | |||
| 100 | Worm Drive Spring Clip 80-100mm 2206/8010 | 1 | $13.90 | |||
| 110 | WA INDUCTION HOSE BRACE 334/E1160 | 1 | $42.65 | |||
| 120 | CABLE TIE 540mm 334/E3628 | 1 | $1.67 | |||
| 130 | BOLT M_6 L-_20mm G-_8.8 FLANGED HEX 1317/3205D | 1 | $0.41 | |||
| 140 | FLANGE LOCK NUT M6 G8 1370/0109D | 1 | $1.20 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-L290-1-1-400169 L290-1-1 OTHER EXHAUST SYSTEM PARTS MOUNTING
View Diagram -
DIAG-L310-1-1-400169 L310-1-1 INDUCTION FILTER T4f
View Diagram -

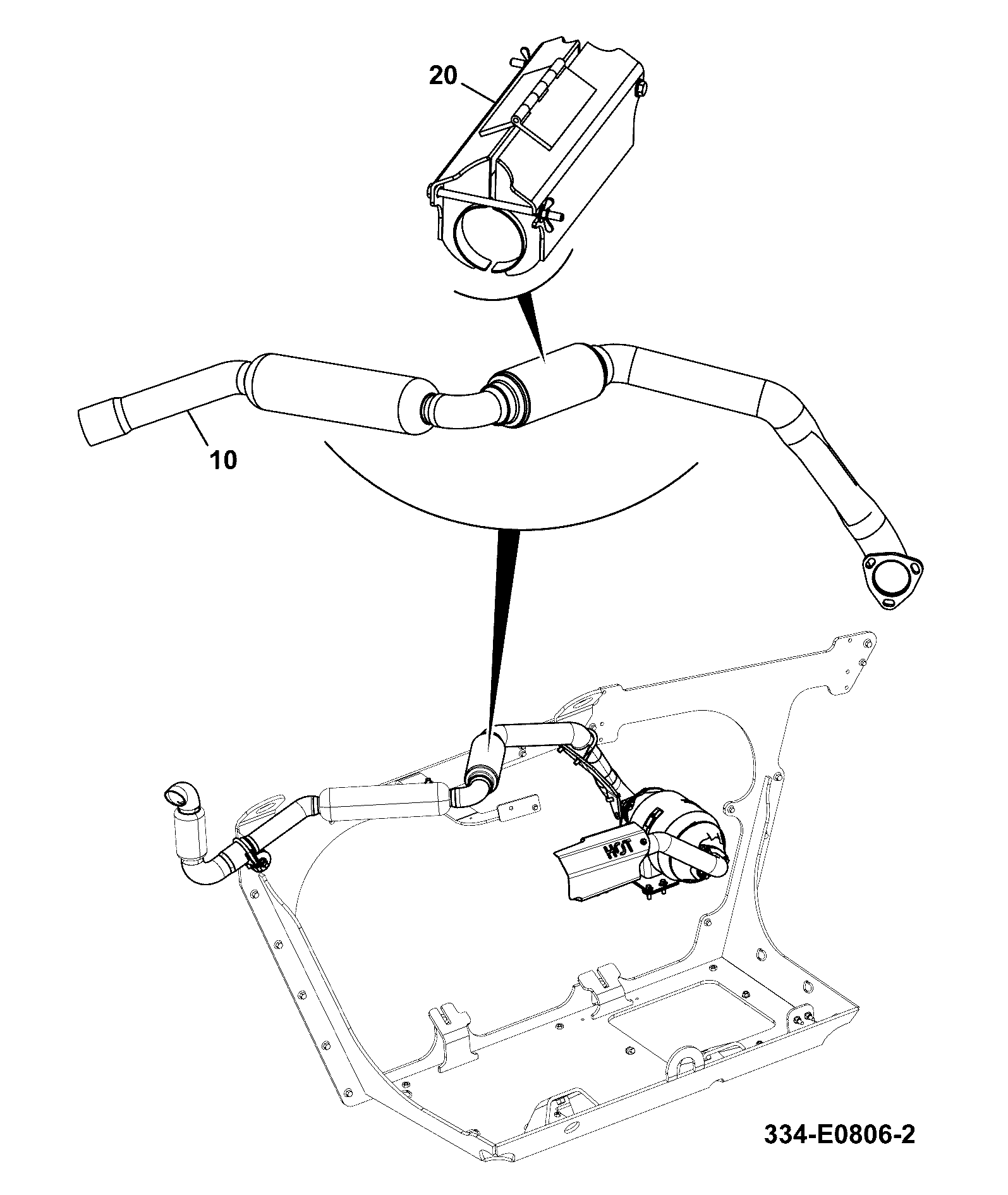

DIAG-L210-1-1-400169 L210-1-1 SILENCER ASSEMBLY & MOUNTING
View Diagram
