Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | CHECK VALVE 333/V0003 | 1 | $52.57 | |||
| 20 | ABI ADBLUE TANK (open breather hole) 334/U3498 | 1 | $363.80 | |||
| 30 | A113 50 mltrs PERMABOND 4101/0251 | 1 | $36.80 | |||
| 40 | INSERT ADBLUE FILL 334/D2277 | 1 | $4.96 | |||
| 50 | ADAPTOR 1/8" NPTF - 8MM 333/H2224 | 1 | $15.09 | |||
| 60 | INSERT ADBLUE BREATHER 334/D5950 | 1 | $5.91 | |||
| 70 | SSI NXTGen QLS HEAD UNIT I NXTGen QLS 320/D9237 | 1 | $1,051.49 | |||
| 80 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 90 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 100 | MAT TANK 333/F4292 | 1 | $2.21 | |||
| 110 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 120 | BATTERY CLAMP BOLT 333/G2827 | 1 | $13.81 | |||
| 130 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 140 | PRS upper def tank clamp 400/F3579 | 1 | $36.12 | |||
| 150 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 160 | MTG BRACKET M10 FOR DT04 7210/0059 | 1 | $23.13 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-

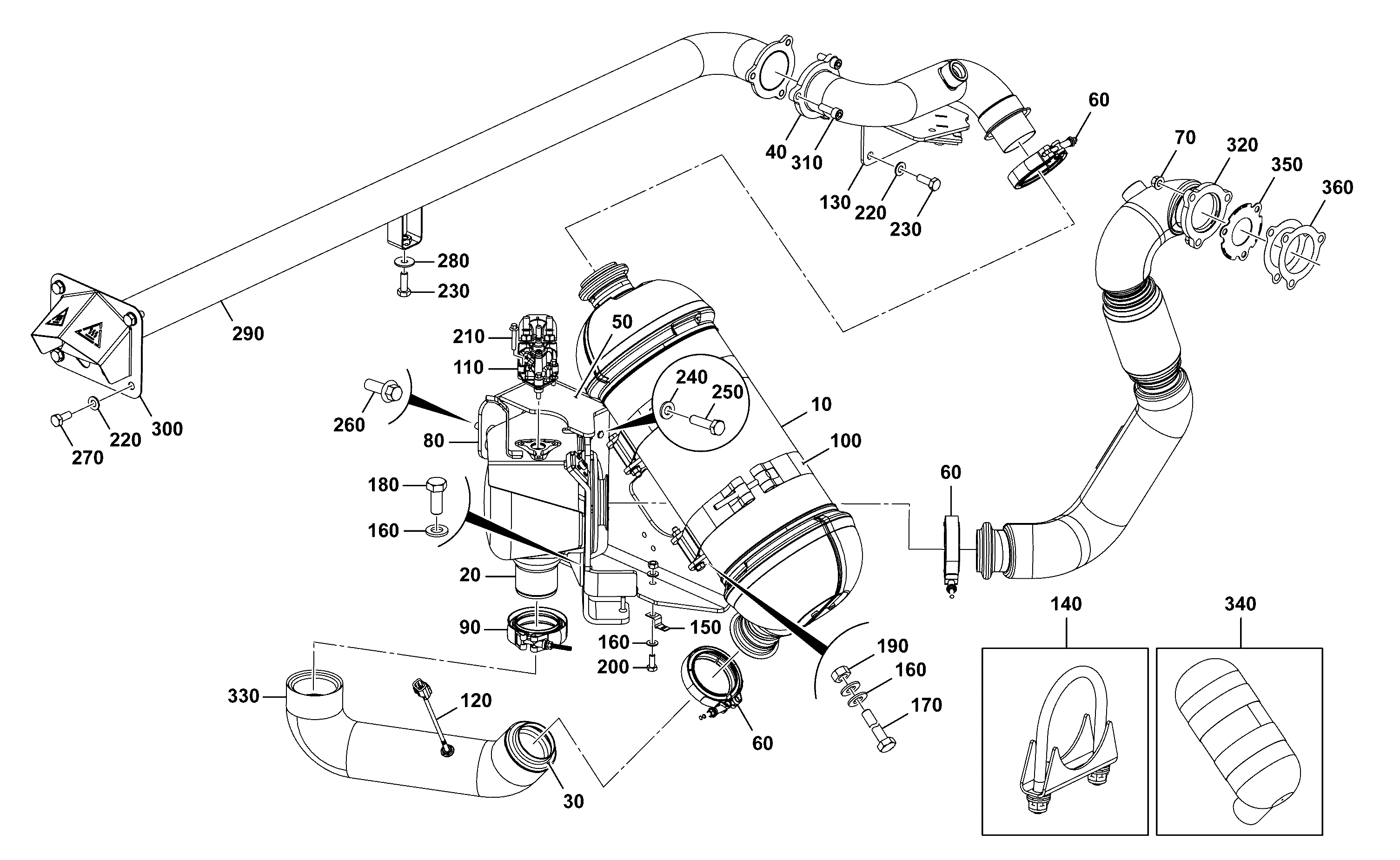

DIAG-L290-35-1-402865 L290-35-1 OTHER EXHAUST SYSTEM PARTS INSTALLATION AFTERTREATMENT 14"
View Diagram -

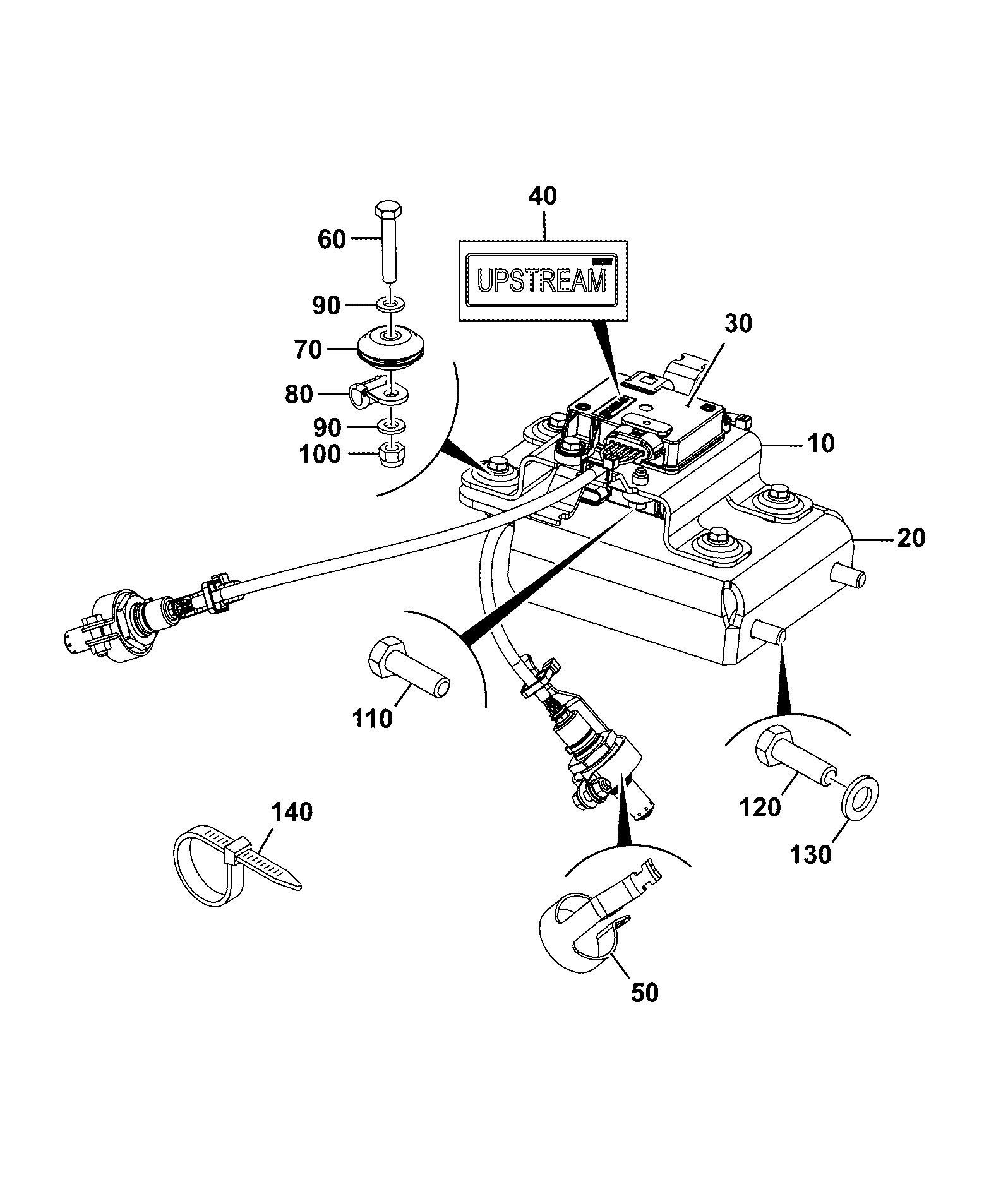

DIAG-L290-40-1-402865 L290-40-1 OTHER EXHAUST SYSTEM PARTS INSTALLATION NOX SENSOR
View Diagram -

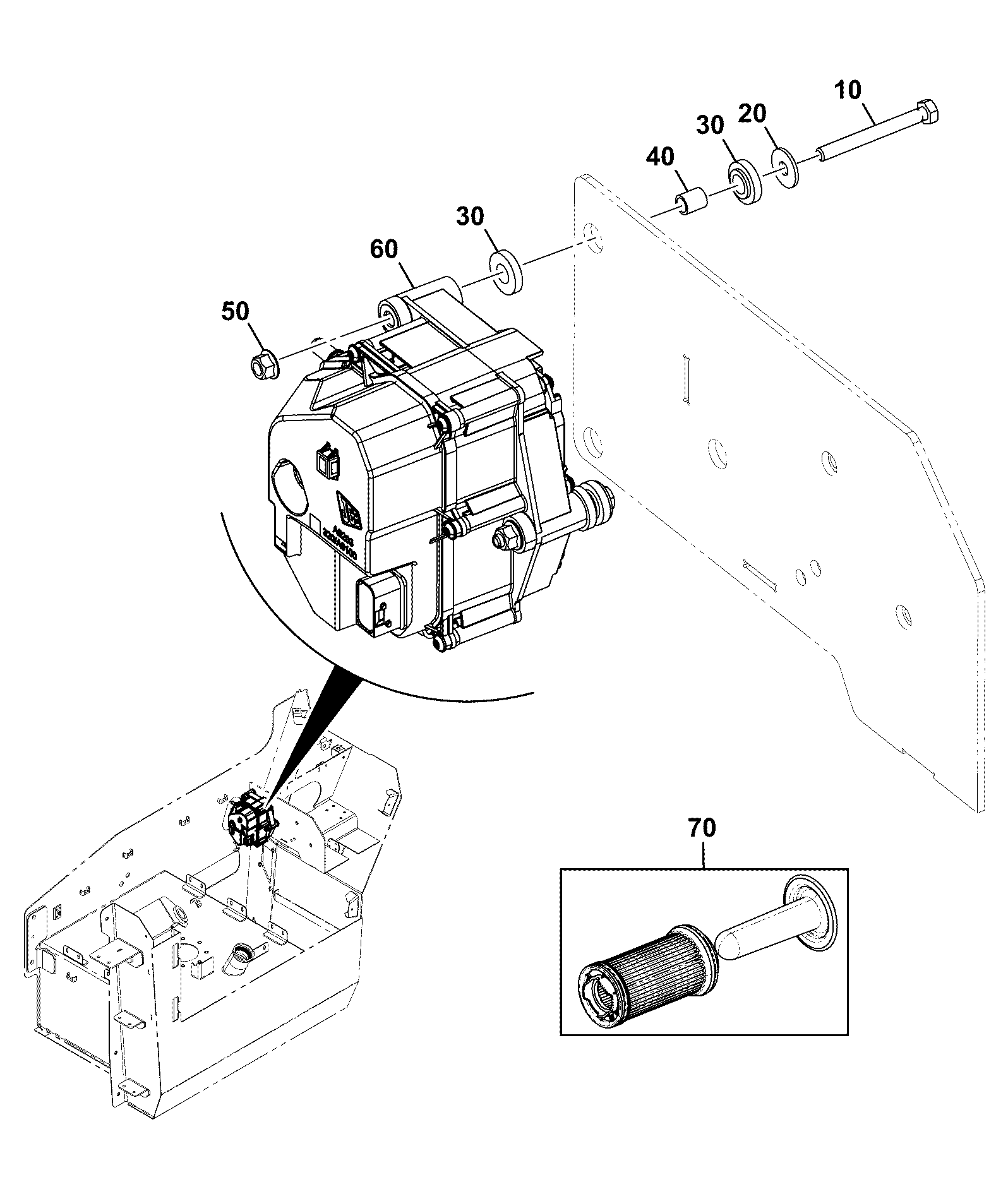

DIAG-L290-45-1-402865 L290-45-1 OTHER EXHAUST SYSTEM PARTS INSTALLATION SUPPLY MODULE RUBBER , TIER 4 FINAL
View Diagram
