Scroll to zoom Click a part # to view details

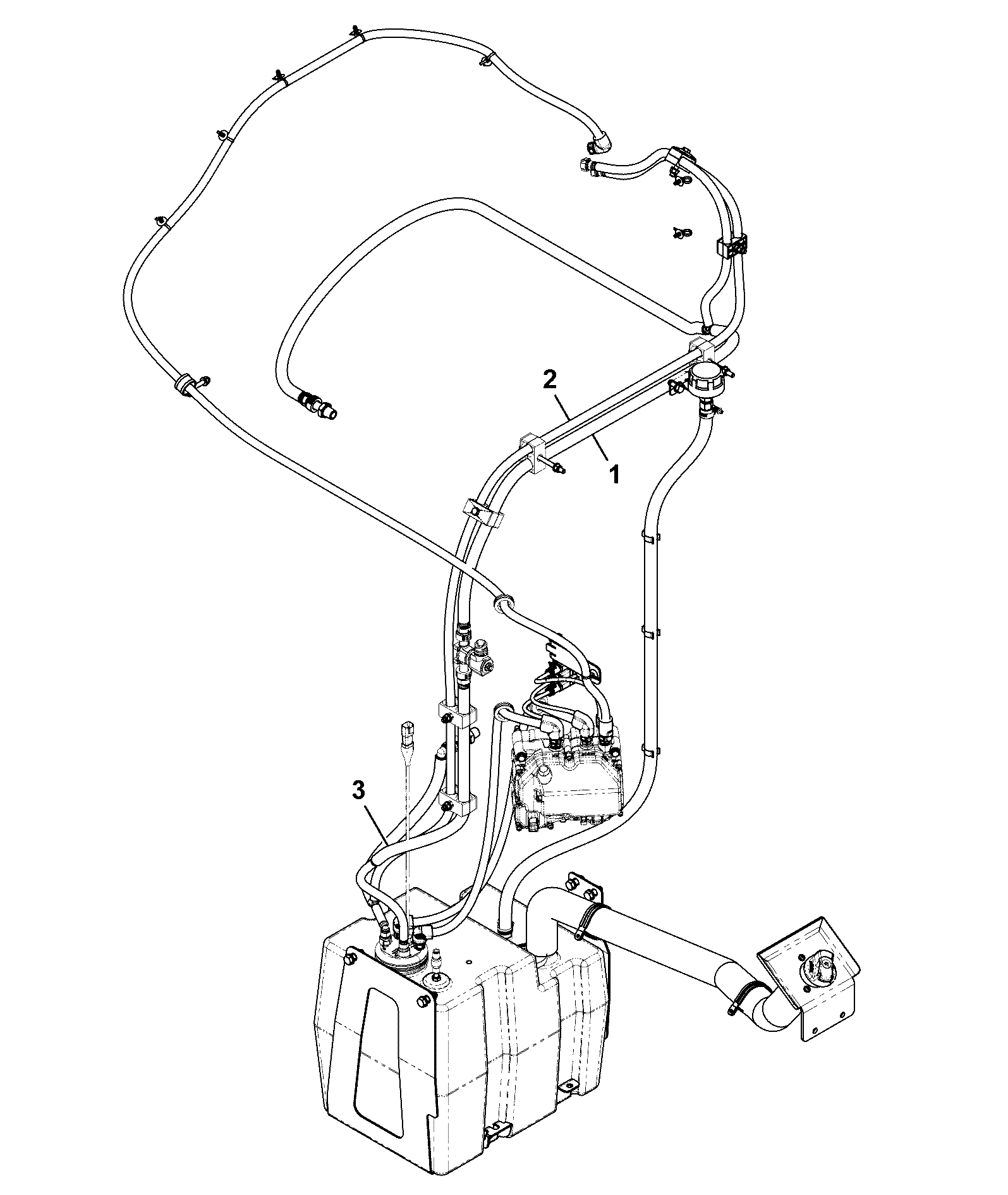

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 2 | FIR TREE CABLE TIE FIXING(KANBAN) 242/00290 | 1 | $5.06 | |||
| 5 | Clamp pairs 821/00490 | 1 | $3.88 | |||
| 6 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 8 | BOLT M8 x 65 G8.8 (P564) 1315/3315D | 1 | $14.33 | |||
| 9 | HEX.BOLT M8x110 LG 1315/3321D | 1 | $8.67 | |||
| 10 | BOLT M8x100 1315/3320D | 1 | $6.60 | |||
| 11 | BOLT M8x60 (P564) 1315/3314D | 1 | $33.85 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 14 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 16 | P-CLIP 30mm 821/00377 | 1 | $18.79 | |||
| 19 | DEF Supply Module (Reman) 334/T7594 334/T7594R | 1 | $4,367.31 | |||
| 20 | GROMMET 2410/0113 | 1 | $3.70 | |||
| 21 | 24V COOLANT CONTROL VALVE 334/W0380 | 1 | $546.57 | |||
| 22 | ADAPTOR:3/4"NPTF-5/8"SAE 334/V7151 | 1 | $29.30 | |||
| 23 | ABI UREA HOSES 427-437 T4 400/A6183 | 1 | $1,046.32 | |||
| 23 | UREA PRESSURE HOSE 400/M4342 | 1 | $1,053.28 | |||
| 24 | 33I DEF COOLANT HOSES 335/F7092 | 1 | $682.30 | |||
| 25 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 26 | SET-SCREW M_6 L-_25mm 1315/0207Z 1315/0207D | 1 | $0.33 | |||
| 28 | P CLIP (FOR 10 O.D. PIPE) 821/00410 | 1 | $16.76 | |||
| 29 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 30 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-L290-5-1-404719 L290-5-1 OTHER EXHAUST SYSTEM PARTS AFTERTREATMENT ASSEMBLY
View Diagram -
DIAG-L290-25-1-404719 L290-25-1 OTHER EXHAUST SYSTEM PARTS ABI DEF COOLANT HOSES
View Diagram -
DIAG-L290-30-1-404719 L290-30-1 OTHER EXHAUST SYSTEM PARTS TANK FILLER ASSEMBLY - UREA
View Diagram
