Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

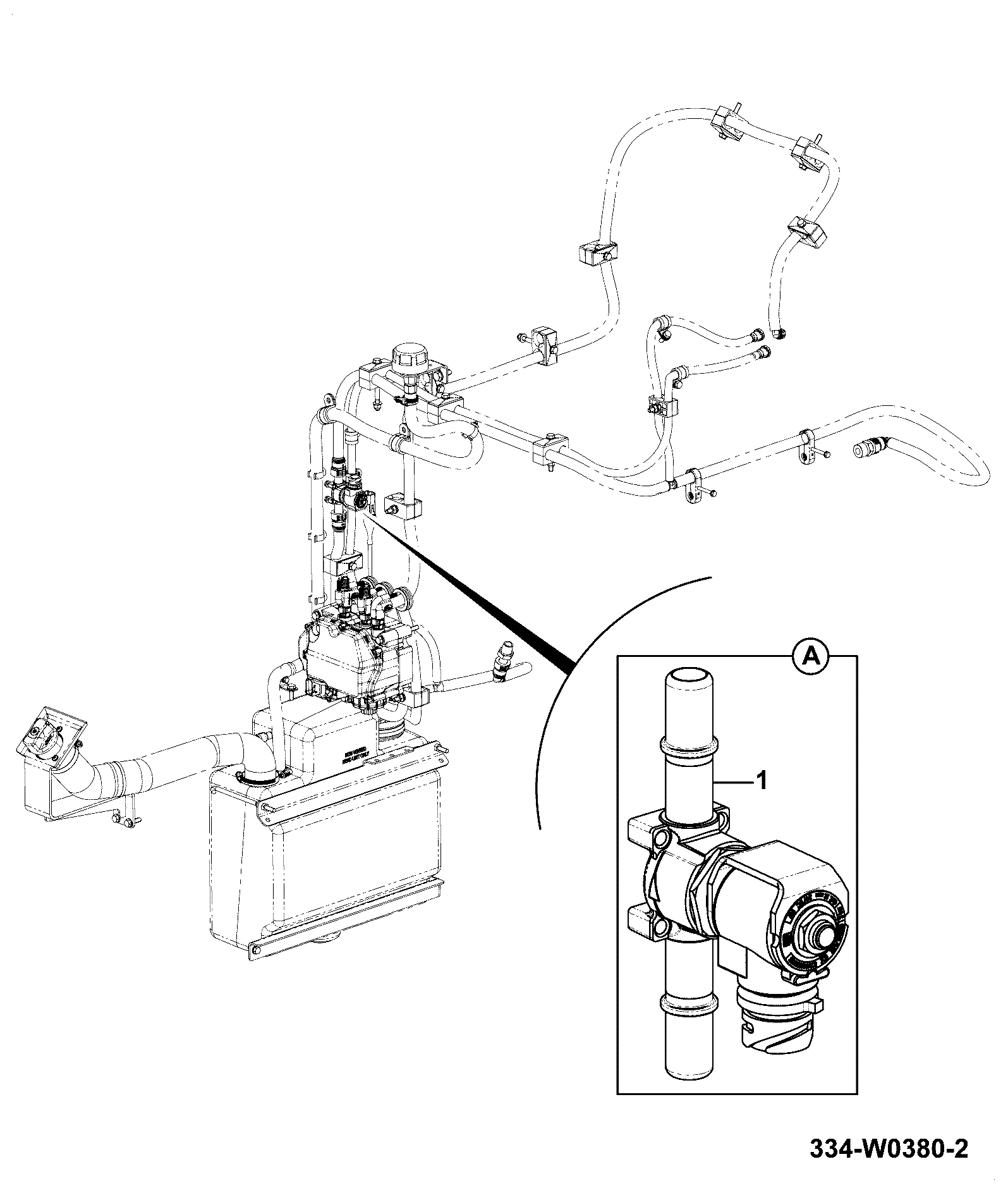

| 4 | 24V COOLANT CONTROL VALVE 334/W0380 | 1 | $546.57 | |||
| 6 | PLATE - CLAMP MOUNT 400/X0321 | 1 | $98.50 | |||
| 7 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 8 | Module 400/M3192 400/M3192N | 1 | $6,737.29 | |||
| 9 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 10 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 11 | ADAPTOR:3/4"NPTF-5/8"SAE 334/V7151 | 1 | $29.30 | |||
| 12 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 13 | CABLE CLIP 335/H1175 | 1 | $3.97 | |||
| 14 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 15 | CABLE TIE 385MM 001/00233 270/00106 | 1 | $0.58 | |||
| 16 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 17 | PIPE CLAMP 821/00350 | 1 | $42.80 | |||
| 18 | ADPTR 3/4-16UNF - 5/8 SAE 400/S3352 | 1 | $22.79 | |||
| 19 | NUT LOCK M10 (P545) 1371/0303D | 1 | $6.62 | |||
| 20 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 21 | CLAMP PLATE 821/00300 821/00300A | 1 | $11.87 | |||
| 22 | Bolt BOLT M8x65 1316/3315D | 1 | $13.02 | |||
| 23 | HOSE CLAMP C/M 5/8 TOP 123/07468 | 1 | $26.99 | |||
| 24 | SCREW M10 L-_60mm 1315/0414D | 1 | $3.20 | |||
| 25 | BOLT M10x65 1315/3415D | 1 | $7.10 | |||
| 26 | CLIP - HOSE, P TYPE 18MM 332/D2403 | 1 | $2,552.76 | |||
| 27 | WA DEF HOSE CLAMP 400/X0611 | 1 | $69.76 | |||
| 29 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 30 | HEATED LINE (SUPPLY-DOSING) 400/P4849 | 1 | $910.46 | |||
| 31 | HEATED LINE (DOSING UNIT - TANK) 400/P4852 | 1 | $1,005.69 | |||
| 32 | HEATED LINE (TANK - SUPPLY UNIT) 400/P4846 | 1 | $642.15 | |||
| 33 | DT MOUNT CLIP FIR TREE 7. 7243/0195 7243/0104 | 1 | $4.59 | |||
| 36 | PCLIP M10 22MM 333/S3315 | 1 | $2.47 | |||
| 37 | SET-SCREW M10 L-_20mm 1315/0405D | 1 | $4.43 | |||
| 38 | THIN NUT M10 1370/0302D | 1 | $2.00 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-L290-10-1-404975 L290-10-1 OTHER EXHAUST SYSTEM PARTS ASSEMBLY DEF SYSTEM 457 S5
View Diagram -
DIAG-L290-20-1-404975 L290-20-1 OTHER EXHAUST SYSTEM PARTS PIPEWORK ASSEMBLY, EXHAUST 457 S5
View Diagram -
DIAG-L290-5-1-404975 L290-5-1 OTHER EXHAUST SYSTEM PARTS COOLANT CONTROL VALVE, 24V, 5/8'
View Diagram
