| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY, SPRING V0211-23100 | 1 | $2,700.90 | |||
| 010 | SPRING,ASSY V0211-23103 | 1 | $2,557.48 | |||
| 020 | SPRING V0511-23110 | 1 | $657.30 | |||
| 030 | YOKE(IDLER,FRONT) V0211-22510 | 1 | $1,045.75 | |||
| 030 | YOKE(IDLER,FRONT) V0211-22513 | 1 | $995.89 | |||
| 040 | BOLT(SPRING) V0211-23130 | 1 | $305.32 | |||
| 050 | NUT 68773-21450 | 1 | $64.47 | |||
| 060 | PIN SPLIT 05511-50655 | 1 | $1.35 | |||
| 070 | ASSY, CYLINDER V0211-23500 | 1 | $1,009.64 | |||
| 080 | ROD V0211-23520 | 1 | $339.01 | |||
| 090 | SEAL,DUST V0211-23530 | 1 | $61.86 | |||
| 100 | O RING 04817-00390 | 1 | $5.37 | |||
| 110 | RING(BACK UP) V0211-23540 | 1 | $13.89 | |||
| 120 | Nipple Assembly RC101-21552 RC461-21550 | 1 | $60.90 | |||
| 130 | SPRING 68371-21572 | 1 | $5.64 | |||
| 140 | BALL RC101-21590 | 1 | $2.67 | |||
| 150 | PLUG 68541-21610 | 1 | $9.57 | |||
| 160 | Grease Nipple (Grease Fitting / Zerk) RG208-72310 06611-15010 | 1 | $3.54 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

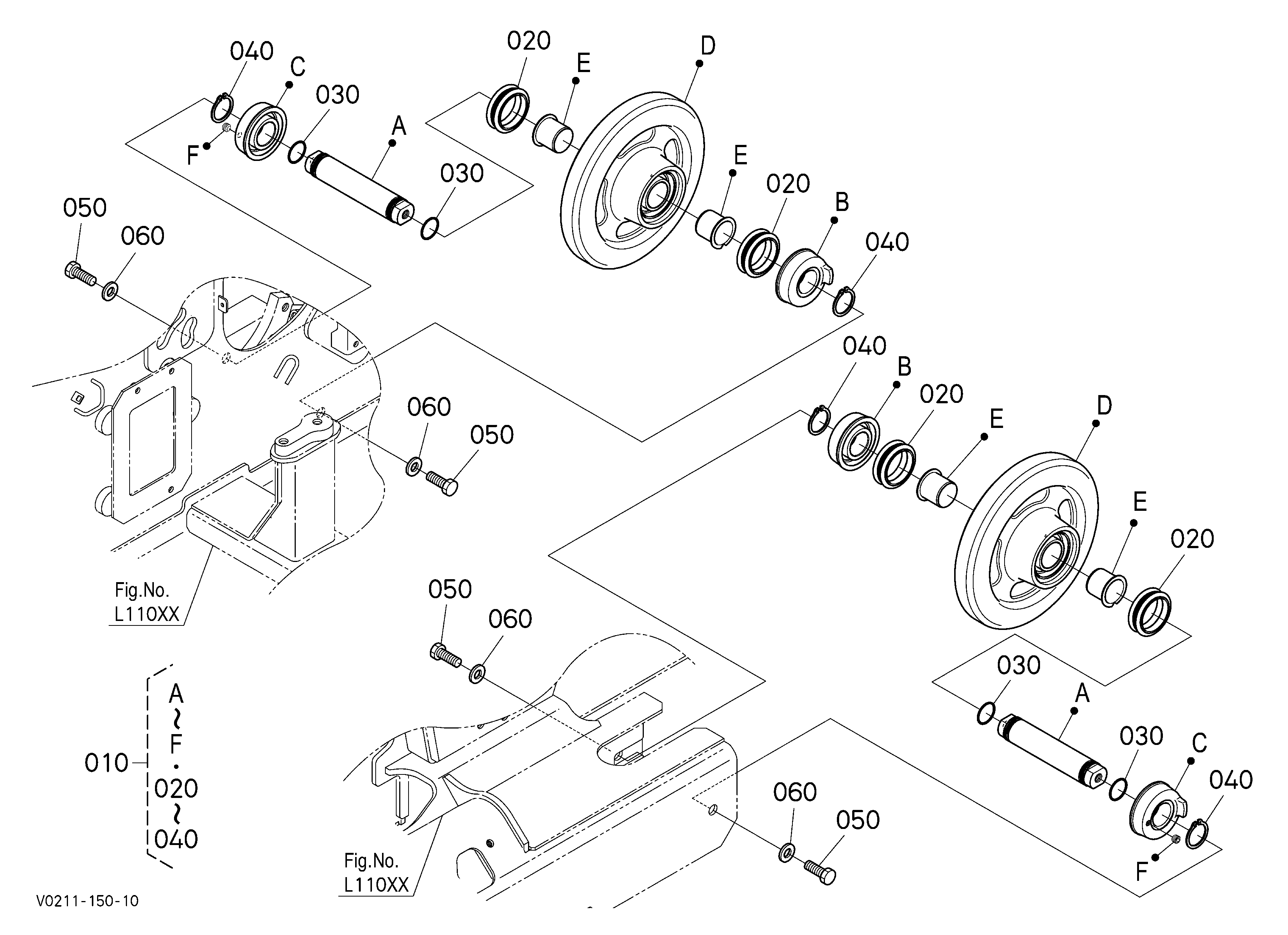

DIAG-L24000-125544 L24000 IDLER (FRONT)
View Diagram -

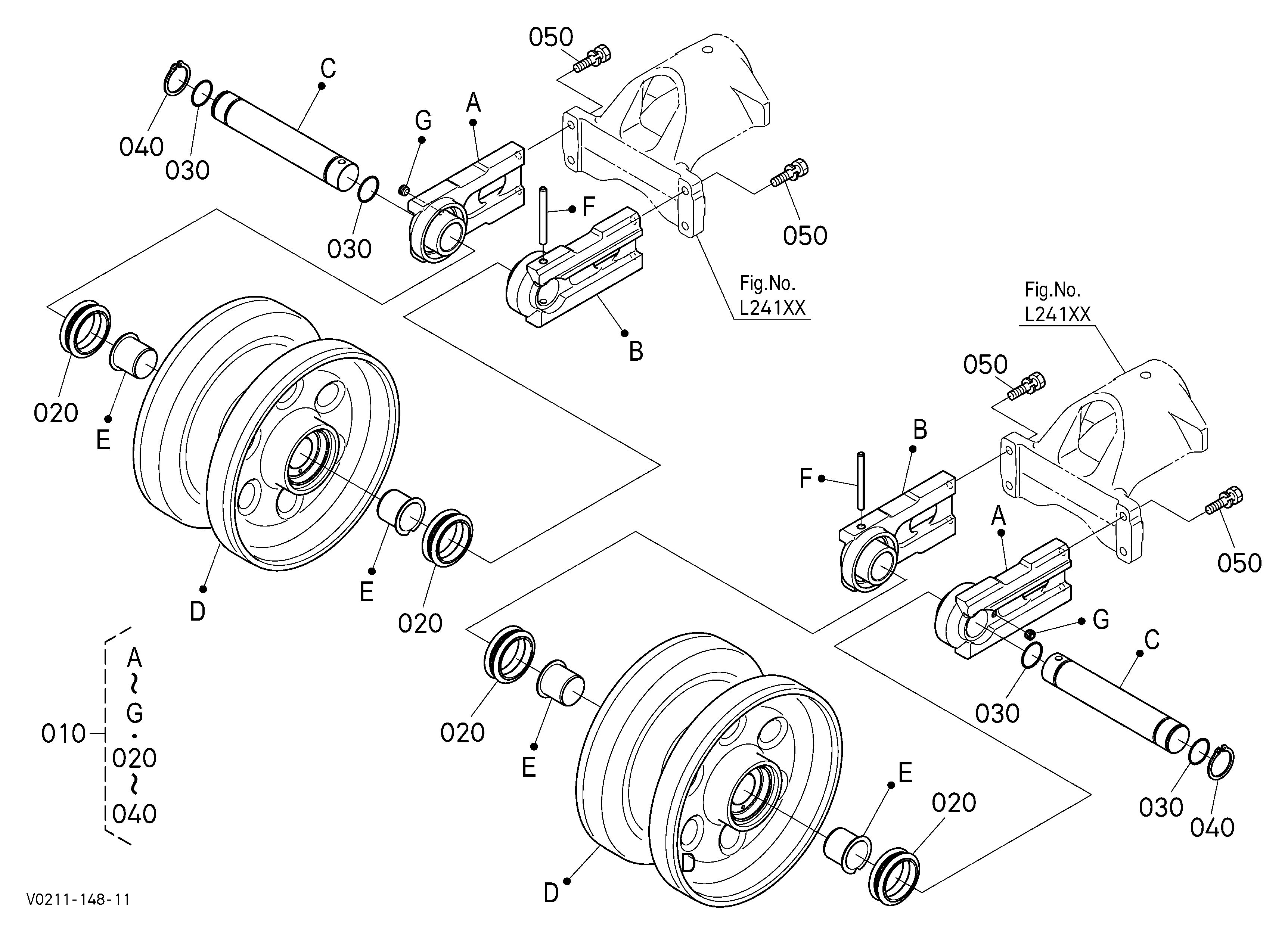

DIAG-L24300-125544 L24300 IDLER (REAR)
View Diagram -

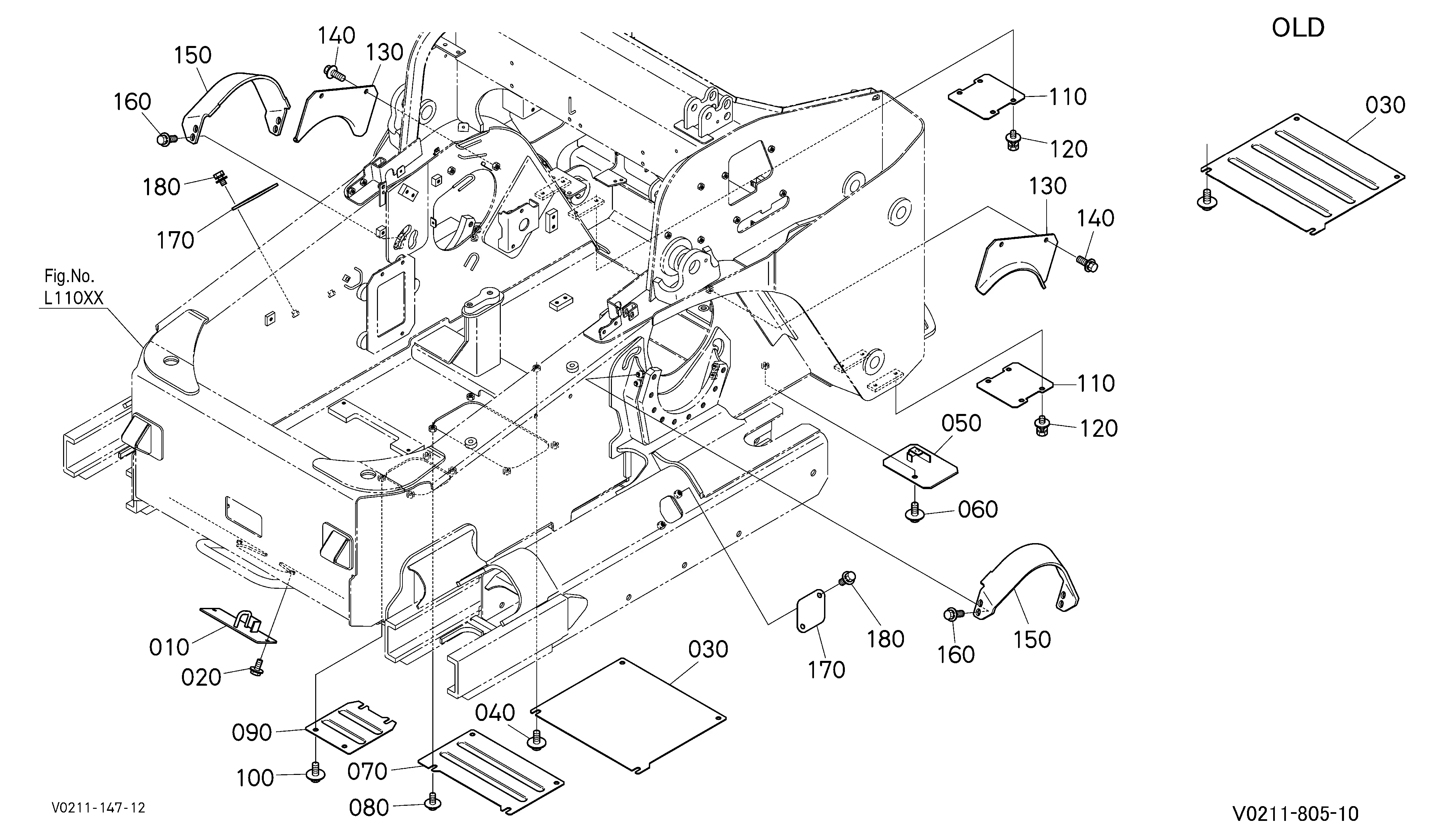

DIAG-L14000-125544 L14000 FRAME COVER
View Diagram
