Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA OUTLET PIPE 1 - 4" 400/B4514 | 1 | $1,670.35 | |||
| 2 | V Clamp 333/T2057 | 1 | $210.51 | |||
| 4 | Gasket 335/G2284 333/F8509 | 1 | $55.90 | |||
| 5 | 4" STD CLAMP- A029T534 334/T9501 | 1 | $147.57 | |||
| 6 | 4" SPH CLAMP- A029E741 334/T9496 | 1 | $170.97 | |||
| 7 | 4" SPH GASKET- A029E743 334/T9482 | 1 | $42.28 | |||
| 8 | 90 ELBOW - A045S805 334/T8211 | 1 | $1,547.90 | |||
| 13 | WA EXHAUST SUPPORT BKT 335/G1881 | 1 | $34.98 | |||
| 15 | COOLANT HARNESS BRACKET 336/A3123 | 1 | $21.67 | |||
| 16 | GUIDE PLATE 334/U9353 | 1 | $15.30 | |||
| 17 | SUPPORT BRACKET 335/B4101 | 1 | $34.30 | |||
| 18 | PLATE 334/U9376 | 1 | $20.56 | |||
| 19 | Clamp 'U' bolt 821/10471 | 1 | $115.24 | |||
| 20 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 21 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 22 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 23 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 24 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 25 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 26 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 27 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 28 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 29 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 30 | (W) P-CLIP - 25mm(KANBAN) 821/00329 | 1 | $6.83 | |||
| 31 | FIR TREE CABLE TIE FIXING(KANBAN) 242/00290 | 1 | $5.06 | |||
| 33 | BOLT M10x35 1315/3409D | 1 | $8.02 | |||
| 36 | 4" BAND CLAMP 335/G2324 | 1 | $179.01 | |||
| 37 | HEAVY DUTY V-CLAMP - 106. 400/A5598 | 1 | $74.39 | |||
Showing 1 to 28 of 28 parts
Related Assemblies
-

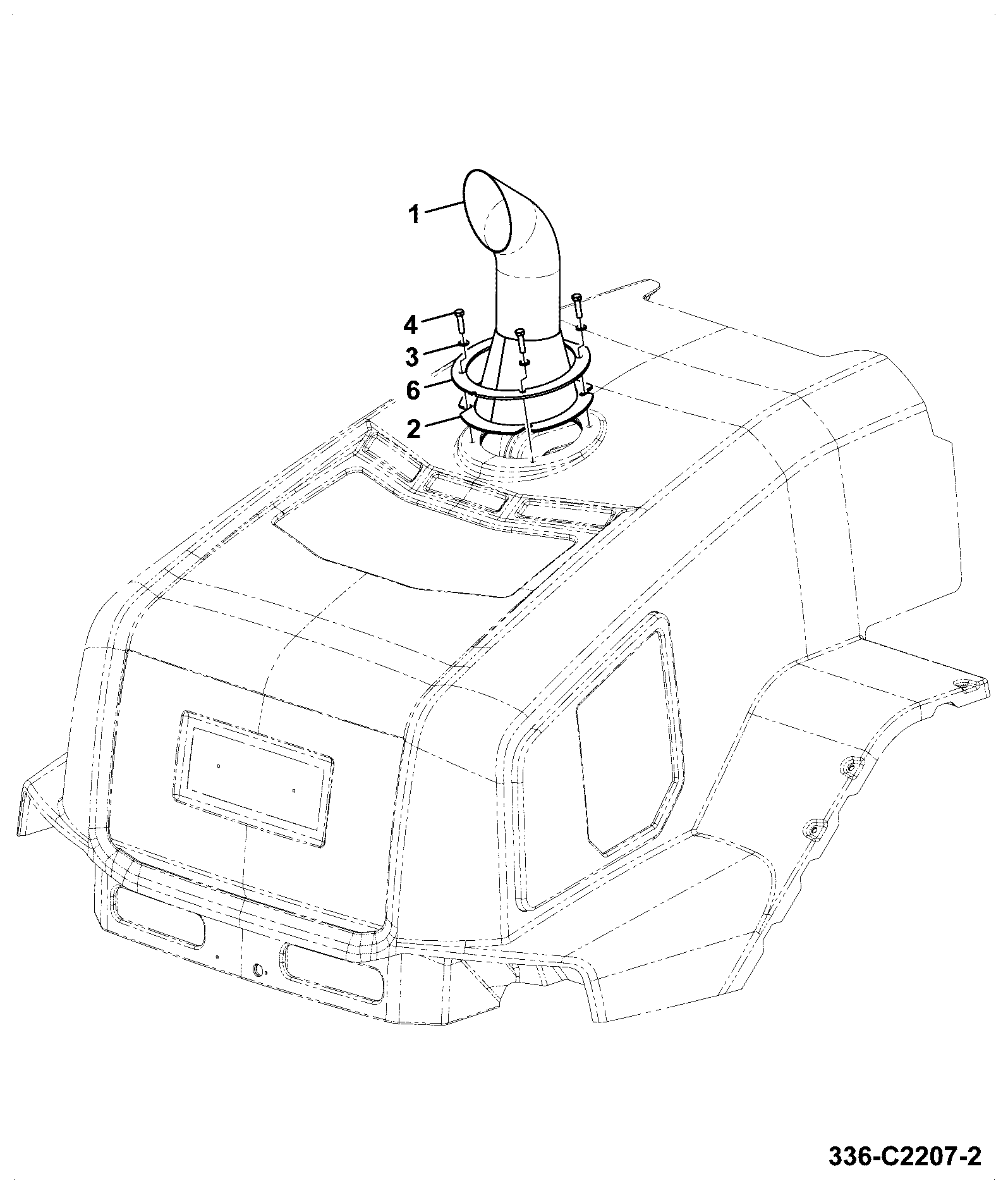

DIAG-L220-5-1-404637 L220-5-1 EXHAUST EXTENSION ASSEMBLY COANDA STACK POLISHED
View Diagram -
DIAG-L290-15-1-404637 L290-15-1 OTHER EXHAUST SYSTEM PARTS HARNESS AFTER TREATMENT, ASSEMBLY
View Diagram -

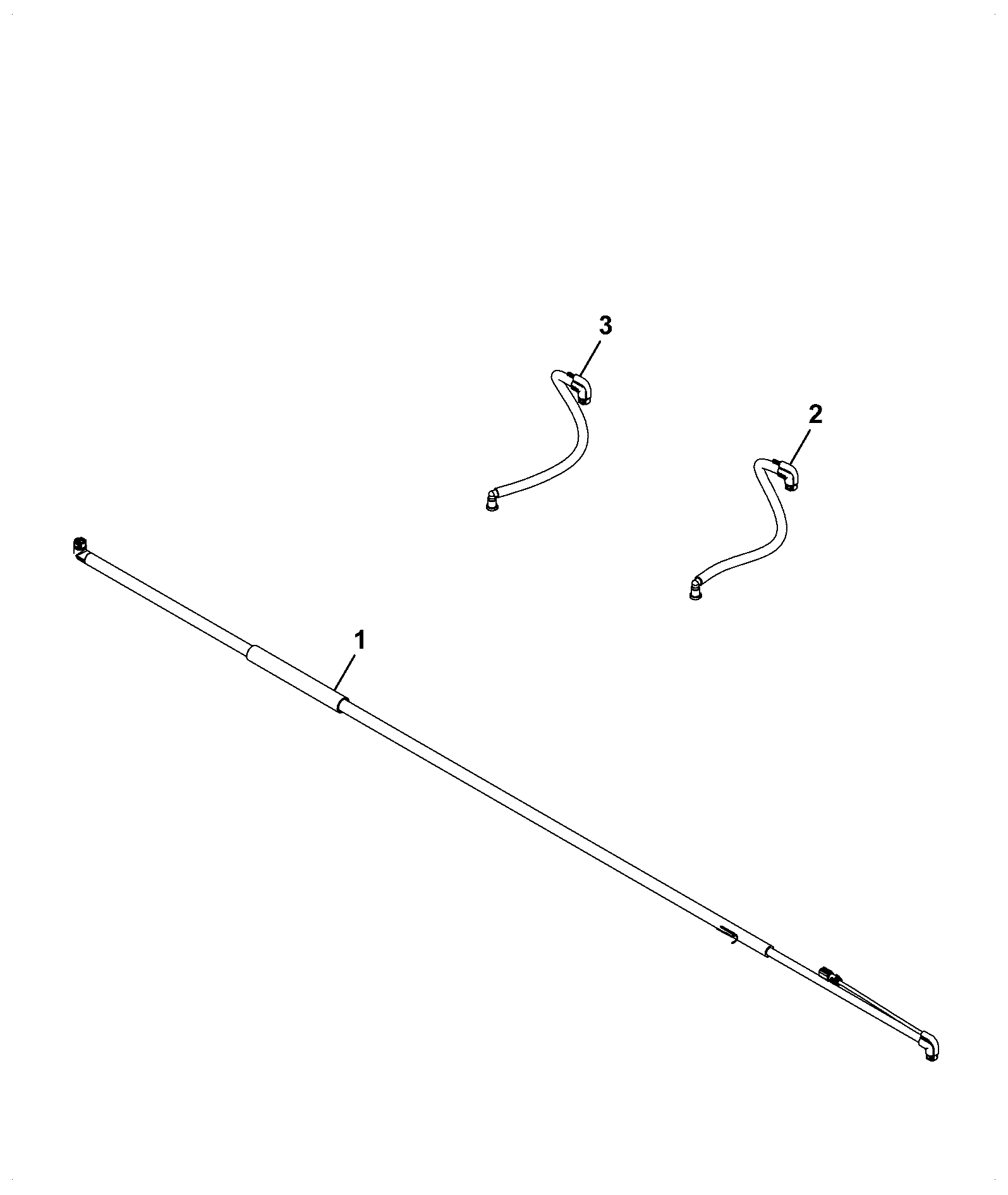

DIAG-L190-90-1-404637 L190-90-1 OTHER ENGINE RELATED PARTS ABI DEF HOSES
