Kubota L3560HST L21804 HYDRAULIC CONTROL LEVER GUIDE [CA] Parts Diagram

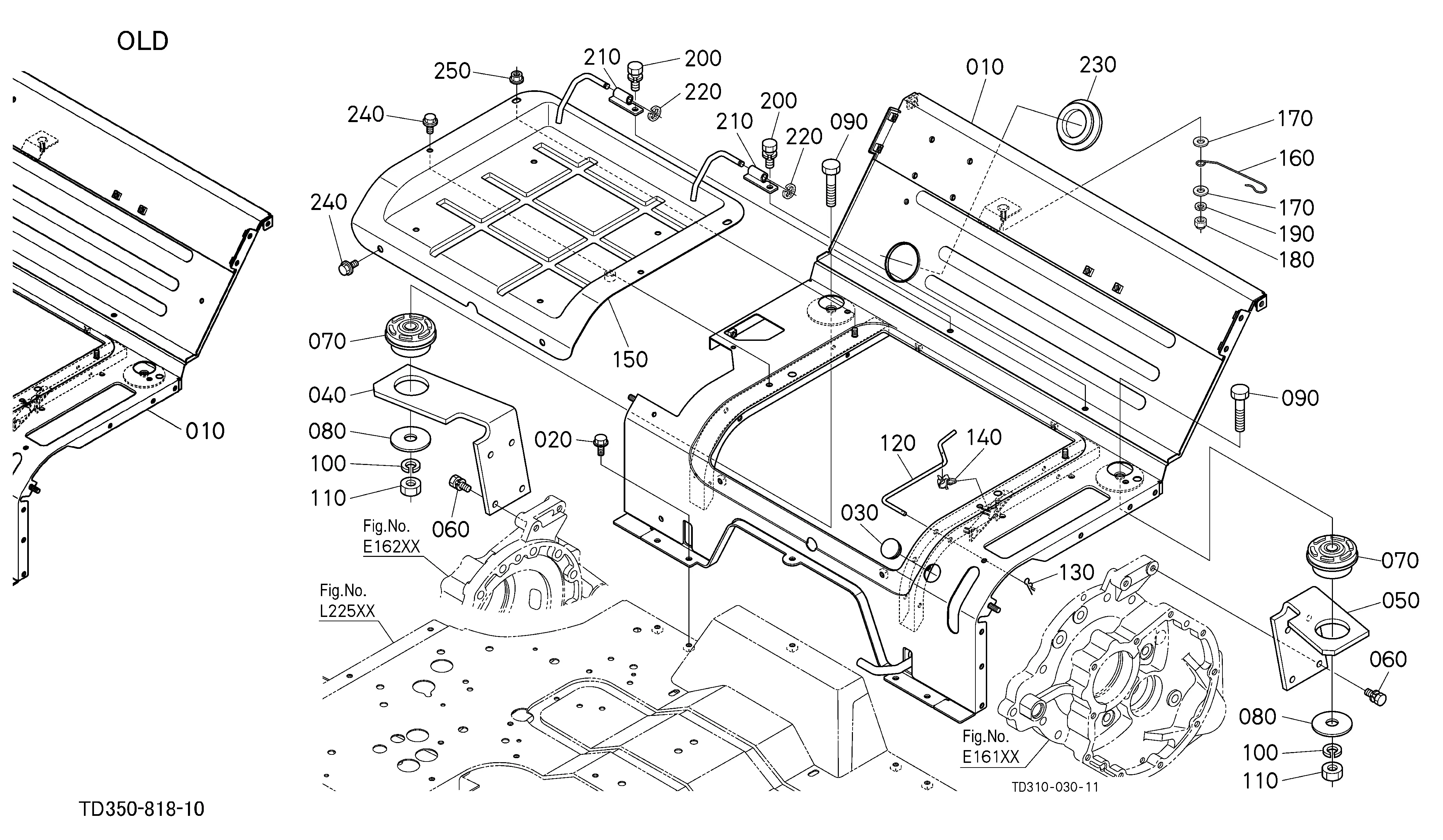

Exploded-view parts diagram "L21804 HYDRAULIC CONTROL LEVER GUIDE [CA]" for the Kubota L3560HST, Kubota L5460HST and Kubota L6060HST. 23 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GUIDE(HYD.LEVER) TD350-35133 TD350-35135 | 1 | $141.45 | |||
| 010 | GUIDE(HYD.LEVER) TD350-35136 | 1 | $141.45 | |||
| 020 | BOLT, FLANGE 30810-18870 | 1 | $1.07 | |||
| 030 | WASHER, PLAIN 36919-54090 | 1 | $1.07 | |||
| 040 | BOLT, M6X20 * T1275-74560 | 1 | $10.65 | |||
| 050 | CAP 3F760-56750 | 1 | $1.44 | |||
| 065 | LABEL(EMC) 3S201-98250 | 1 | $4.54 | |||
| 065 | LABEL(EMC) 6C430-47550 | 1 | $2.79 | |||
| 070 | CAP, SWITCH RD451-44640 RD451-44642 | 1 | $7.73 | |||
| 080 | GUIDE, HYD,LEVER TD350-47620 | 1 | $41.93 | |||
| 090 | PLUG TD170-71080 | 1 | $5.15 | |||
| 100 | Bolt 01125-50816 | 1 | $0.99 | |||
| 110 | Bolt T1060-47370 | 1 | $1.51 | |||
| 120 | COVER, LEVER GUI TD350-47630 | 1 | $12.19 | |||
| 130 | COVER, LEVER GUI TD350-47640 | 1 | $10.90 | |||
| 140 | COVER, LEVER GUI TD350-47650 | 1 | $8.25 | |||
| 150 | BOOT,LOADER LEVE TD350-35390 | 1 | $16.17 | |||
| 160 | STAY, POSITION,S TD350-35060 | 1 | $15.72 | |||
| 170 | Knob Screw M6 x 2 37410-52610 | 1 | $8.19 | |||
| 180 | Spring Washer (Spring Lock Washer) 04512-80060 04512-50060 | 1 | $0.36 | |||
| 190 | WASHER, PLAIN 33740-55750 | 1 | $1.35 | |||
| 200 | STOPPER,P RELEIF TD350-35040 | 1 | $6.92 | |||
| 210 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
Showing 1 to 23 of 23 parts
