Kubota L2501HST L21101 FENDER LH [NEW] Parts Diagram

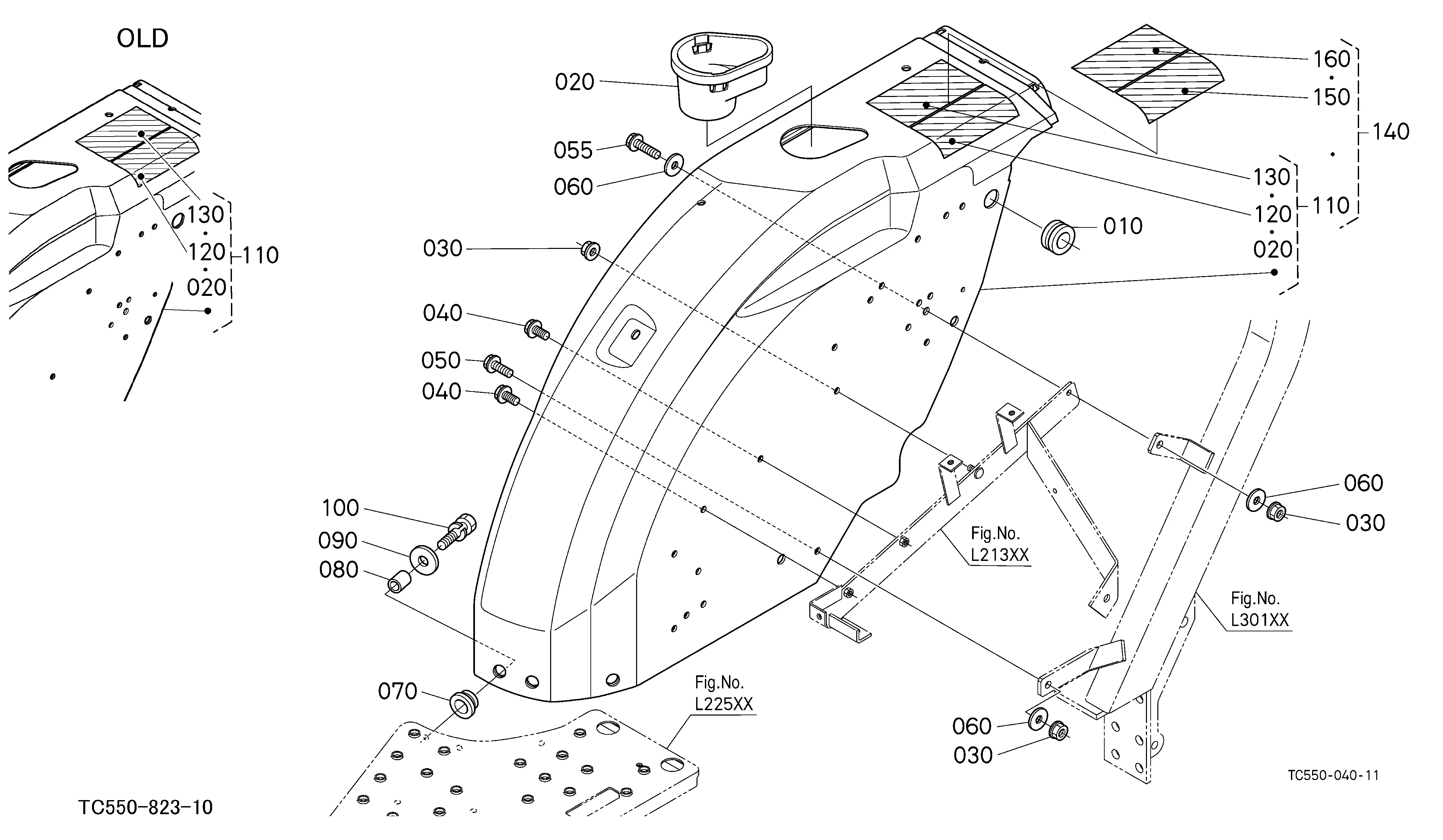

Exploded-view parts diagram "L21101 FENDER LH [NEW]" for the Kubota L2501HST. 23 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GROMMET*** 53761-61260 | 1 | $4.36 | |||
| 020 | ASSY, GRIP LH T1060-29440 T1060-29460 | 1 | $73.21 | |||
| 030 | Flange Nut 02771-50100 | 1 | $3.06 | |||
| 050 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 060 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 070 | Flange Bolt 01754-50825 | 1 | $5.09 | |||
| 075 | Flange Bolt 01754-50830 | 1 | $5.85 | |||
| 080 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
| 090 | RUBBER, STEP 3A111-87360 | 1 | $3.87 | |||
| 100 | COLLAR, FENDER TC030-29130 | 1 | $4.13 | |||
| 110 | WASHER, PLAIN 3A211-53500 | 1 | $2.06 | |||
| 120 | Bolt (Fastener) 01120-00830 01123-50830 | 1 | $1.37 | |||
| 130 | KIT FENDER LH(A) TC420-99532 TC420-99534 | 1 | $1,033.19 | |||
| 140 | LABEL,SAFETY,WAR TC660-49970 | 1 | $8.74 | |||
| 150 | LABEL, SPARK ARR 6C301-47440 6C300-47440 | 1 | $6.21 | |||
| 150 | LABEL, SPARK ARRESTER 6C420-47440 | 1 | $3.09 | |||
| 160 | KIT FENDER LH(B) TC420-99544 | 1 | $1,628.96 | |||
| 170 | LABEL SAFETY,WAR TC661-49970 | 1 | $9.75 | |||
| 190 | LABEL(EMC) 3S201-98250 | 1 | $4.54 | |||
| 190 | LABEL(EMC) 6C430-47550 | 1 | $2.79 | |||
| 200 | FENDER,KIT(LH,B,CA) TC420-47132 Discontinued | 1 | $1,119.47 | |||
| 210 | LABEL(SILICA,WARNING 3B791-98700 3B791-98702 Discontinued | 1 | $8.18 | |||
| 220 | LABEL 3B792-98700 3B792-98702 Discontinued | 1 | $8.04 | |||
Showing 1 to 23 of 23 parts
