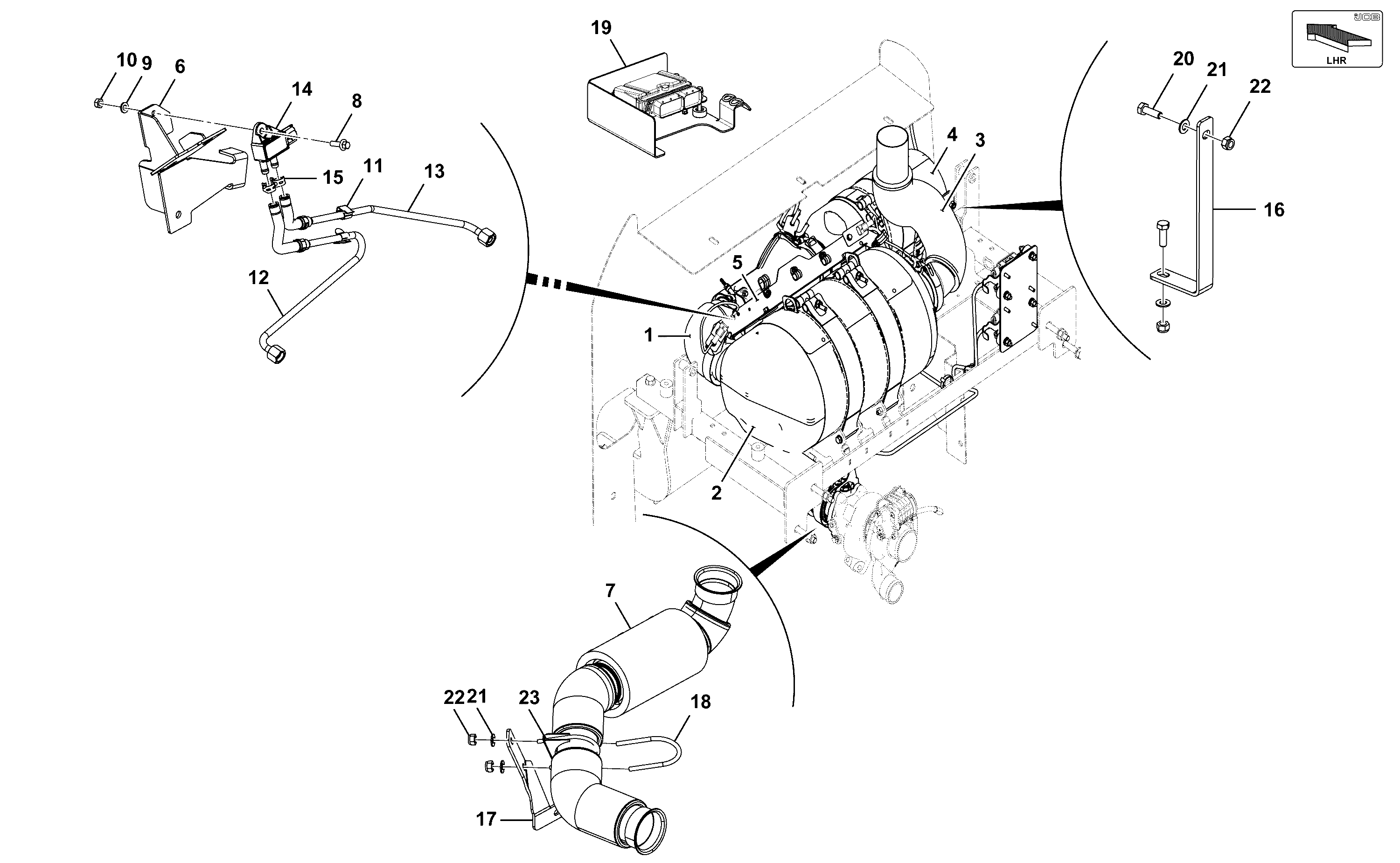

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ABI SCRF BAND CLAMP 401/H6370 | 1 | $103.82 | |||
| 2 | TURBO ADAPTOR 3 INCH (MACHINED) 320/B6198 | 1 | $181.26 | |||
| 4 | GASKET TURBO OUTLET 320/B6341 | 1 | $10.02 | |||
| 6 | EXHAUST CLAMP 426 USA BID 821/00264 | 1 | $20.45 | |||
| 8 | PH2 WA MIXER (EXCAVATOR) 320/B6257 | 1 | $883.15 | |||
| 9 | DOSING MODULE ; 6 HOLE 320/B6328 | 1 | $470.38 | |||
| 10 | +BI BAND CLAMP - DOC 401/H7290 | 1 | $77.18 | |||
| 11 | NOx SENSOR - 24V LONG 320/B9435 320/D9839 | 1 | $639.03 | |||
| 14 | NGK TEMP SENSOR-90 320/C9705 | 1 | $171.16 | |||
| 20 | MISC WASHER COOLING PACK 400/K0618 | 1 | $2.59 | |||
| 21 | 21/00487 16mm (P545) 826/00864 | 1 | $12.44 | |||
| 22 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 23 | FLANGE LOCK NUT M6 G8 1370/0109D | 1 | $1.20 | |||
| 24 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 25 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 26 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 27 | SET SCREW M8 x 75 G8.8 (P564) 1315/0317D | 1 | $28.07 | |||
| 28 | M10 EXHAUST NUT 826/11377 | 1 | $3.89 | |||
| 29 | M6 x 12 6g [A2-70] 320/B6497 | 1 | $3.33 | |||
| 30 | WASHER M6 x1.6mm [A2-70] 320/B6498 | 1 | $7.31 | |||
| 31 | Bolt BOLT M8x65 1316/3315D | 1 | $13.02 | |||
| 32 | BOLT FLANGED HEX M8 x 16 g8.8 1317/3303V | 1 | $0.55 | |||
| 33 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 35 | CABLE TIE - BLACK 200mm 826/01144 | 1 | $0.20 | |||
| 36 | SPRING WASHER M8 1425/0007D | 1 | $1.52 | |||
| 37 | NUT M_8 STD PLAIN 1370/0201Z 1370/0201D | 1 | $1.07 | |||
| 39 | SSC 2 WAY FIR TREE CLIP(BLACK) 7243/0258 | 1 | $2.78 | |||
| 40 | P CLIP 20mm DIA. 821/00306 | 1 | $6.70 | |||
| 41 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 42 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 43 | NUT M_6 STD PLAIN 1370/0101Z 1370/0101D | 1 | $2.14 | |||
Showing 1 to 31 of 31 parts
Related Assemblies
-
DIAG-L200-1-1-404775 L200-1-1 EXHAUST SYSTEM INSTALLATION ASSEMBLIES EXHAUST SYSTEM 433 BSV
View Diagram -
DIAG-L290-1-1-404775 L290-1-1 OTHER EXHAUST SYSTEM PARTS DOSING MODULE REPAIR KIT
View Diagram -

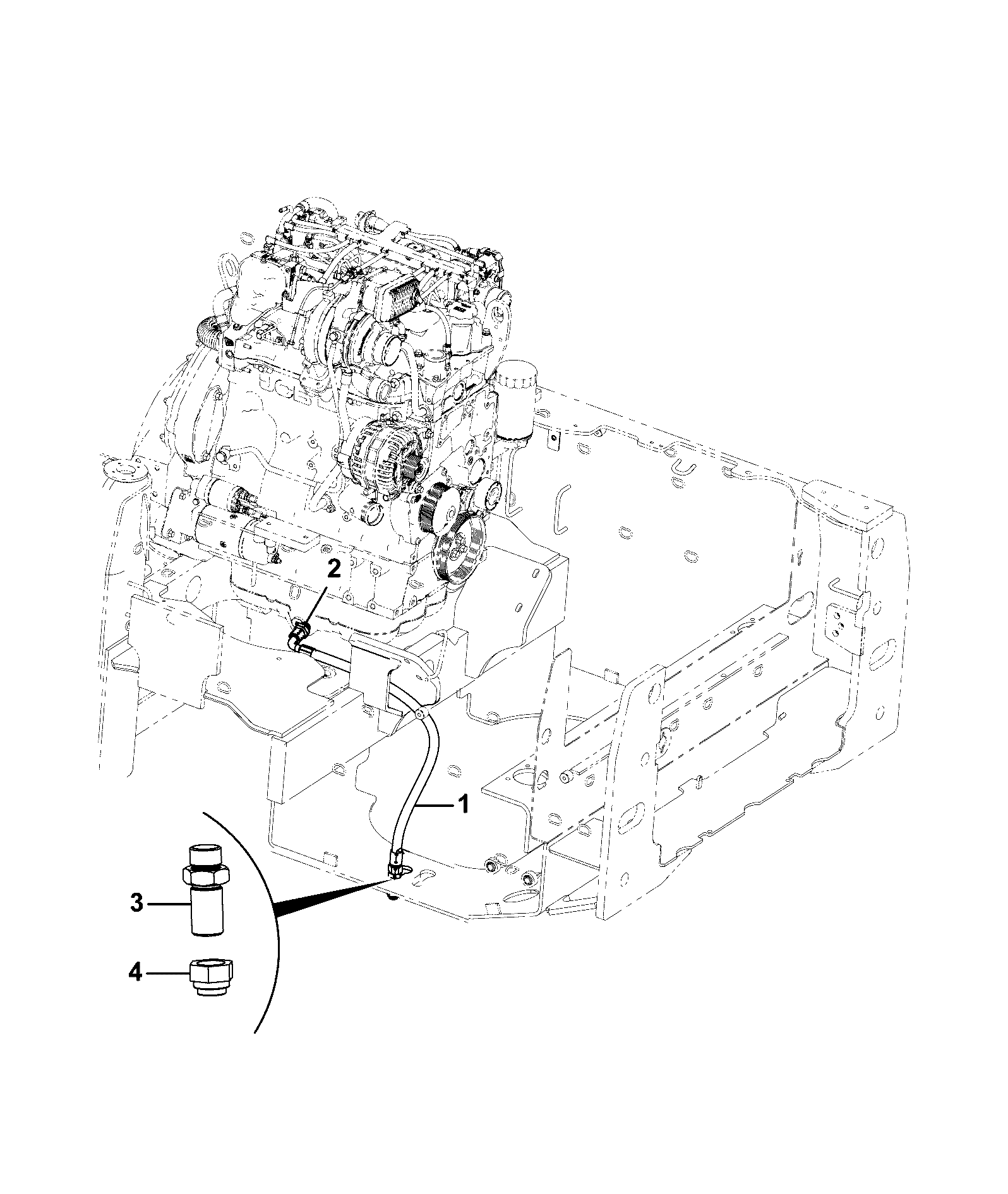

DIAG-L190-15-1-404775 L190-15-1 OTHER ENGINE RELATED PARTS ENGINE DRAIN
View Diagram
