L2-3-10 ROCKER COVER INSTALLATION Parts Diagram | JCB | Scholten’s Equipment

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	Bolt 02/930189	1	AVAILABLE TO ORDER	$15.87	Quantity
3	Valve Breather 02/941232	1	AVAILABLE TO ORDER	$113.54	Quantity
4	O Ring 02/930194	1	AVAILABLE TO ORDER	$29.02	Quantity
5	Oil Separator 332/G5237	1	AVAILABLE TO ORDER	$54.49	Quantity

Showing 1 to 4 of 4 parts

DIAG-L2-3-1-402988 L2-3-1 ROCKER COVER INSTALLATION
View Diagram

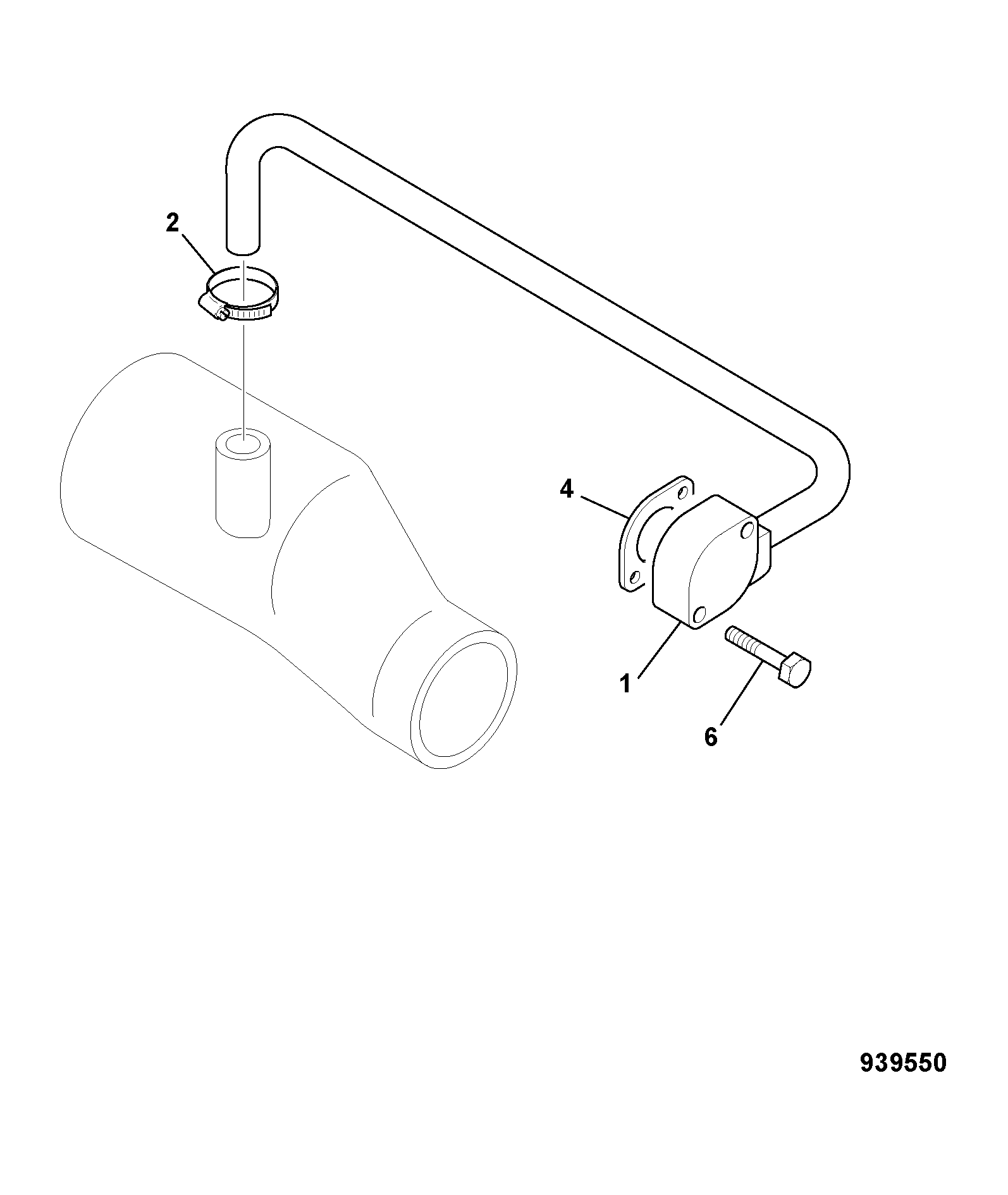

DIAG-L2-4-1-402988 L2-4-1 CRANKCASE BREATHER
View Diagram

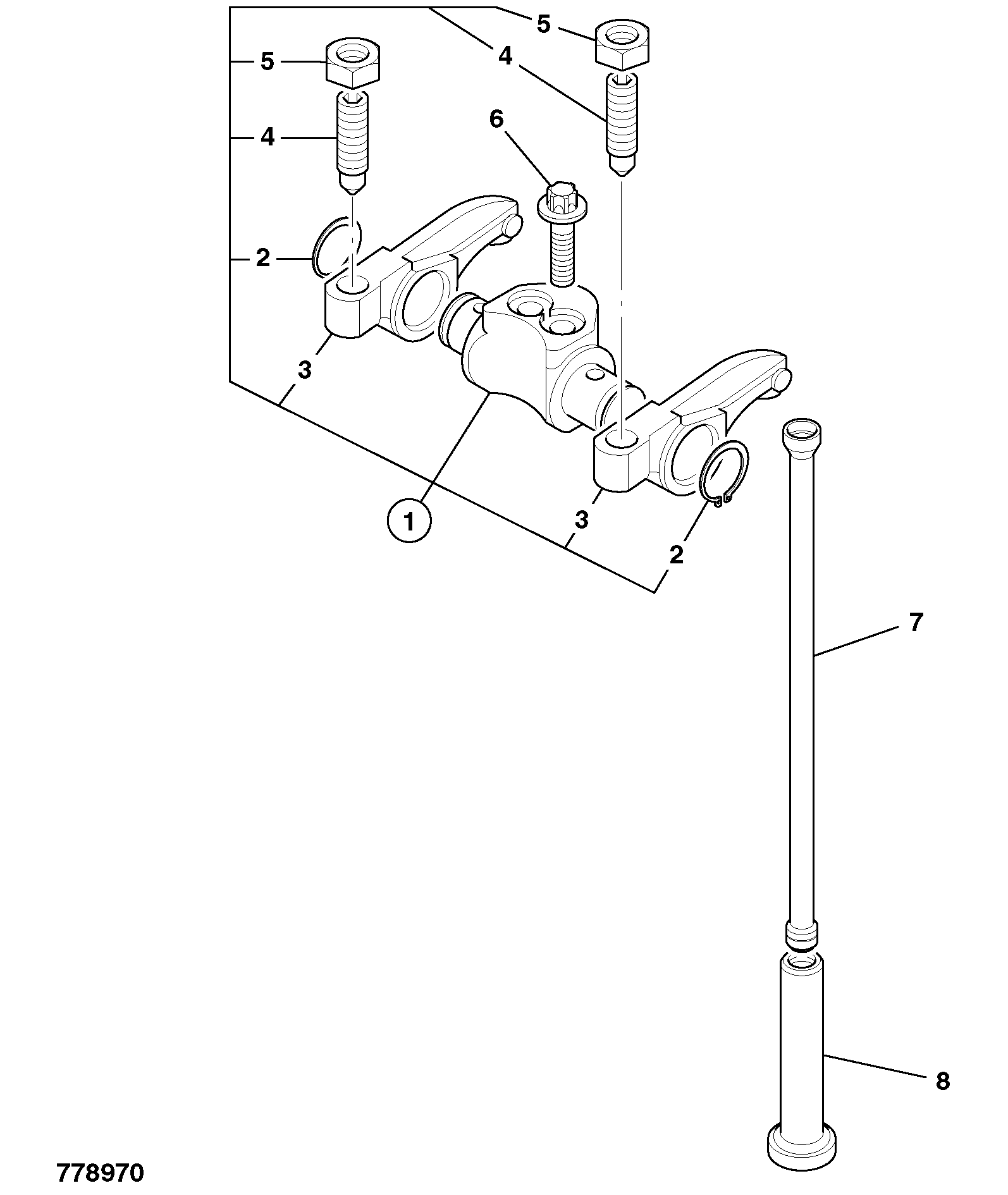

DIAG-L2-2-1-402988 L2-2-1 ROCKER SHAFT PUSH-RODS & TAPPETS
View Diagram

Previous Assembly DIAG-L2-3-1-402988 L2-3-1 ROCKER COVER INSTALLATION Next Assembly DIAG-L2-4-1-402988 L2-4-1 CRANKCASE BREATHER
