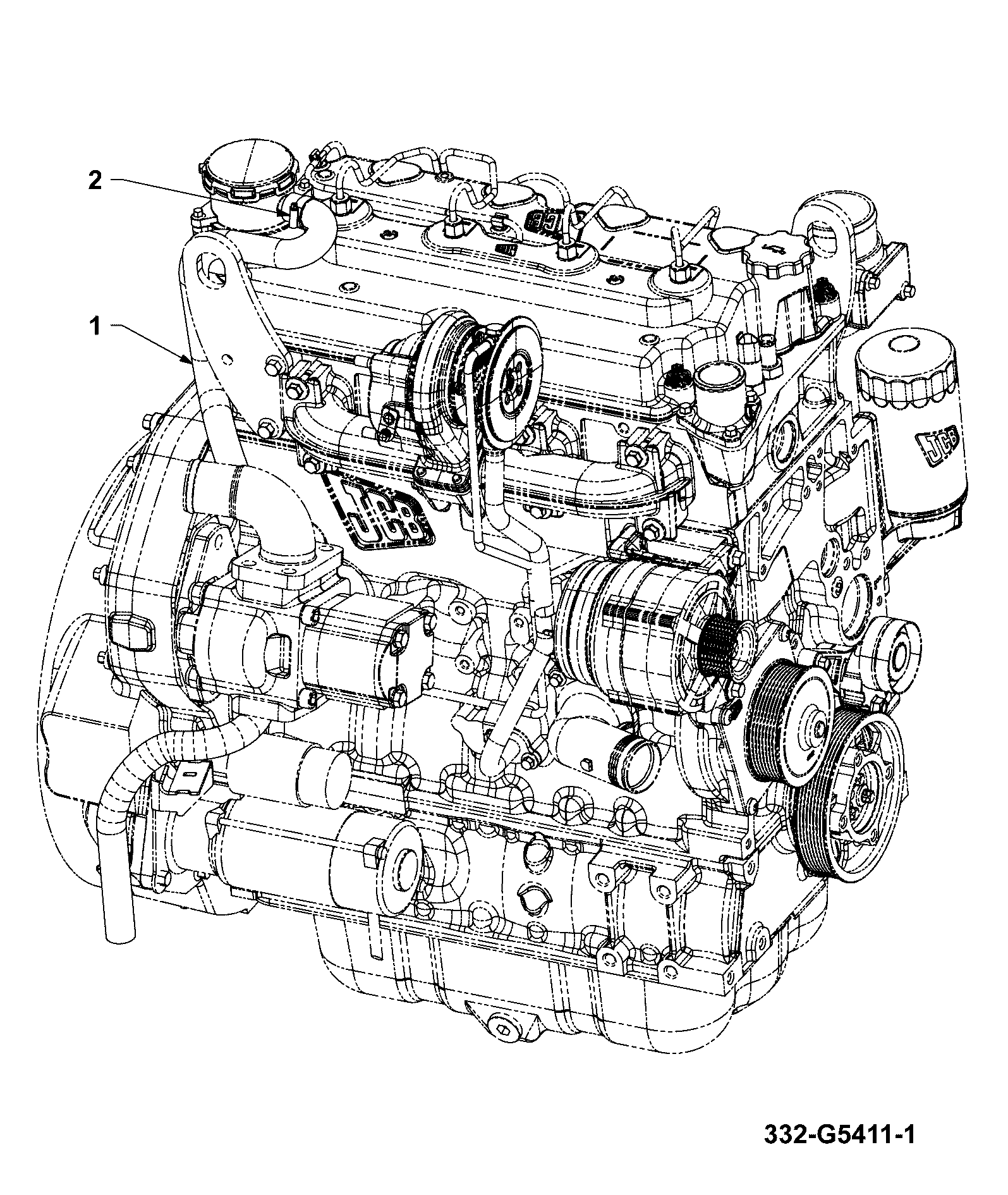

L140-5-1 ENGINE DIPSTICK INSTALLATION Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
1	DIPSTICK ASSY - LONG ABI 332/C1114	1	AVAILABLE TO ORDER	$124.69	Quantity
2	BOLT FLANGED HEX M8 x 16 320/A0603	1	AVAILABLE TO ORDER	$0.78	Quantity
3	WA DIPSTICK BRACKET 332/E8906	1	AVAILABLE TO ORDER	$79.90	Quantity

Showing 1 to 3 of 3 parts
