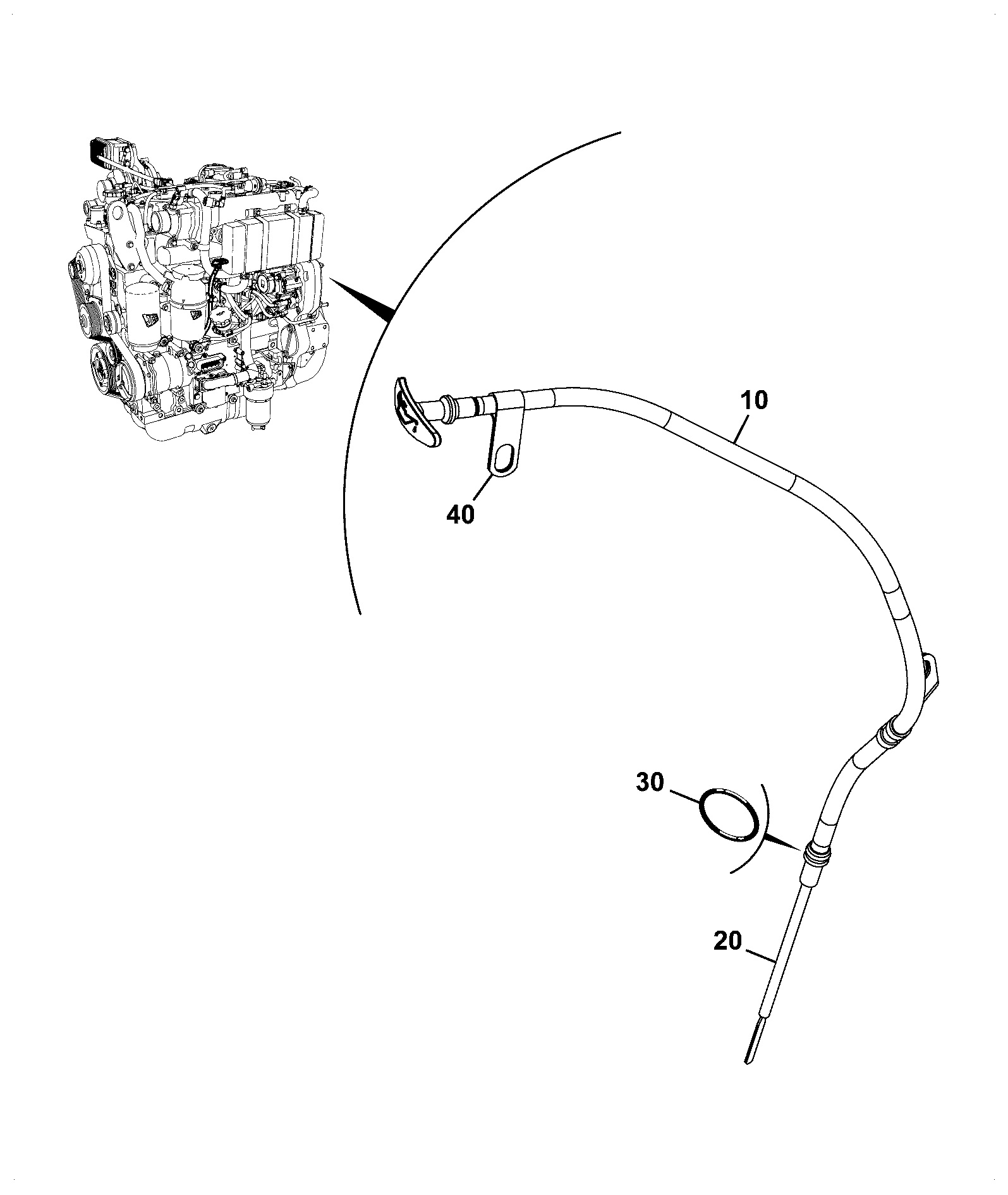

L140-2-1 DIPSTICK ASSEMBLY Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	ABI DIPSTICK -LONG 5DEG E 320/04372	1	AVAILABLE TO ORDER	$56.35	Quantity
20	WA DIPSTICK BRACKET 332/E8906	1	AVAILABLE TO ORDER	$79.90	Quantity
30	BOLT FLANGED HEX M8 x 16 320/A0603	1	AVAILABLE TO ORDER	$0.78	Quantity

Showing 1 to 3 of 3 parts

DIAG-L140-1-1-395236 L140-1-1 DIPSTICK ASSEMBLY LONG
View Diagram
DIAG-L150-1-1-395236 L150-1-1 CRANKCASE VENTILATION BREATHER ASSEMBLY
View Diagram

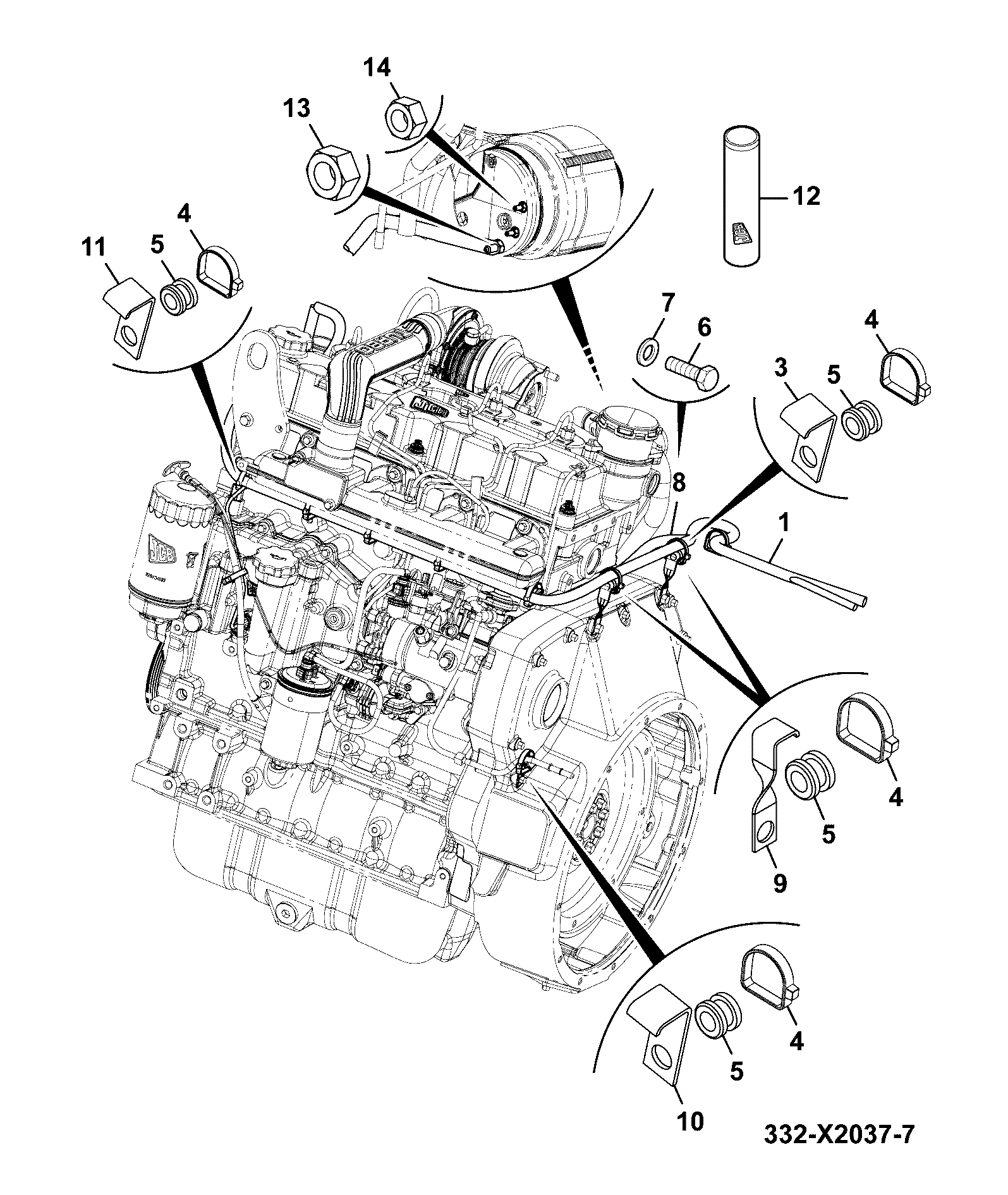

DIAG-L120-1-1-395236 L120-1-1 ELECTRICS ENGINE
