Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | ENGINE LOMBARDINI STAGE V 401/C3958 401/W7663 | 1 | $3,240.87 | |||
| 2 | ENGINE MOUNT CHANNEL 332/S2384 | 1 | $56.31 | |||
| 4 | BRACKET - THROTTLE CONTROL 333/A9337 | 1 | $20.30 | |||
| 5 | UNIVERSAL ENGINE COVER 341/00095 | 1 | $1,246.77 | |||
| 6 | WA - COOLER/EXHAUST DUCT 333/A9213 | 1 | $120.56 | |||
| 7 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 8 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 9 | SET SCREW M4x16 (P564) (Reinstate) 1315/9403Z | 1 | $0.81 | |||
| 10 | INTAKE TUBE WA 332/T7735 | 1 | $44.59 | |||
| 11 | NUT M4 STD SELF LOCK 1370/9403Z | 1 | $0.42 | |||
| 12 | SET-SCREW M_8 L-_40mm 1315/0310D | 1 | $17.79 | |||
| 13 | SETSCREW 5/16UNF x 1-1/2" 1305/0110Z | 1 | $1.64 | |||
| 14 | PUMP SPACER 332/S4908 | 1 | $34.42 | |||
| 15 | FAN SPACER 333/S5172 | 1 | $81.26 | |||
| 16 | ENGINE COVER 332/T3043 | 1 | $178.15 | |||
| 17 | INTAKE HOSE 332/T7769 | 1 | $27.29 | |||
| 18 | EXHAUST ABI 332/T2873 | 1 | $215.69 | |||
| 19 | BAND CLAMP 34/37 DIA. MIKALOR 332/T6881 | 1 | $23.31 | |||
| 20 | CAP-SCREW M_8 L-_25mm 1391/3307D | 1 | $3.61 | |||
| 21 | PULL CABLE 332/S4809 | 1 | $67.63 | |||
| 22 | LABEL - ENGINE STOP 332/S4913 | 1 | $3.61 | |||
| 23 | BONNET STAY 332/R7036 | 1 | $124.15 | |||
| 24 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $1.25 | |||
| 25 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $0.48 | |||
| 26 | BUMP STOP M6 333/A6193 | 1 | $7.18 | |||
| 28 | P-CLIP - 13mm 821/10087 | 1 | $12.69 | |||
| 29 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.22 | |||
| 30 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.17 | |||
| 31 | BONNET SEAL 904/20317 | 1 | $22.56 | |||
| 32 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.45 | |||
| 33 | PULSE BUZZER 12v 704/26400 | 1 | $113.32 | |||
| 34 | (P) SCREW M5x16 BUTTON HEAD 826/01283 | 1 | $10.11 | |||
| 35 | NUT M5 STD SELF LOCK(KANBAN) 1370/0003Z | 1 | $1.72 | |||
| 36 | HARNESS - DUMPSTER 335/G0930 | 1 | $83.26 | |||
| 37 | EDGE PROTECTION 401/M1941 | 1 | $6.14 | |||
| 38 | CLIP WORMDRIVE WF 25/40mm 333/R7966 | 1 | $10.95 | |||
| 40 | FOAM 400 x 200 333/N6555 | 1 | $13.16 | |||
| 41 | FOAM 180 x 150 333/N6556 | 1 | $5.06 | |||
| 42 | FOAM 300 x 150 333/N6557 | 1 | $8.12 | |||
Showing 1 to 39 of 39 parts
Related Assemblies
-

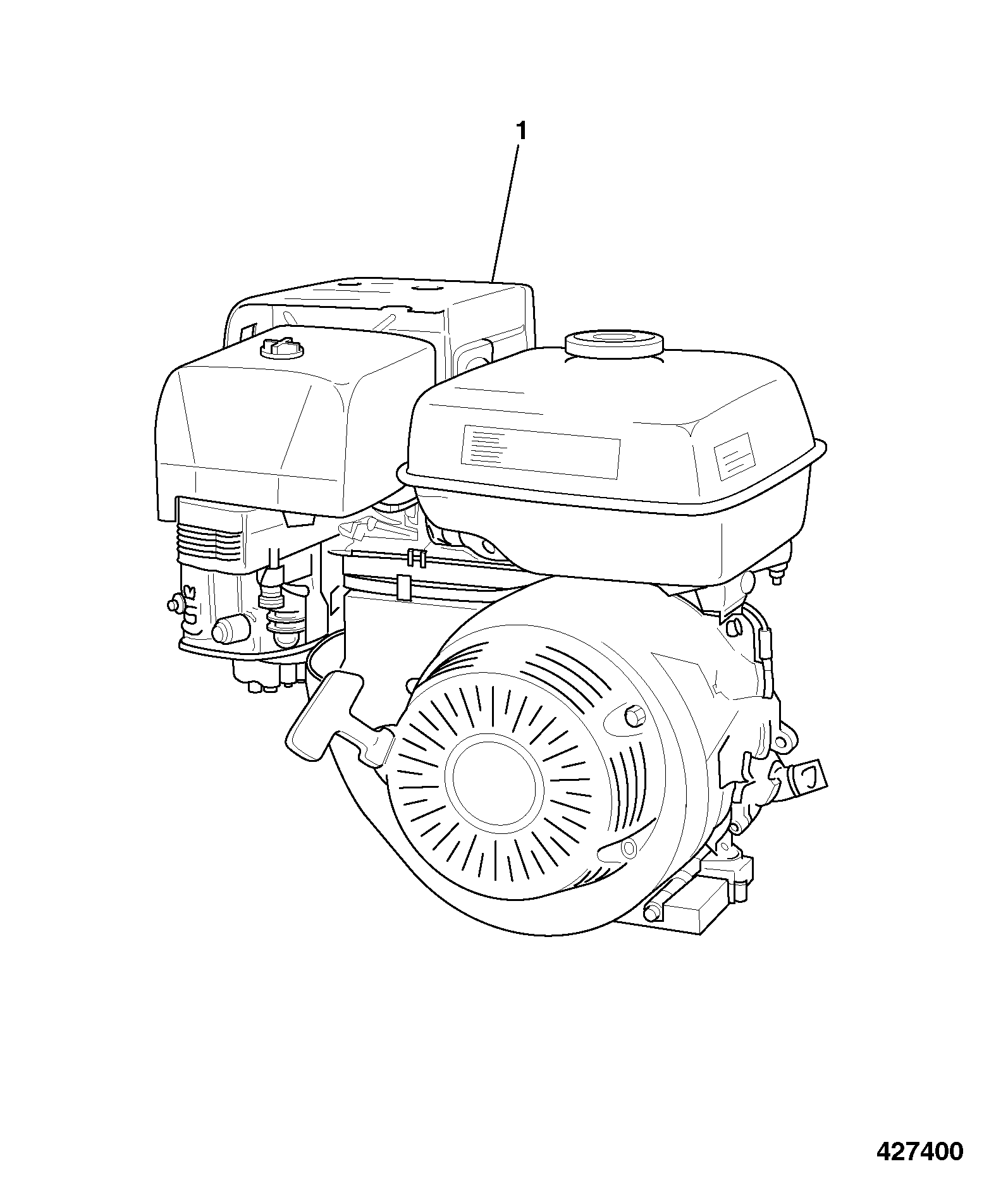

DIAG-L110-1-1-399304 L110-1-1 ENGINE ASSEMBLIES RECOIL START - HONDA
