Kubota RTV-X CAB / RTVX2C-SCLA2-1 / PCLA-1 / PCLAS-1 L11003 BOX PLATE (FRONT) [BED LINER] [FSG] Parts Diagram

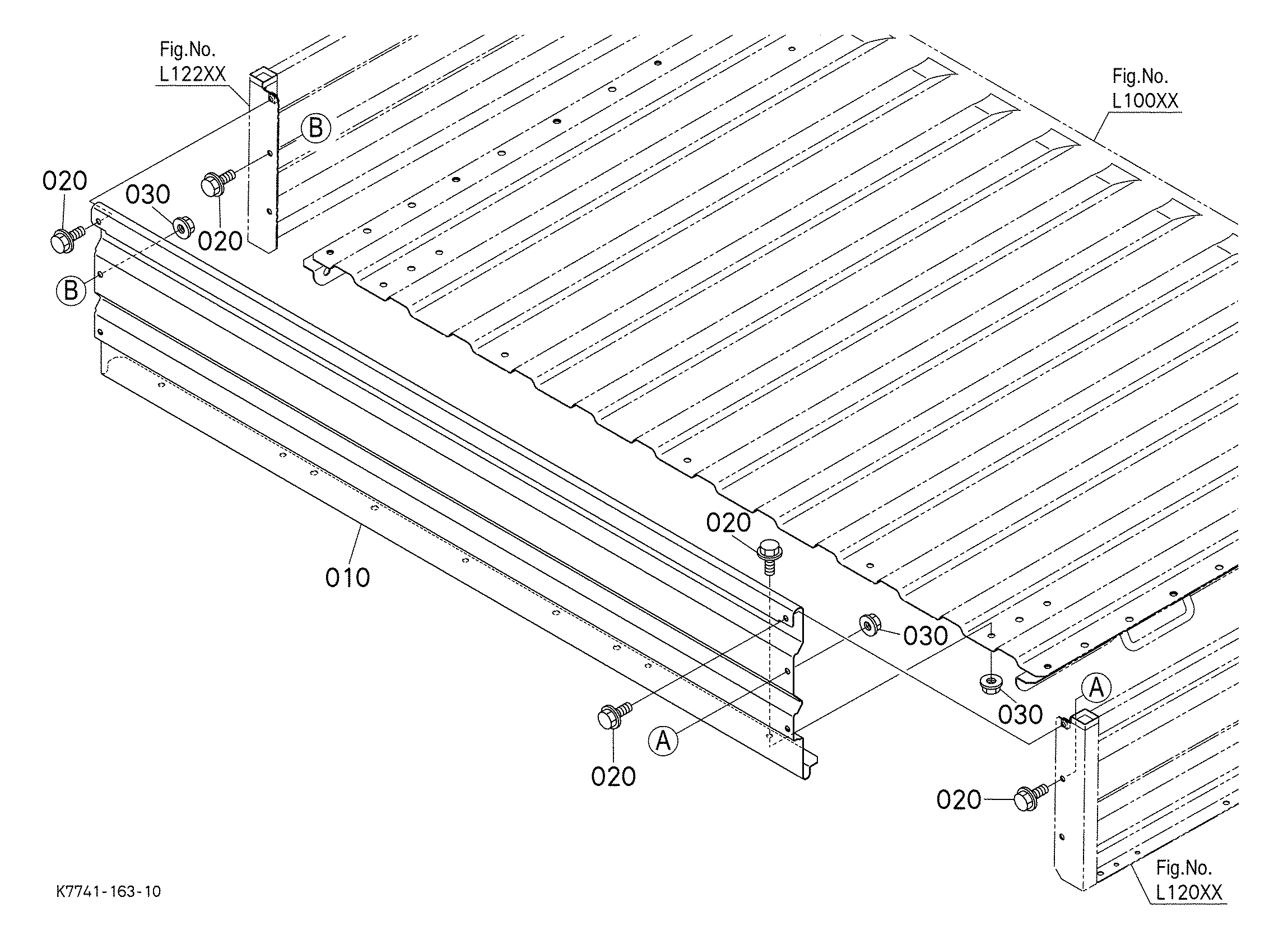

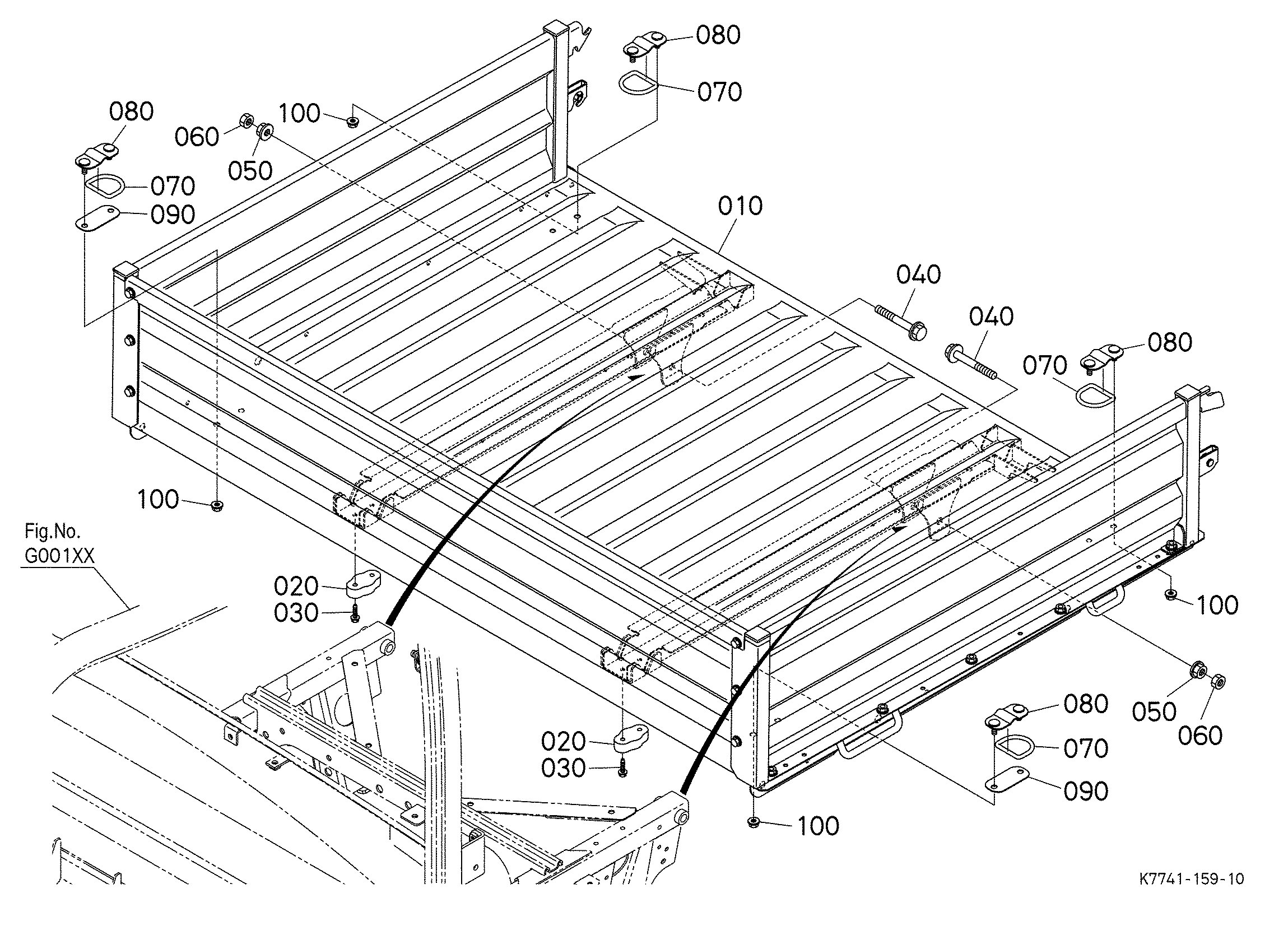

Exploded-view parts diagram "L11003 BOX PLATE (FRONT) [BED LINER] [FSG]" for the Kubota RTV-X CAB / RTVX2C-SCLA2-1 / PCLA-1 / PCLAS-1 and Kubota RTV-X CAB / RTVX2C-SKH-1 / SKLH-1 / PKLH-1 / PKLHS-1. 9 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PLATE(FRONT) K7121-58200 | 1 | $72.14 | |||
| 020 | Pipe Plug K7571-58170 K7121-58810 | 1 | $0.72 | |||
| 030 | Flange Bolt 01754-60820 01754-70820 | 1 | $4.09 | |||
| 040 | Flange Bolt 01754-70825 | 1 | $4.19 | |||
| 050 | Nut Fastener 15021-05280 02552-50080 | 1 | $0.60 | |||
| 060 | FRAME(FRONT,LH) K7121-58210 | 1 | $40.59 | |||
| 070 | FRAME(FRONT,RH) K7121-58220 | 1 | $40.59 | |||
| 080 | PLATE(REINFORCEMENT, K7121-58280 | 1 | $25.94 | |||
| 090 | PLATE(REINFORCEMENT, K7121-58270 | 1 | $25.94 | |||
Showing 1 to 9 of 9 parts
