Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET, DRAWBAR 3C001-89322 | 1 | $817.60 | |||
| 020 | 2-1/2 in. Stud 32530-27410 | 1 | $19.55 | |||
| 030 | Plate Spring RD451-19140 | 1 | $9.64 | |||
| 040 | NUT 36500-49390 | 1 | $8.66 | |||
| 050 | Bolt 01138-51640 | 1 | $3.44 | |||
| 060 | BRACKET, TENSION 3C001-89332 | 1 | $206.61 | |||
| 070 | BRACKET, TENSION 3C001-89342 | 1 | $218.72 | |||
| 090 | Spring Washer 04512-50160 04512-70160 | 1 | $1.05 | |||
| 100 | NUT 02176-50160 | 1 | $2.26 | |||
| 110 | BOLT 01138-61645 01138-51645 | 1 | $3.29 | |||
| 120 | BOLT 01138-51635 | 1 | $2.95 | |||
| 130 | DRAWBAR 3A111-89120 | 1 | $362.11 | |||
| 140 | PIN, DRAWBAR 32530-71760 | 1 | $24.25 | |||
| 150 | PIN,SNAP 3C294-89370 | 1 | $11.77 | |||
| 160 | PIN, JOINT 05122-52070 | 1 | $12.24 | |||
| 170 | Replacement Pin 05515-51600 | 1 | $1.73 |
Showing 1 to 16 of 16 parts
Related Assemblies
-

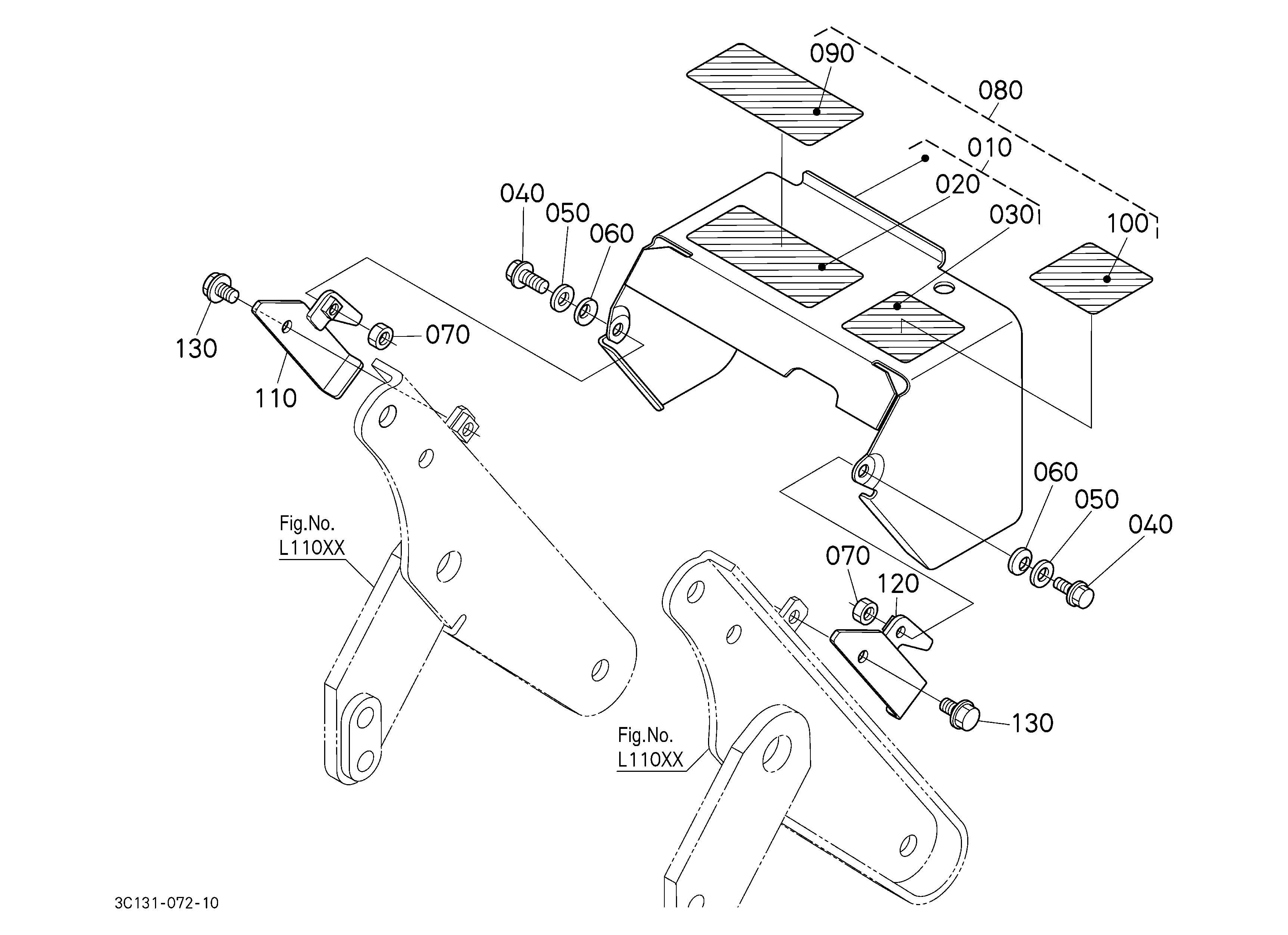

DIAG-L17000-93290 L17000 PTO PROTECTOR
View Diagram -

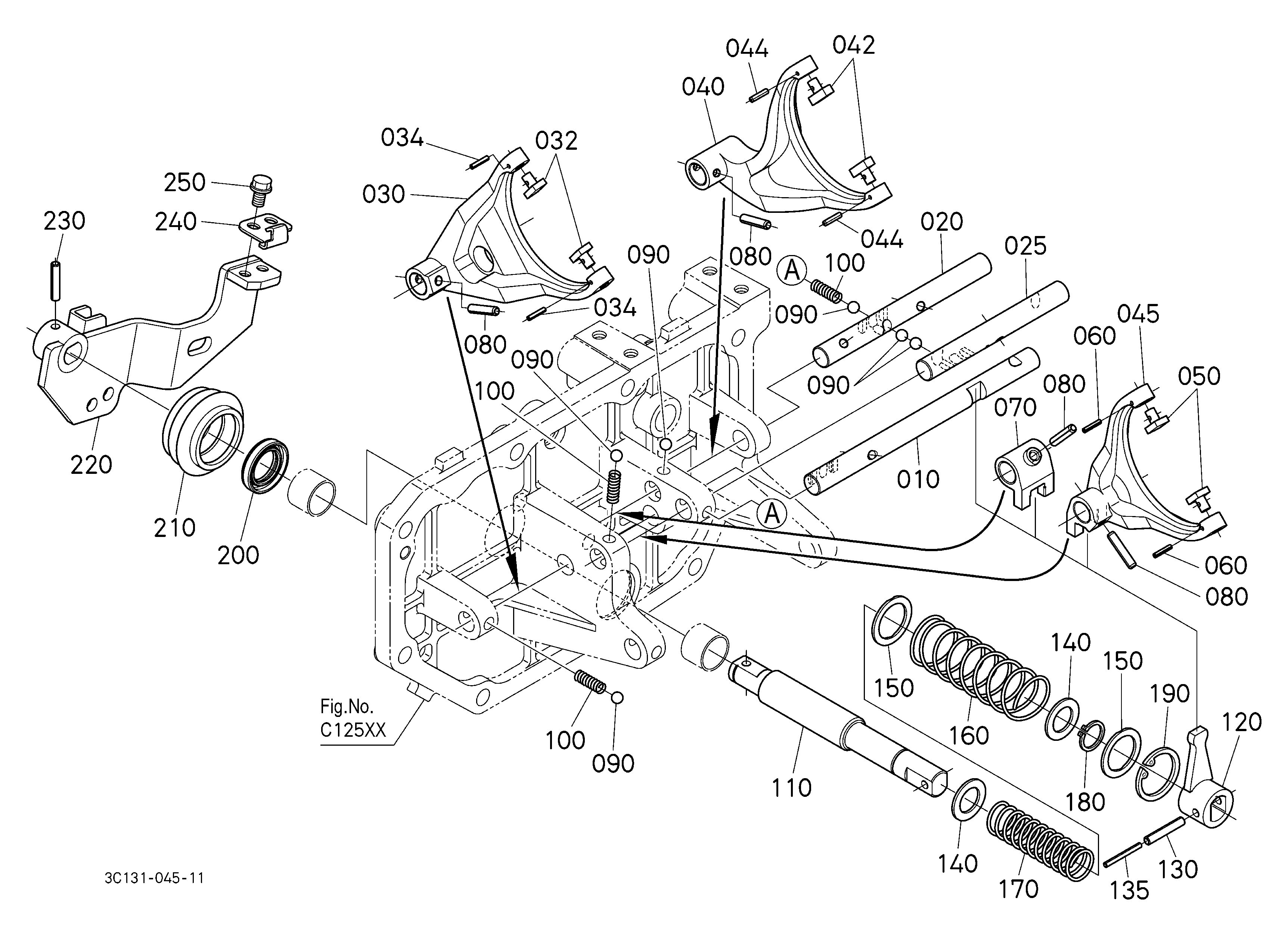

DIAG-D41000-93290 D41000 MAIN GEAR SHIFT FORK
View Diagram -

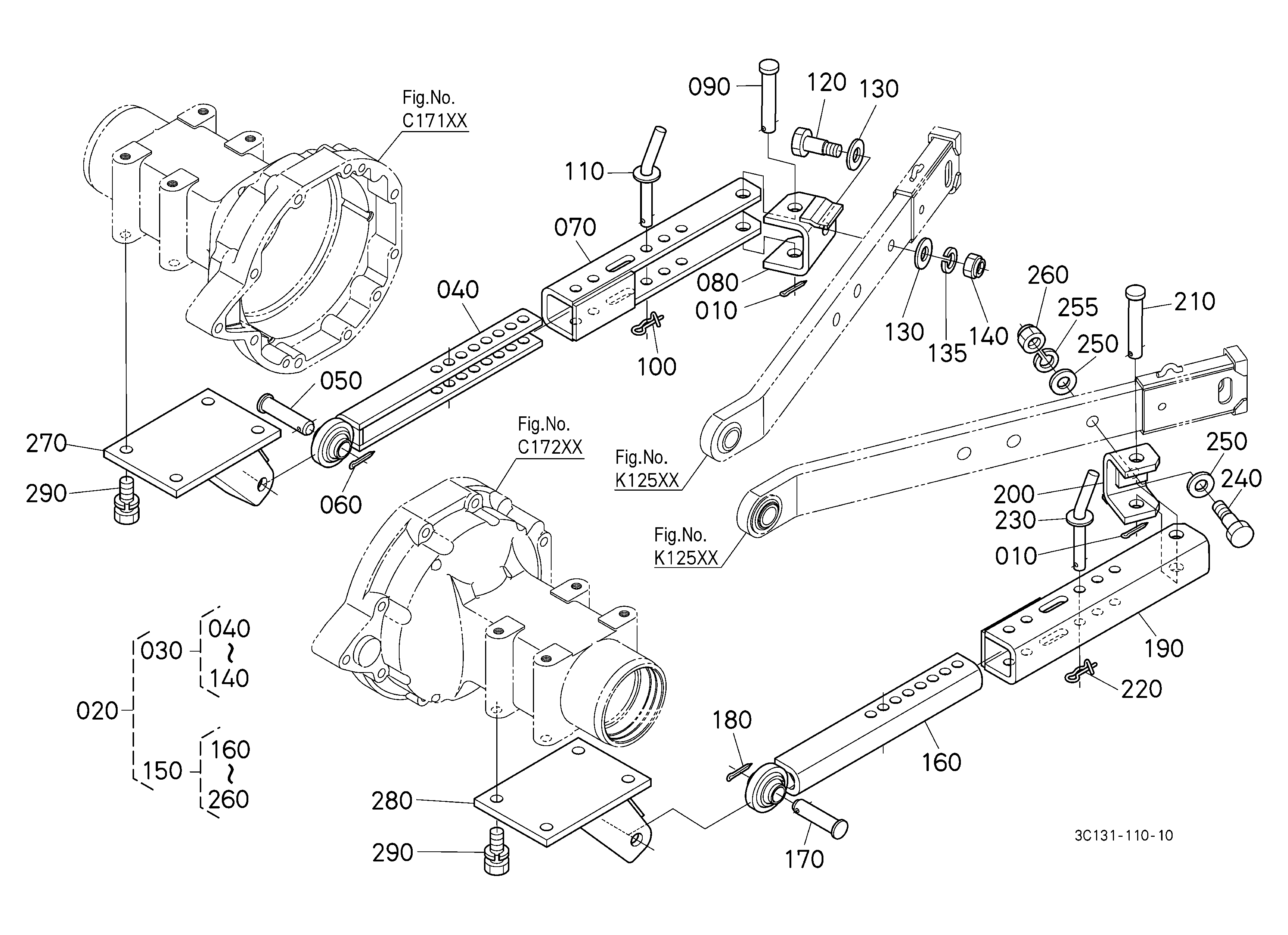

DIAG-K13300-93290 K13300 STABILIZER
