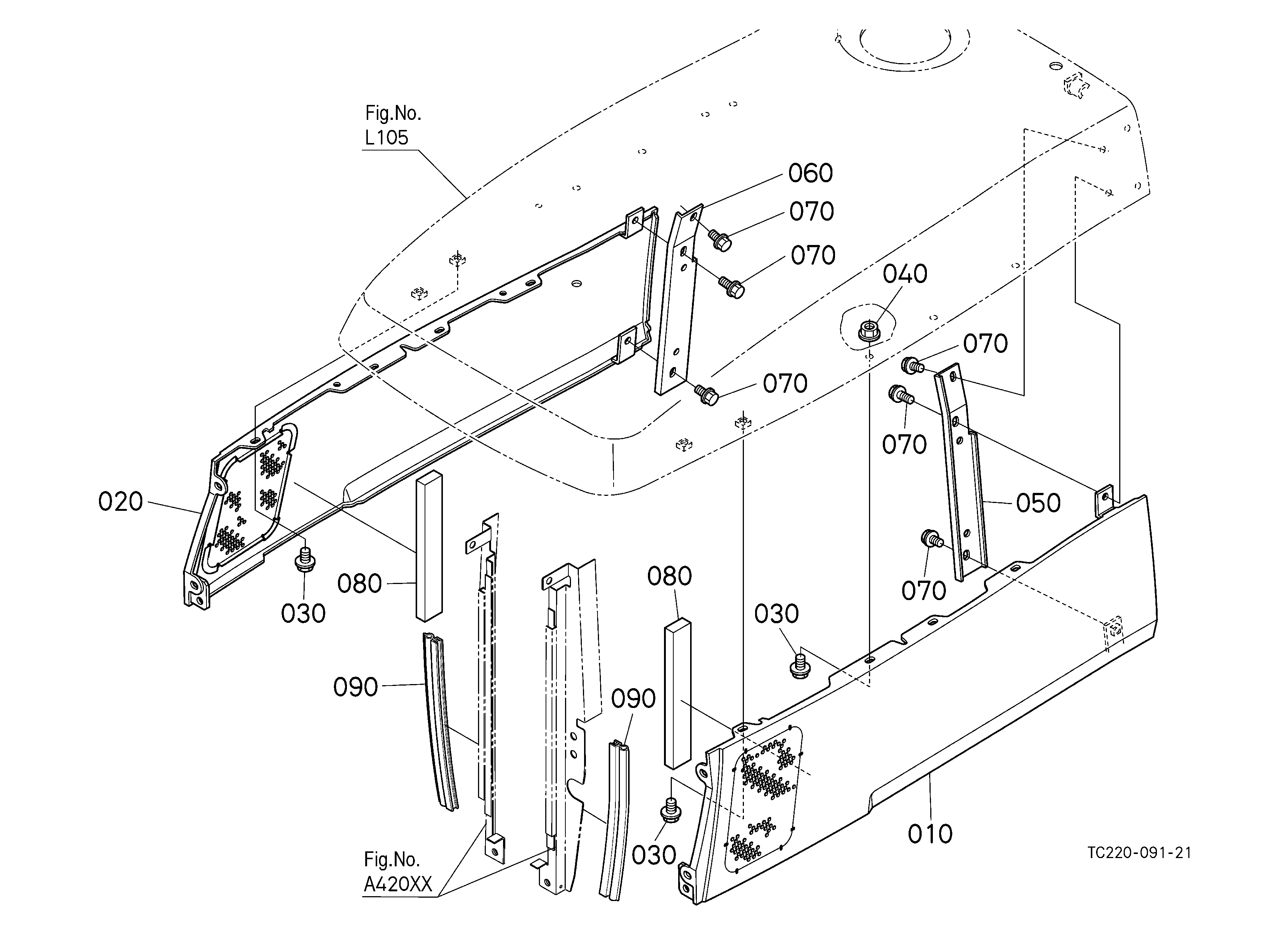

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BONNET (FRONT, L TC230-41060 TC230-41062 | 1 | $114.24 | |||
| 020 | BONNET, FRONT RH TC230-41080 TC230-41082 | 1 | $106.37 | |||
| 030 | BONNET (FRONT,R) TC230-41090 TC230-41092 | 1 | $106.37 | |||
| 040 | Flange Bolt 01754-50612 | 1 | $2.09 | |||
| 050 | SUPPORT, FRONT TC220-18314 TC220-18350 | 1 | $397.62 | |||
| 060 | Bolt - Equipment Fastener 01130-51025 01133-51025 | 1 | $1.65 | |||
| 070 | STAY TC220-18320 | 1 | $9.97 | |||
| 090 | KIT (TC220-41390 TC220-41390 07933-00020 | 1 | $2.80 | |||
| 100 | CUSHION (BONNET, TC220-41072 TC230-41070 | 1 | $35.73 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-
DIAG-L10500-85341 L10500 HOOD(BONNET)
View Diagram -
DIAG-L10100-85341 L10100 FRONT GRILLE
View Diagram -
DIAG-L11000-85341 L11000 HOOD(BONNET) SIDE
View Diagram
