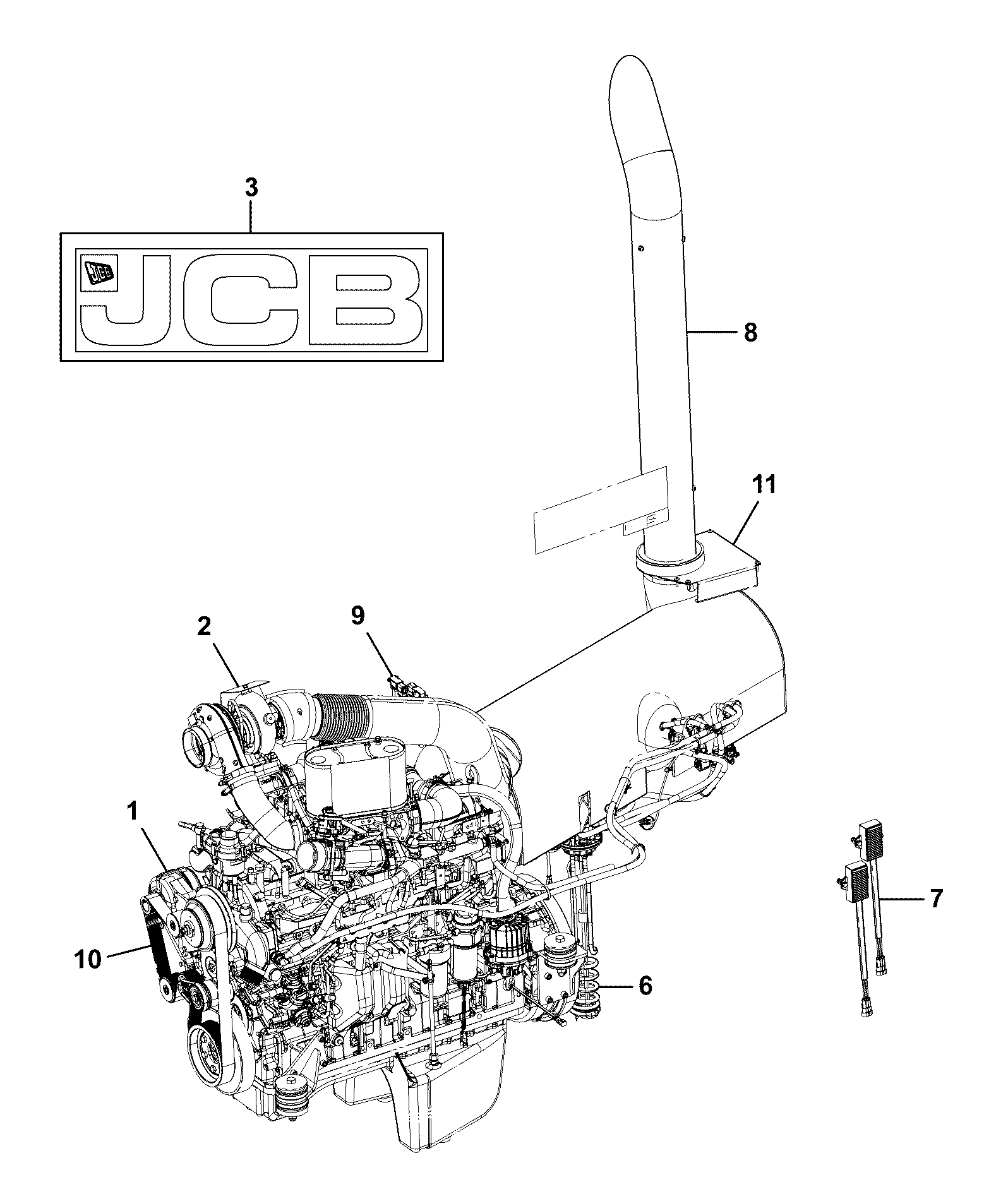

L100-25-1 ENGINE INSTALLATION ASSEMBLIES ENGINE 209KW Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
2	DEF SUPPLY MODULE 400/W3319	1	AVAILABLE TO ORDER	$1,595.69	Quantity
3	DEF DOSING MODULE 12.4 400/U8463	1	AVAILABLE TO ORDER	$1,785.81	Quantity
4	NOx SENSOR 400/T7671	1	AVAILABLE TO ORDER	$1,349.57	Quantity
5	8000 STAGE V SCR CAN 400/Z2507	1	AVAILABLE TO ORDER	$20,624.74	Quantity
7	EAT PRESSURE SENSOR 400/M9122	1	AVAILABLE TO ORDER	$125.61	Quantity

Showing 1 to 5 of 5 parts
