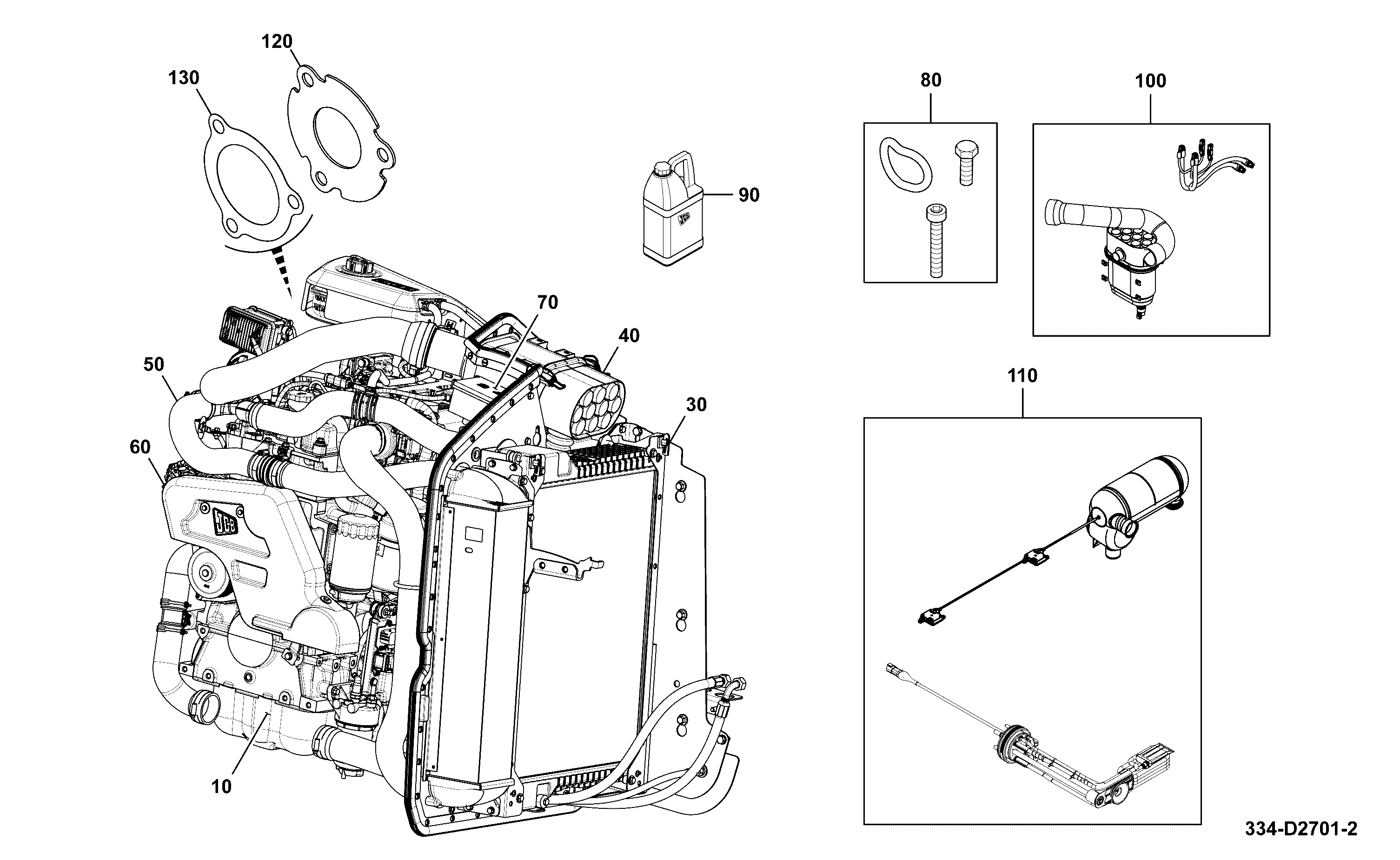

L100-200-1 ENGINE INSTALLATION ASSEMBLIES 108KW, REVERSE FAN , TIER 4 FINAL Parts Diagram | JCB

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	ENGINE 448-T4--108-12V-L1A-US 320/40921	1	AVAILABLE TO ORDER	$40,525.20	Quantity
120	TURBO ORIFICE PLATE -48mm 334/D4891	1	AVAILABLE TO ORDER	$28.77	Quantity
130	GASKET TURBO EXHAUST 320/06036	1	11 IN STOCK	$5.25	Quantity

Showing 1 to 3 of 3 parts
