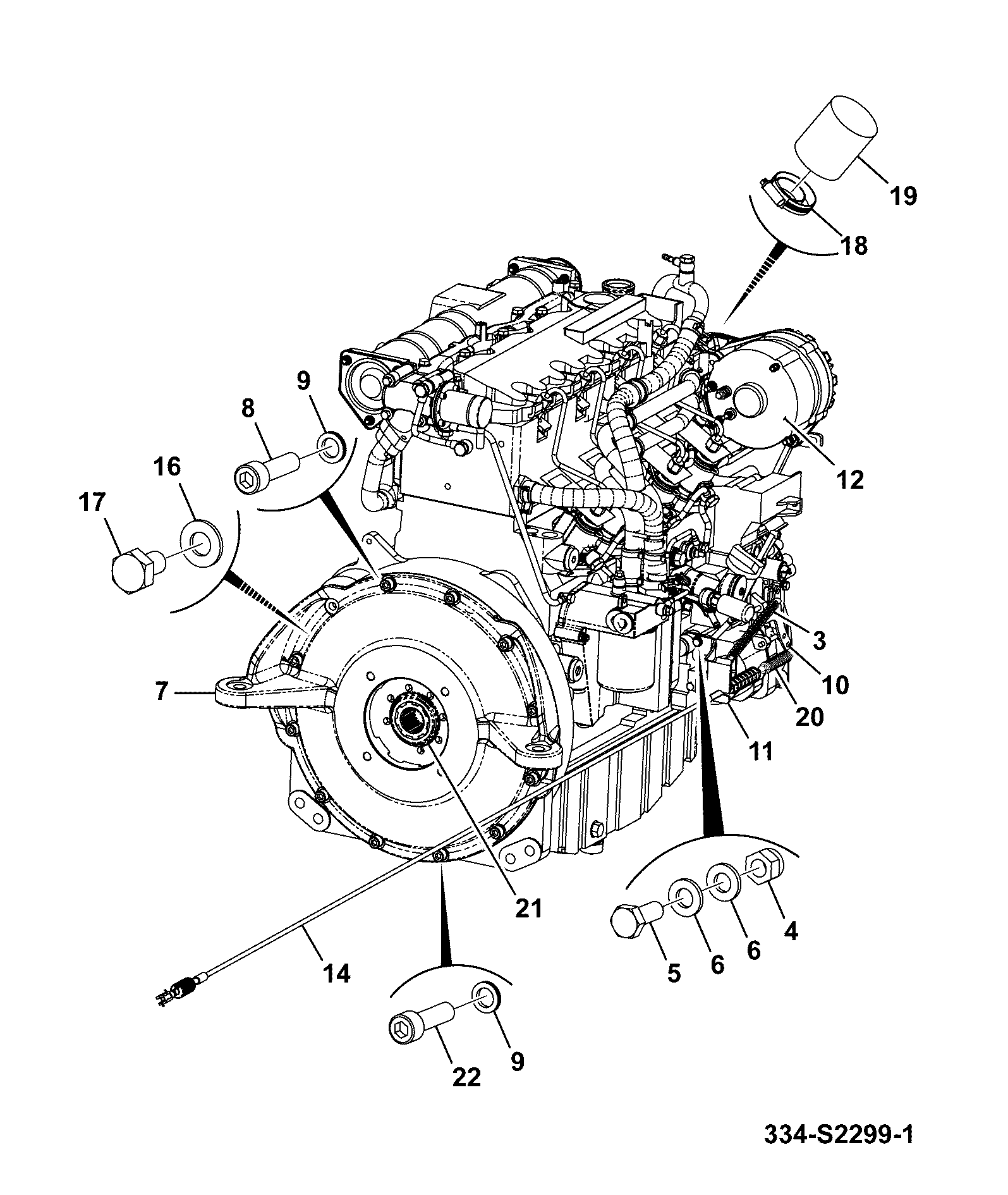

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3 | SPRING THROTTLE RE 814/00420 | 1 | $26.23 | |||
| 4 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 5 | SET SCREW M6 X 16 GRADE 8.8 1315/0203Z 1315/0203D | 1 | $0.54 | |||
| 6 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 7 | MACHINING - ENGINE MOUNT 332/W2856 | 1 | $634.87 | |||
| 8 | CAP SCREW M10x35 (P960) 1391/3409D | 1 | $4.90 | |||
| 9 | WASHER LOCK M10 823/10261 | 1 | $5.93 | |||
| 10 | THROTTLE LEVER, ENGINE 331/47923 | 1 | $5.27 | |||
| 11 | THROTTLE REACTION BKT 333/P1500 | 1 | $458.22 | |||
| 12 | DEUTZ 2011 TIER 3 -2012 SPEC 333/V6029 | 1 | $12,803.81 | |||
| 14 | TLT 35D THROTTLE CABLE 332/T4376 | 1 | $93.17 | |||
| 16 | WASHER M10 1422/0008D JHP0046 | 1 | $11.36 | |||
| 18 | (W) CLIP - WORMDRIVE 16/27mm(KANBAN) 2201/0005 | 1 | $5.10 | |||
| 19 | (W) (P) HEATER HOSE BLANK (P564) 834/11522 | 1 | $16.25 | |||
| 20 | SPRING - OVERLOAD 814/00289 | 1 | $17.54 | |||
| 21 | DRIVE COUPLING 332/L0207 | 1 | $722.29 | |||
| 22 | CAP SCREW M10x30 1391/3408D | 1 | $4.12 | |||
Showing 1 to 17 of 17 parts
