Scroll to zoom Click a part # to view details

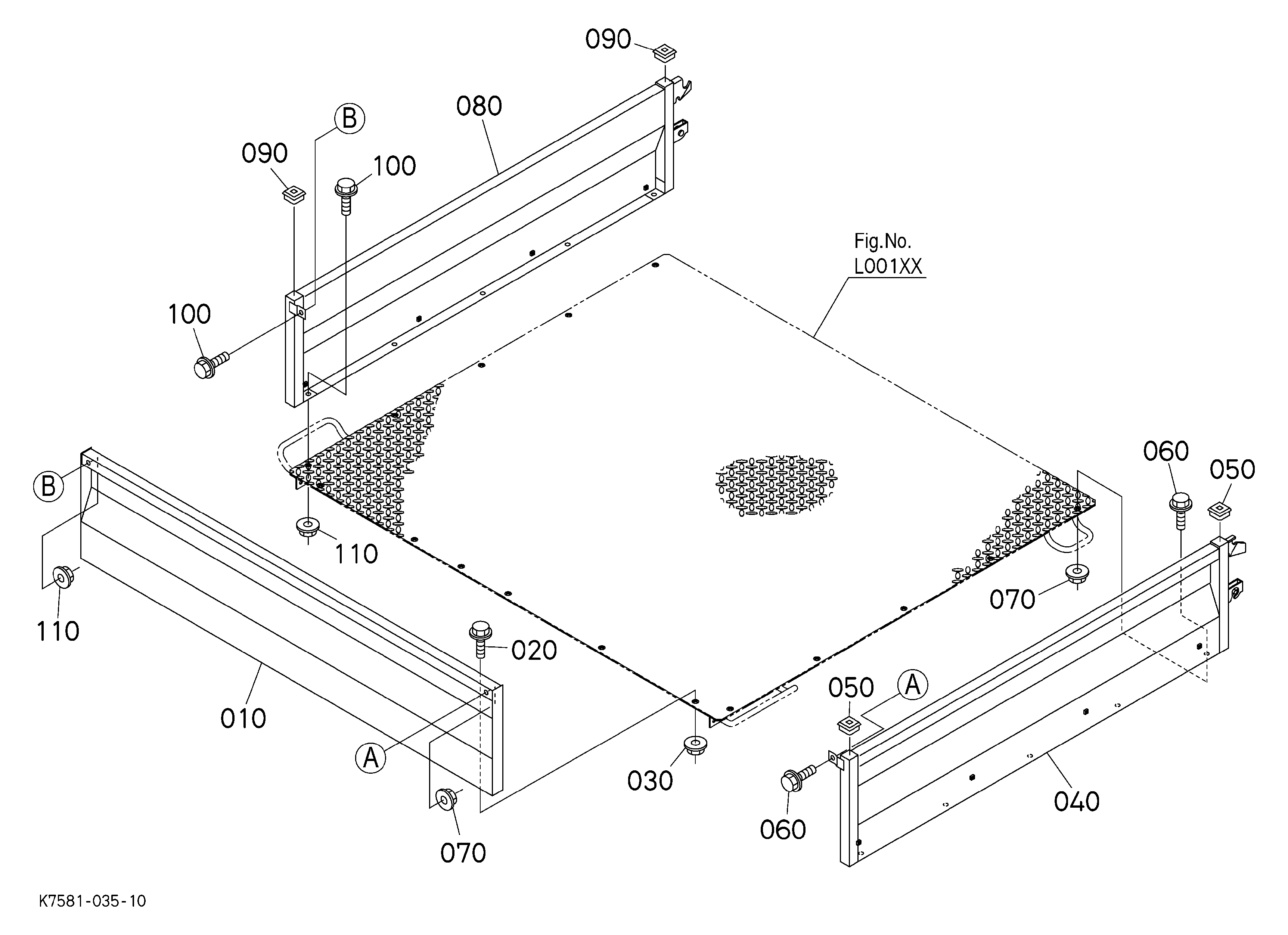

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY GATE, CARGO K7581-58900 | 1 | $1,064.68 | |||
| 020 | Disk Spring 65601-42340 | 1 | $3.45 | |||
| 030 | BRACKET, GATE K7561-58163 | 1 | $10.04 | |||
| 040 | BOLT 01754-60825 Discontinued | 1 | $2.36 | |||
| 050 | NUT, FLANGE 02751-60080 02751-70080 | 1 | $4.62 | |||
| 060 | CAP, GATE K7561-58260 K7561-58262 | 1 | $2.32 | |||
| 070 | Cargo Bed Box Gate / Luggage Carrier Gate Part K7571-58270 K7571-58273 | 1 | $7.65 | |||
| 080 | Washer 04717-00100 04717-01000 | 1 | $2.26 | |||
| 090 | Split Pin (Cotter Pin) 05511-50320 | 1 | $0.36 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-
DIAG-L01001-86205 L01001 BOX GATE [EXCEPT BED LINER]
View Diagram -
DIAG-L02003-86205 L02003 BOX COVER [EXCEPT BED LINER]
View Diagram -
DIAG-L00500-86205 L00500 BOX PLATE [EXCEPT BED LINER]
View Diagram
