Scroll to zoom Click a part # to view details

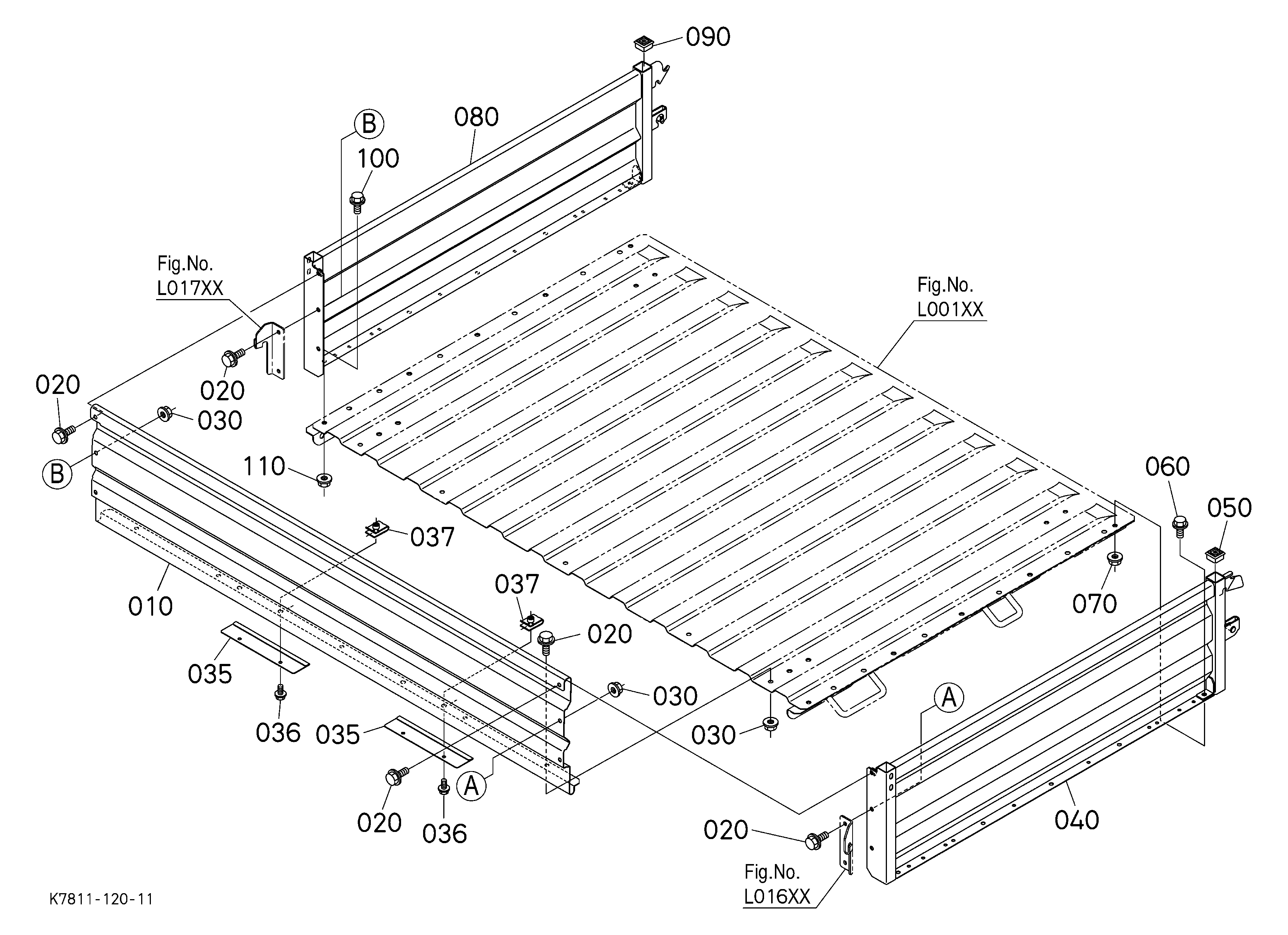

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PLATE(CARGO,GATE) K7591-58940 K7591-58942 | 1 | $676.17 | |||
| 020 | BRACKET(GATE) K7811-58380 | 1 | $9.47 | |||
| 030 | BUSHING(FLANGE,1 K7811-58390 | 1 | $3.12 | |||
| 040 | Disk Spring 65601-42340 | 1 | $3.45 | |||
| 050 | WASHER, FLAT WID 75599-32114 | 1 | $0.64 | |||
| 060 | Flange Bolt 01754-60820 01754-70820 | 1 | $4.09 | |||
| 070 | NUT, FLANGE 02751-60080 02751-70080 | 1 | $4.62 | |||
| 080 | CAP, GATE K7561-58260 K7561-58262 | 1 | $2.32 | |||
| 090 | ARM(GATE,LH) K7591-58570 | 1 | $27.00 | |||
| 100 | COLLAR, ARM K7561-58230 | 1 | $9.42 | |||
| 110 | SPRING (LH) * K7561-58210 K7561-58212 | 1 | $1.62 | |||
| 120 | S12EW, CR-REC-BD 03017-50840 | 1 | $1.06 | |||
| 130 | Cap Nut 34070-71060 | 1 | $2.50 | |||
| 140 | ARM(GATE,RH) K7591-58580 | 1 | $25.01 | |||
| 160 | SPRING (RH) * K7561-58220 K7561-58222 | 1 | $1.62 | |||
| 190 | Box Gate Wire K7591-58410 | 1 | $11.36 | |||
| 200 | WASHER(CARGO,WIRE) K7311-58510 | 1 | $2.18 | |||
| 210 | Split Pin (Cotter Pin) 05511-50320 | 1 | $0.36 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-
DIAG-L00601-194697 L00601 BOX PLATE (FRONT LOWER/LEFT/RIGHT)
View Diagram -

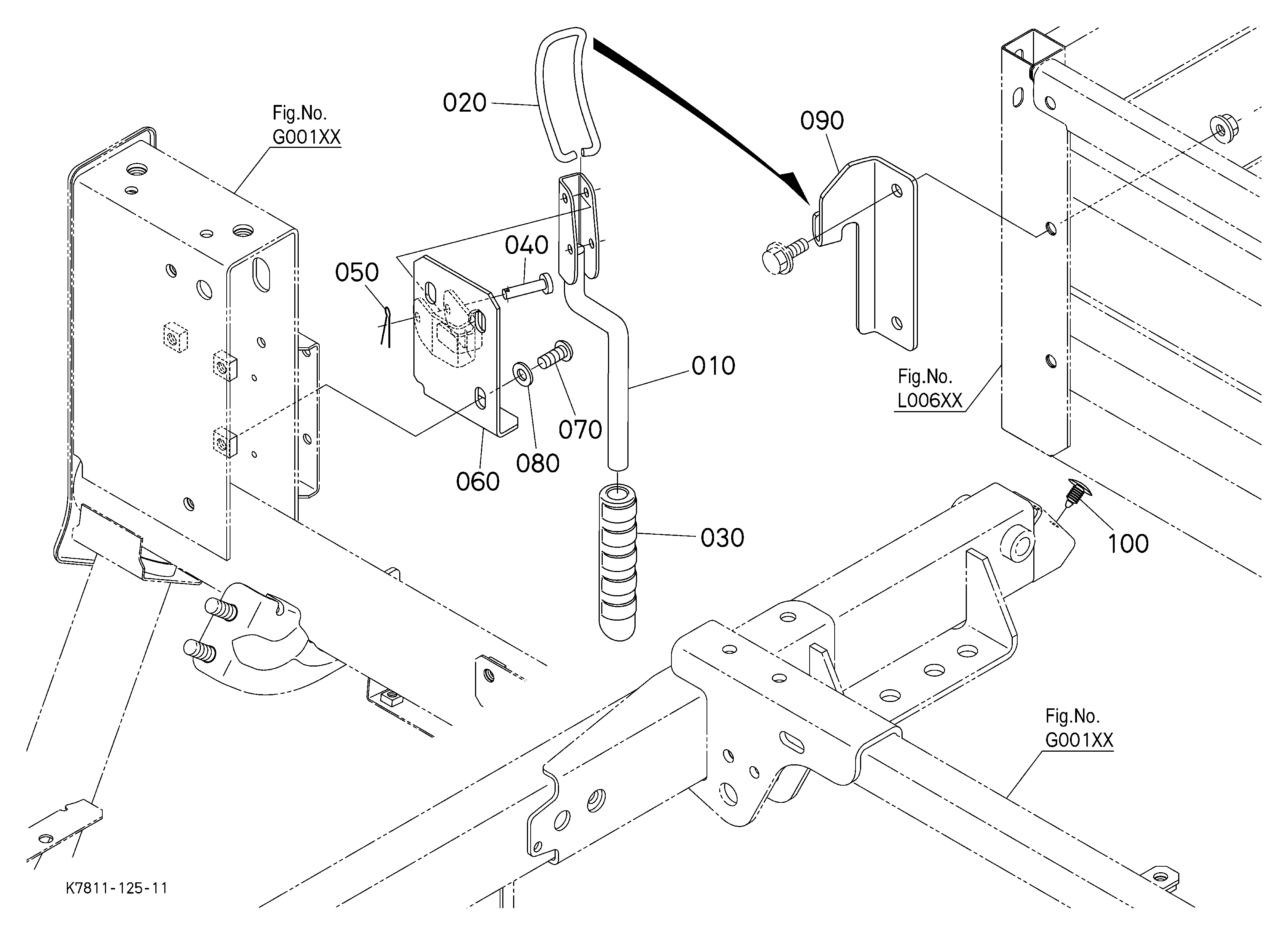

L01601 BOX GATE LOCK (LEFT)
View Diagram -
DIAG-L01701-194697 L01701 BOX GATE LOCK (RIGHT)
View Diagram
