Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PLATE(CARGO,GATE) K7591-58940 K7591-58942 | 1 | $676.17 | |||
| 020 | BRACKET(GATE) K7591-58380 | 1 | $6.44 | |||
| 030 | Disk Spring 65601-42340 | 1 | $3.45 | |||
| 040 | Plain Washer 04015-50120 | 1 | $0.92 | |||
| 050 | Bolt Fastener 01754-50820 | 1 | $4.70 | |||
| 060 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 070 | CAP, GATE K7561-58260 K7561-58262 | 1 | $2.32 | |||
| 080 | ARM(GATE,LH) K7591-58570 | 1 | $27.00 | |||
| 090 | COLLAR, ARM K7561-58230 | 1 | $9.42 | |||
| 100 | SPRING (LH) * K7561-58210 K7561-58212 | 1 | $1.62 | |||
| 110 | S12EW, CR-REC-BD 03017-50840 | 1 | $1.06 | |||
| 120 | Cap Nut 34070-71060 | 1 | $2.50 | |||
| 130 | ARM(GATE,RH) K7591-58580 | 1 | $25.01 | |||
| 150 | SPRING (RH) * K7561-58220 K7561-58222 | 1 | $1.62 | |||
| 180 | Box Gate Wire K7591-58410 | 1 | $11.36 | |||
| 190 | Washer 04717-00100 04717-01000 | 1 | $2.26 | |||
| 190 | WASHER(CARGO,WIRE) K7311-58510 | 1 | $2.18 | |||
| 200 | Split Pin (Cotter Pin) 05511-50320 | 1 | $0.36 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

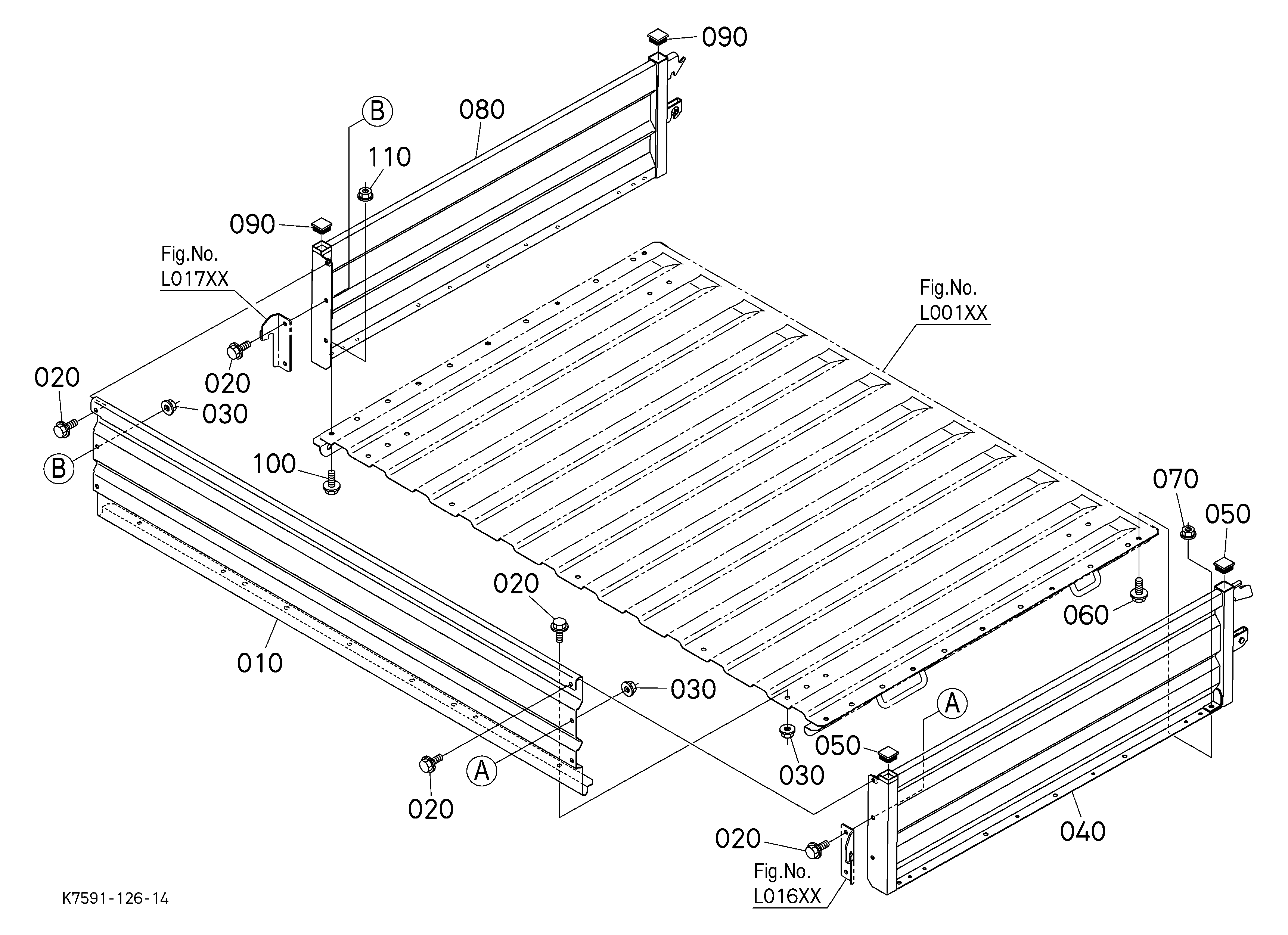

DIAG-L00501-194382 L00501 BOX PLATE [EXCEPT BED LINER]
View Diagram -
DIAG-L01600-194382 L01600 BOX GATE LOCK (LEFT)
View Diagram -
DIAG-L00102-194382 L00102 LUGGAGE CARRIER BASE
View Diagram
