Kubota RTV900R9 L00103 BOX [HYDRO LIFT TYPE] [BED LINER] Parts Diagram

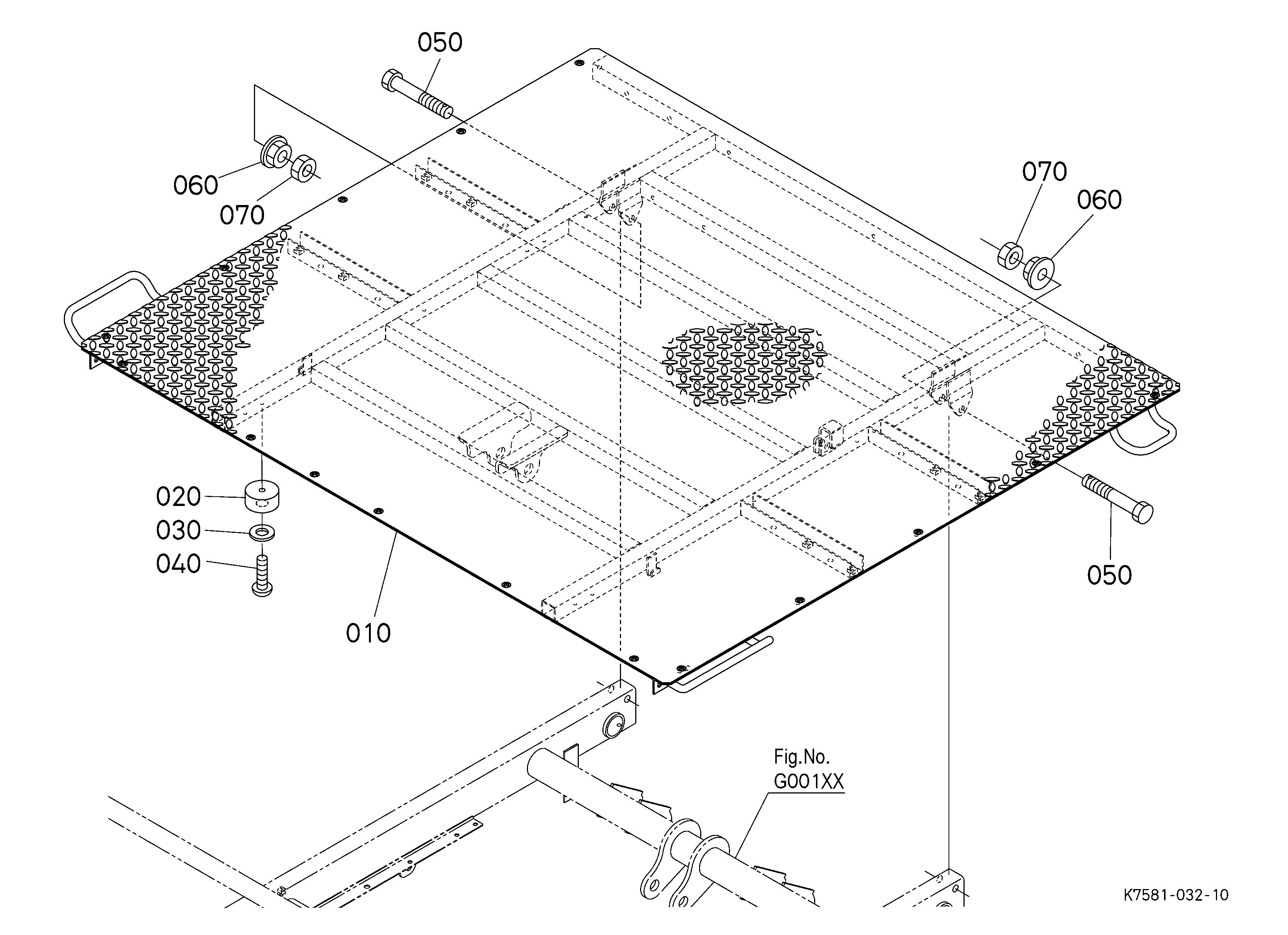

Exploded-view parts diagram "L00103 BOX [HYDRO LIFT TYPE] [BED LINER]" for the Kubota RTV900R9, Kubota RTV900W9 and Kubota RTV900W9SE. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY BED, CARGO K7581-58400 K7581-58404 | 1 | $4,326.22 | |||
| 020 | CUSHION(CARGO) K7561-58252 | 1 | $4.05 | |||
| 030 | Plain Washer (Flat Washer) 04013-60060 04013-70060 | 1 | $0.60 | |||
| 040 | Tapping Screw 03714-50620 | 1 | $1.06 | |||
| 050 | BOLT K7561-18560 | 1 | $3.50 | |||
| 060 | Flange Nut 66071-41030 02771-50120 | 1 | $3.15 | |||
| 070 | Nut Fastener for Equipment Assemblies 02173-50120 02174-50120 | 1 | $0.87 | |||
Showing 1 to 7 of 7 parts
