Scroll to zoom Click a part # to view details

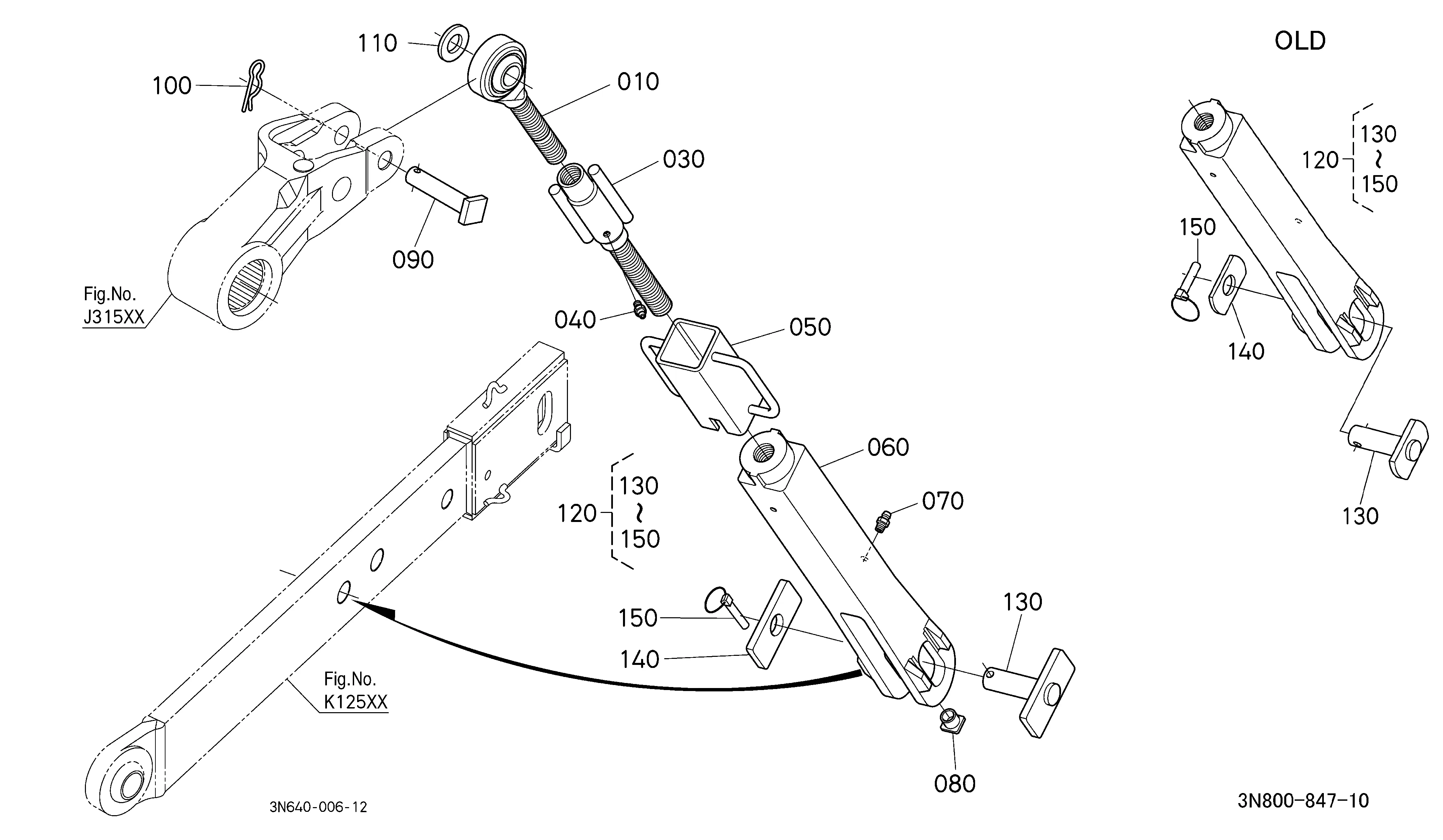

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY STABILIZER 3N600-92603 | 1 | $725.52 | |||
| 020 | JOINT 3N300-92512 | 1 | $178.01 | |||
| 025 | PIN, JOINT 3N999-00360 | 1 | $58.52 | |||
| 030 | JOINT, STABILIZE 3N600-92520 | 1 | $159.29 | |||
| 040 | BRACKET (1, STAB 3N600-92530 | 1 | $443.09 | |||
| 050 | BRACKET 3,STABIL 3A111-92540 | 1 | $37.85 | |||
| 060 | PIN 05122-51870 | 1 | $15.11 | |||
| 070 | Cotter Pin 05511-10430 05511-50430 | 1 | $0.41 | |||
| 080 | PIN 3A111-92270 70388-58770 | 1 | $13.10 | |||
| 090 | Split Pin 05515-61200 05515-51200 | 1 | $1.89 | |||
| 100 | ASSY STABILIZER 3N600-92503 | 1 | $725.52 | |||
| 190 | BOLT,STABILZER 3A111-92170 | 1 | $28.35 | |||
| 200 | NUT, LOCK 02576-50180 | 1 | $2.38 | |||
| 210 | Spring Washer 04512-50180 | 1 | $0.60 | |||
| 220 | Plain Washer (Flat Washer) 04013-50180 | 1 | $0.60 |
Showing 1 to 15 of 15 parts
Related Assemblies
-

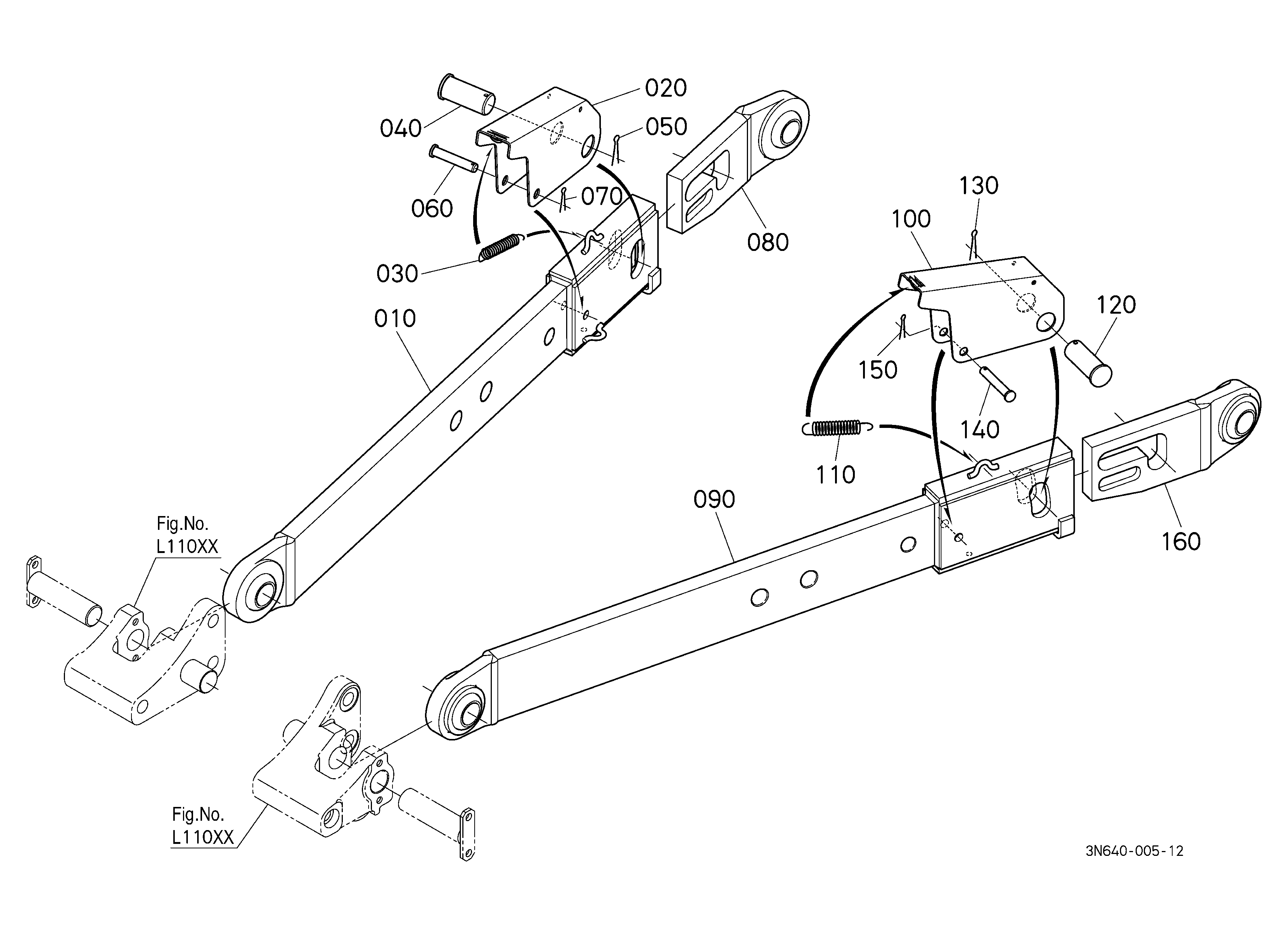

DIAG-K12500-194348 K12500 LOWER LINK
View Diagram -
DIAG-K14000-194348 K14000 LIFT ROD RH
View Diagram -

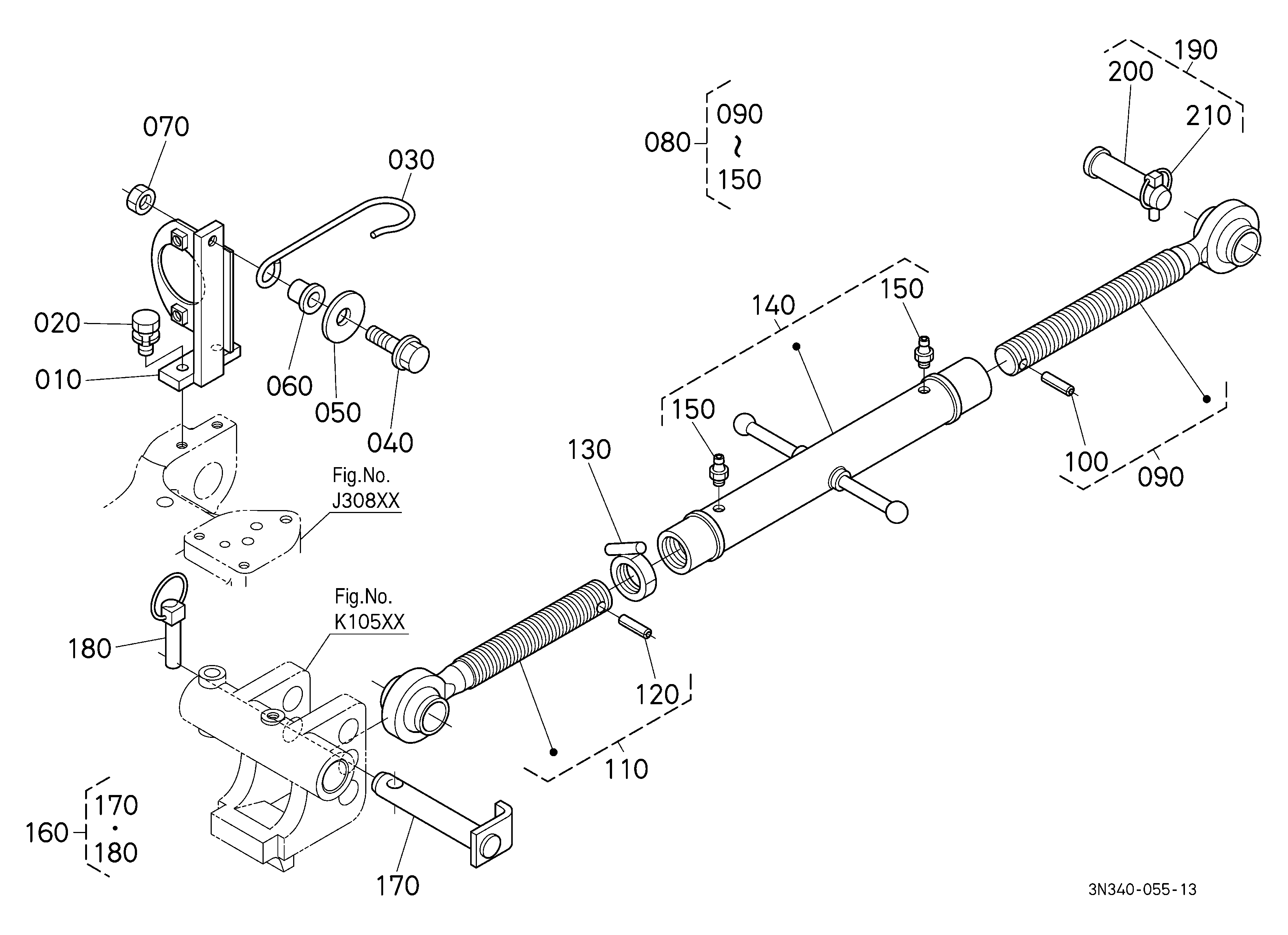

DIAG-K11000-194348 K11000 TOP LINK
