Kubota L5240HSTC-3 K12501 PTO PROTECTOR [A] Parts Diagram
Exploded-view parts diagram "K12501 PTO PROTECTOR [A]" for the Kubota L5240HSTC-3 and Kubota L5740HSTC-3. 7 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT COVER, PTO ( TD161-99630 TD170-99632 | 1 | $215.61 | |||
| 020 | Bolt 01130-51020 01133-51020 | 1 | $2.17 | |||
| 030 | Plain Flat Washer 04015-50100 | 1 | $0.60 | |||
| 040 | SPRING 31351-17440 | 1 | $5.73 | |||
| 050 | COLLAR * TD060-23790 | 1 | $38.30 | |||
| 060 | LABEL,PTO WARNING TA041-49590 TA040-49593 | 1 | $5.15 | |||
| 070 | LABEL, DRAWBAR, TD170-49350 | 1 | $8.73 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-
DIAG-K10500-87265 K10500 DRAWBAR
View Diagram -
DIAG-J11500-87265 J11500 LIFT ROD
View Diagram -

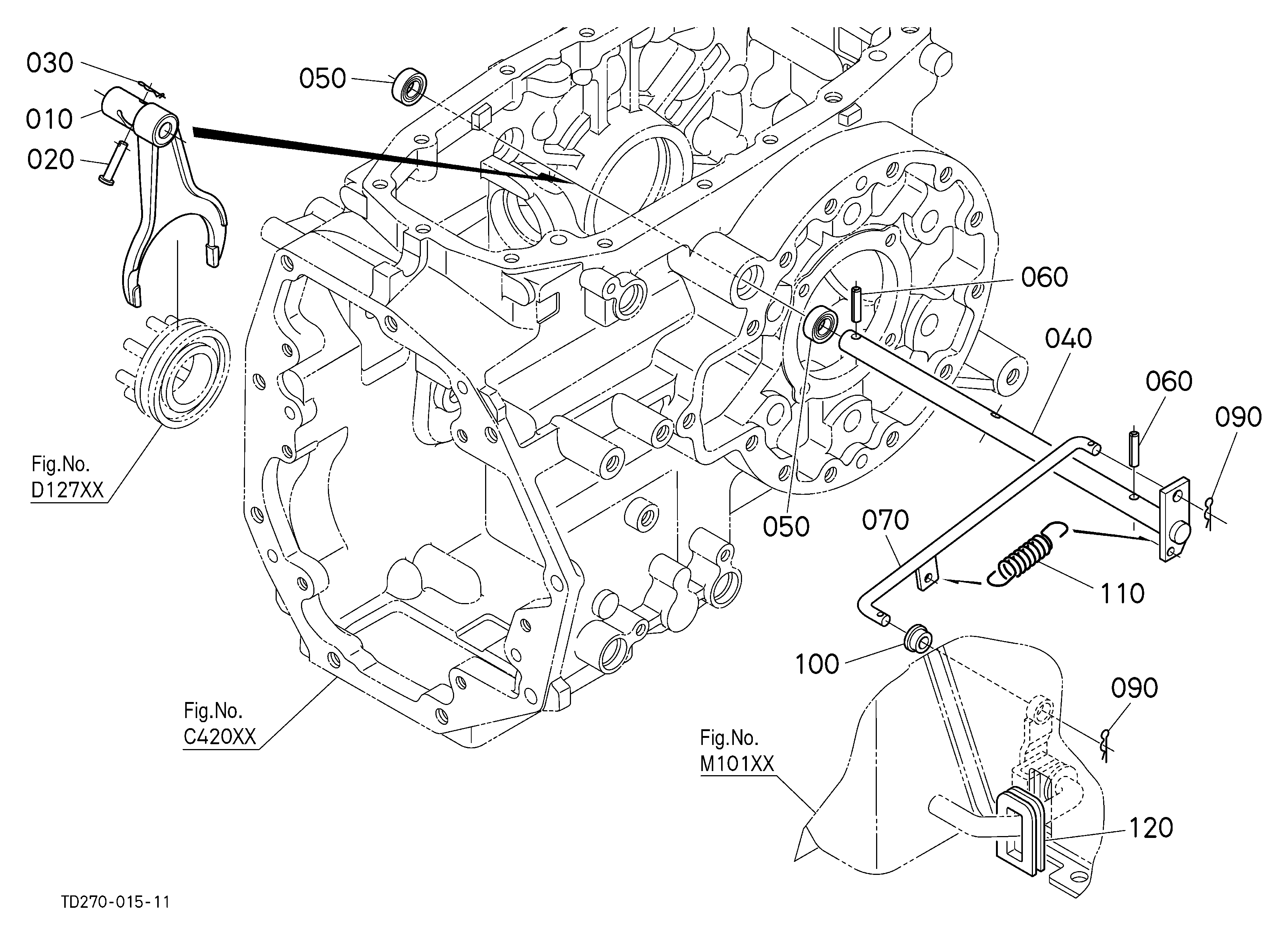

DIAG-D22500-87265 D22500 REAR DIFFERENTIAL LOCK SHIFT FORK
