Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP LINK,LOWER 3A151-92010 | 1 | $942.23 | |||
| 020 | LEVER,QUICK 3F760-92190 | 1 | $53.41 | |||
| 030 | SPRING 33660-92170 | 1 | $22.51 | |||
| 040 | PIN QUICK 3F760-92160 | 1 | $41.75 | |||
| 050 | Pin 05511-10435 05511-50435 | 1 | $0.36 | |||
| 060 | Replacement Pin 05112-51060 05122-51060 | 1 | $3.94 | |||
| 070 | Split Pin (Cotter Pin) 05511-50320 | 1 | $0.36 | |||
| 080 | COMP LINK, LOWER 3M740-92030 Discontinued | 1 | $434.93 | |||
| 090 | COMP,LOWER LINK 3A151-92110 | 1 | $955.35 | |||
| 160 | COMP.LINK,LOWER LH 3M740-92130 3M740-92132 | 1 | $384.09 | |||
| 170 | PIN 3A151-91880 | 1 | $242.12 | |||
| 180 | PIN 3A151-91890 Discontinued | 1 | $272.63 | |||
| 190 | SET, PIN ASSY 36330-91840 | 1 | $9.67 | |||
| 200 | STUD 36530-93040 | 1 | $15.15 | |||
| 210 | WASHER,SPRING 04512-60140 04512-70140 | 1 | $0.36 | |||
| 220 | Nut (Fastener) 02176-50140 | 1 | $1.51 | |||
| 230 | Split Pin 05511-10420 05511-50420 | 1 | $0.36 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-
DIAG-K11000-85848 K11000 TOP LINK
View Diagram -
DIAG-K13301-85848 K13301 STABILIZER [OLD TYPE]
View Diagram -

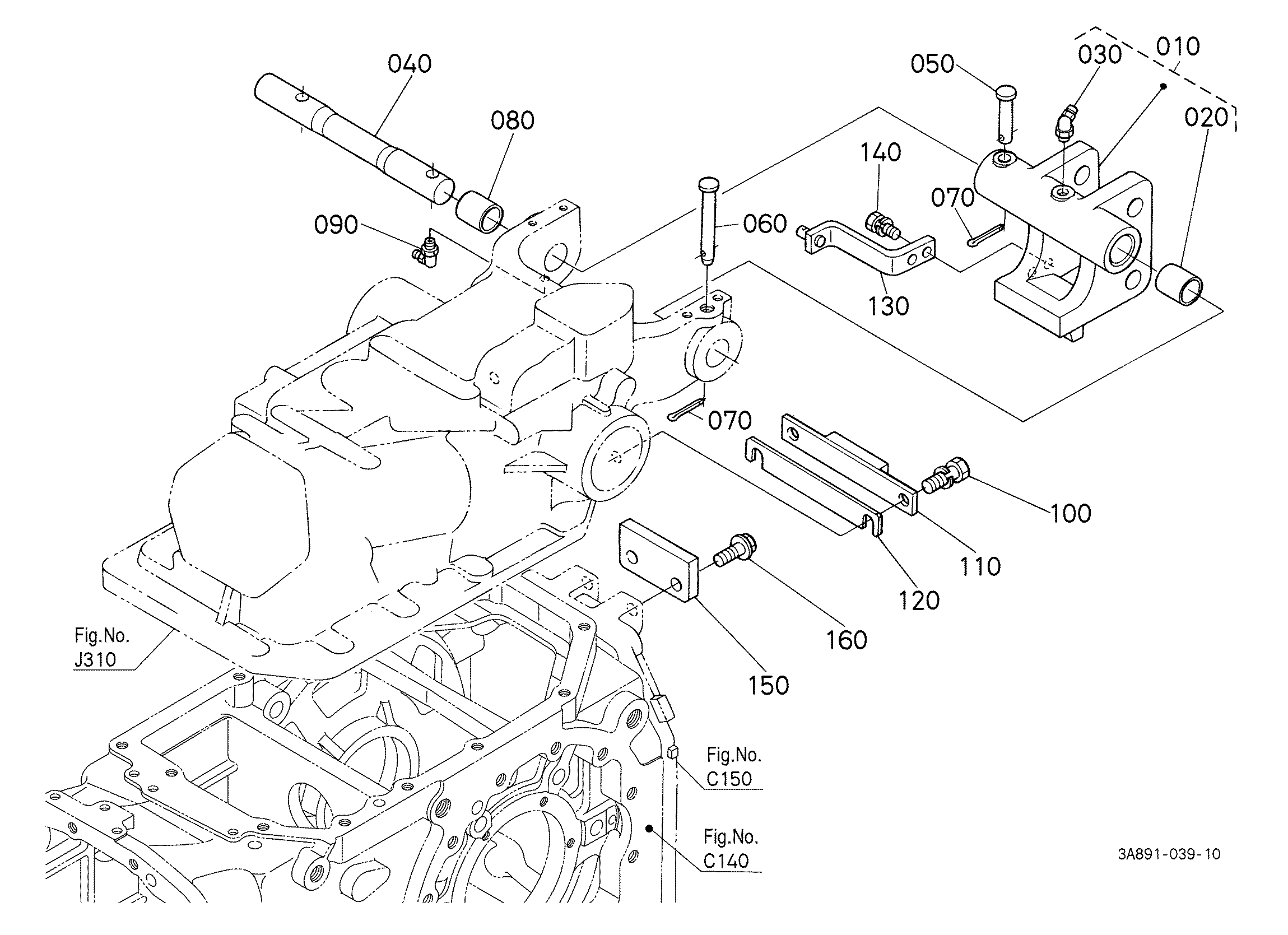

DIAG-K10500-85848 K10500 TOP LINK BRACKET
View Diagram
