| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 3-Point Hitch Pin Set 34150-37644 34150-37640 | 1 | $8.66 | ||||
| BOLT, LOWER LINK 6C040-65120 6C040-65122 | 1 | $8.19 | ||||
| COMP.LINK,LOWER LH 6C170-65410 6C170-65418 | 1 | $432.80 | ||||
| COMP.LINK,LOWER LH 6C170-65424 6C170-65426 | 1 | $201.15 | ||||
| COMP.LINK,LOWER RH 6C170-65510 6C170-65518 | 1 | $437.13 | ||||
| COMP.LINK,LOWER RH 6C170-65524 6C170-65526 | 1 | $200.29 | ||||
| Joint Pin 05112-50645 05122-50645 | 1 | $2.26 | ||||
| LEVER 6C170-65430 | 1 | $76.21 | ||||
| Lower Link Spacer 66204-65350 | 1 | $15.10 | ||||
| Nut 02018-50100 | 1 | $0.80 | ||||
| Nut (Fastener) 02117-50100 02118-50100 | 1 | $0.80 | ||||
| Pin 05511-50530 | 1 | $0.53 | ||||
| PIN 6C170-65450 | 1 | $13.95 | ||||
| PIN, JOINT 05112-50640 05122-50640 | 1 | $2.86 | ||||
| PIN, SPLIT 05511-11615 05511-51615 | 1 | $0.36 | ||||
| PIN,LOWER LINK 6C040-66010 6C040-66016 | 1 | $141.96 | ||||
| SPRING 6C170-65440 | 1 | $10.68 | ||||
| Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | ||||
Showing 1 to 18 of 18 parts
Related Assemblies
-

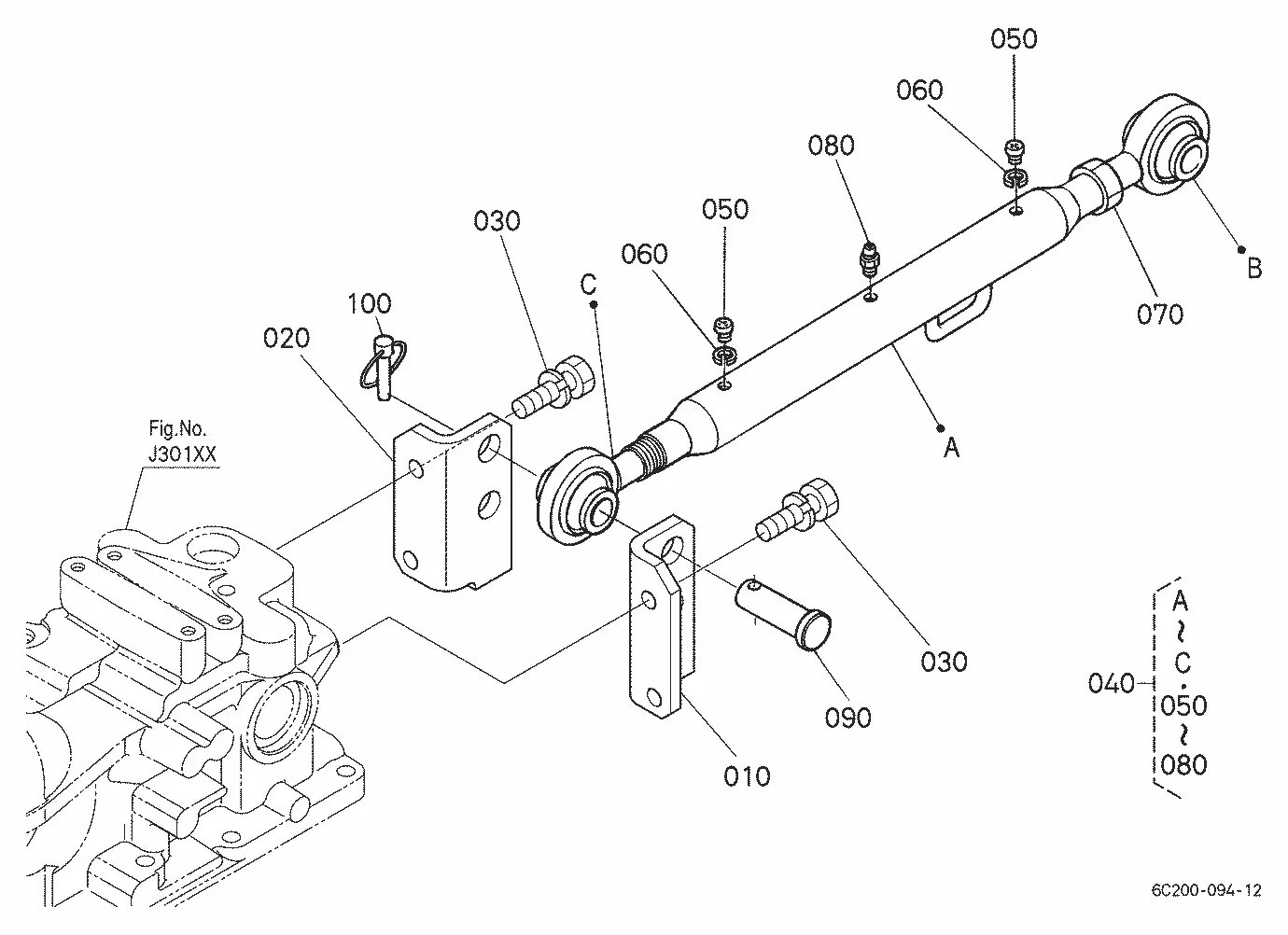

DIAG-K12000-84530 K12000 3-POINT LINKAGE 1(TOP LINK)
View Diagram -

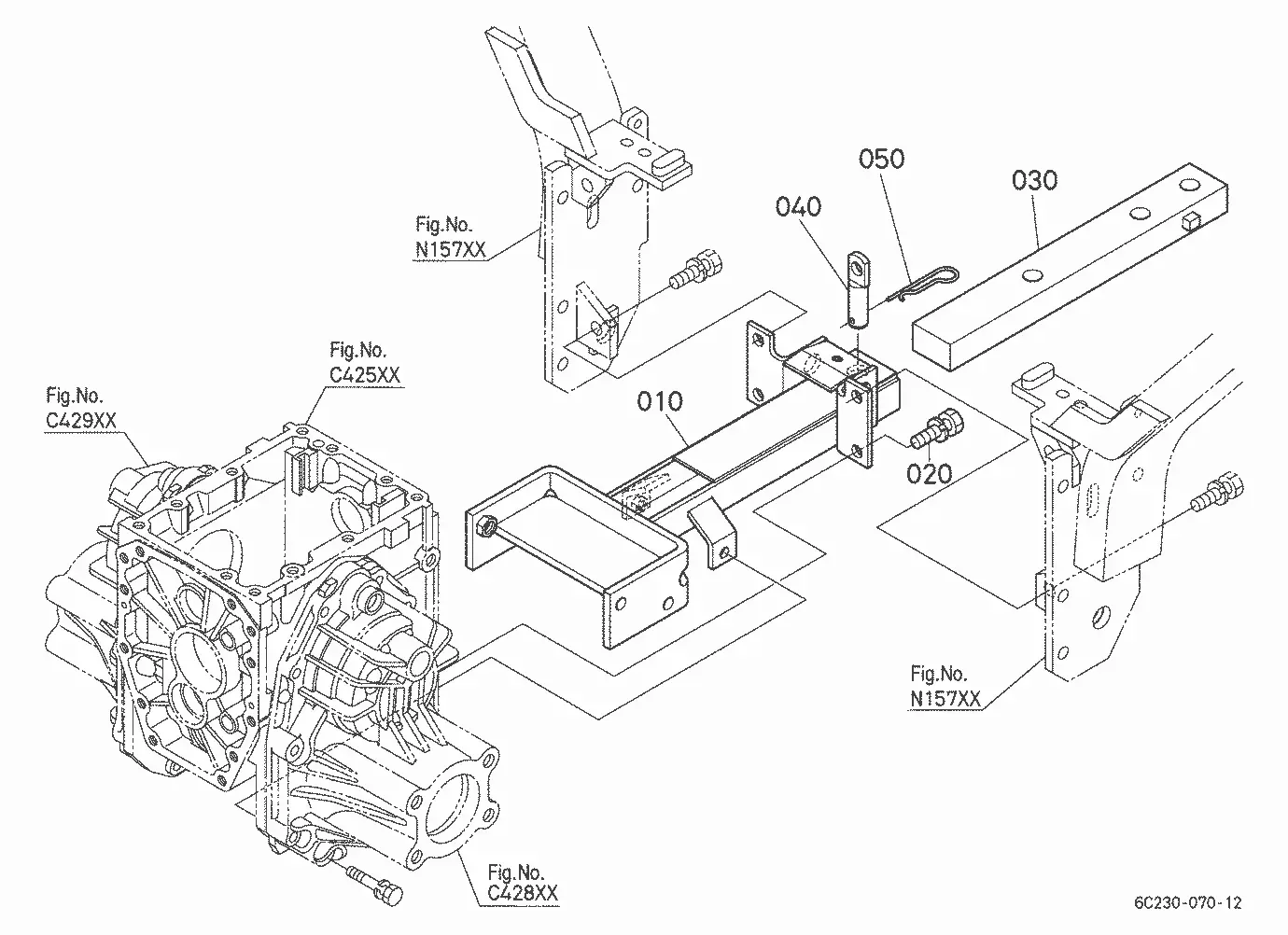

DIAG-L11700-84530 L11700 HITCH/DRAWBAR
View Diagram -

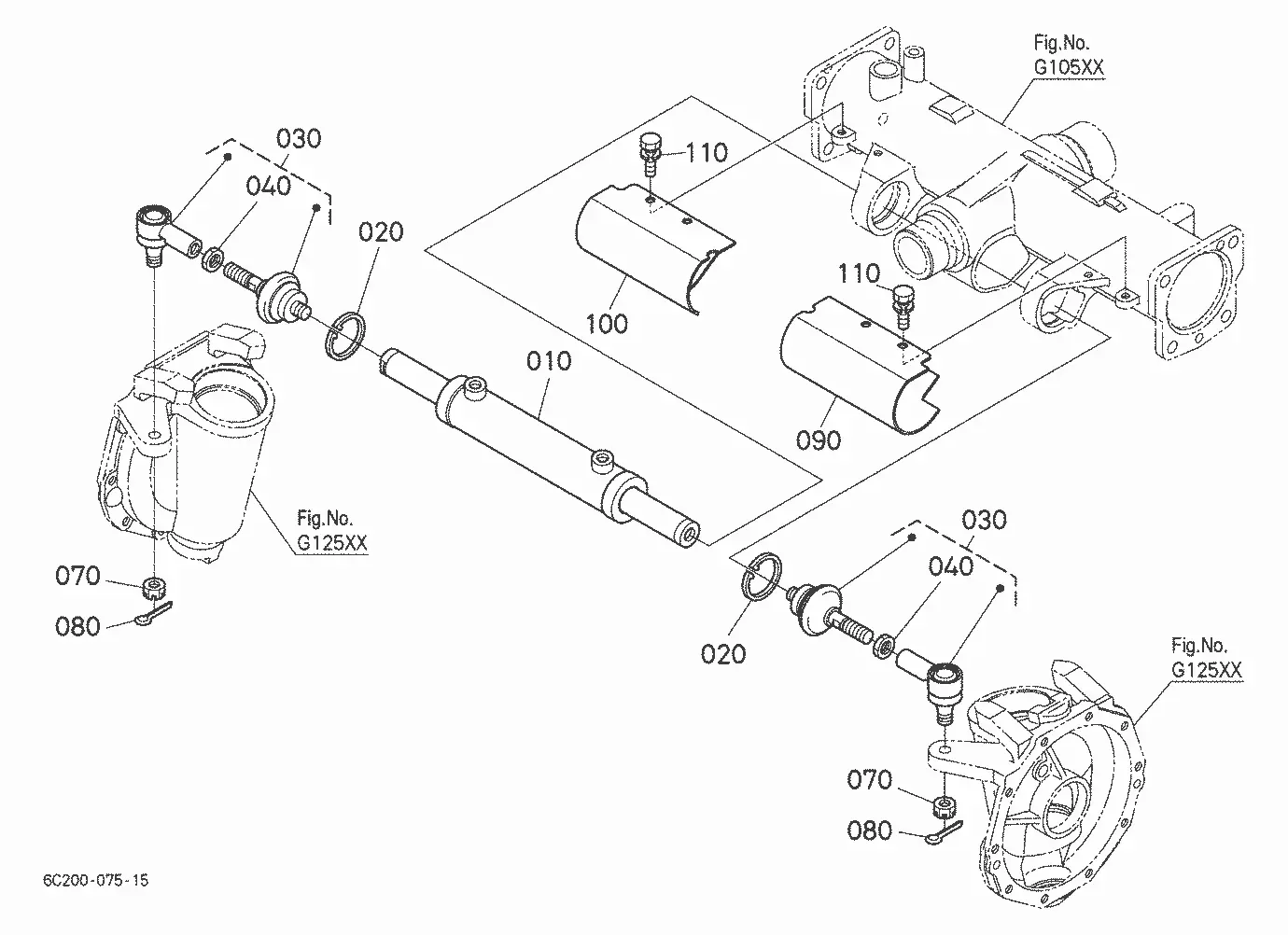

DIAG-H12000-84530 H12000 STEERING LINKAGE
View Diagram
