| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT BONNET (A) RA019-43400 RA018-91330 | 1 | $1,649.53 | |||
| 020 | RUBBER, SEAL 69191-43510 | 1 | $70.81 | |||
| 030 | TRIM 69191-43550 | 1 | $11.78 | |||
| 040 | BRACKET,BONNET RA011-43473 Discontinued | 1 | $86.47 | |||
| 050 | Bolt Fastener 01133-61020 01133-71020 | 1 | $1.99 | |||
| 060 | Plain (Flat) Washer 04013-60120 04013-70120 | 1 | $0.60 | |||
| 070 | SNAP PIN 05525-51200 | 1 | $1.48 | |||
| 080 | STAY 1,BONNET 69198-43520 Discontinued | 1 | $25.55 | |||
| 090 | STAY 69191-43530 | 1 | $9.57 | |||
| 100 | PIN, JOINT 05122-50816 | 1 | $2.26 | |||
| 120 | Pin for Tractor & Mower Assemblies 05525-50080 05525-50800 | 1 | $1.31 | |||
| 130 | LOCK 1 BONNET 69191-43610 | 1 | $29.15 | |||
| 140 | PIN, JOINT 05122-50860 | 1 | $3.59 | |||
| 170 | SPRING 69191-43660 | 1 | $12.99 | |||
| 180 | LOCK 2,BONNET 69191-43630 | 1 | $32.71 | |||
| 190 | Bolt Fastener 01125-60816 01125-70816 | 1 | $0.99 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
DIAG-J30000-87817 J30000 STEP
View Diagram -
DIAG-K20000-87817 K20000 SPONGE
View Diagram -

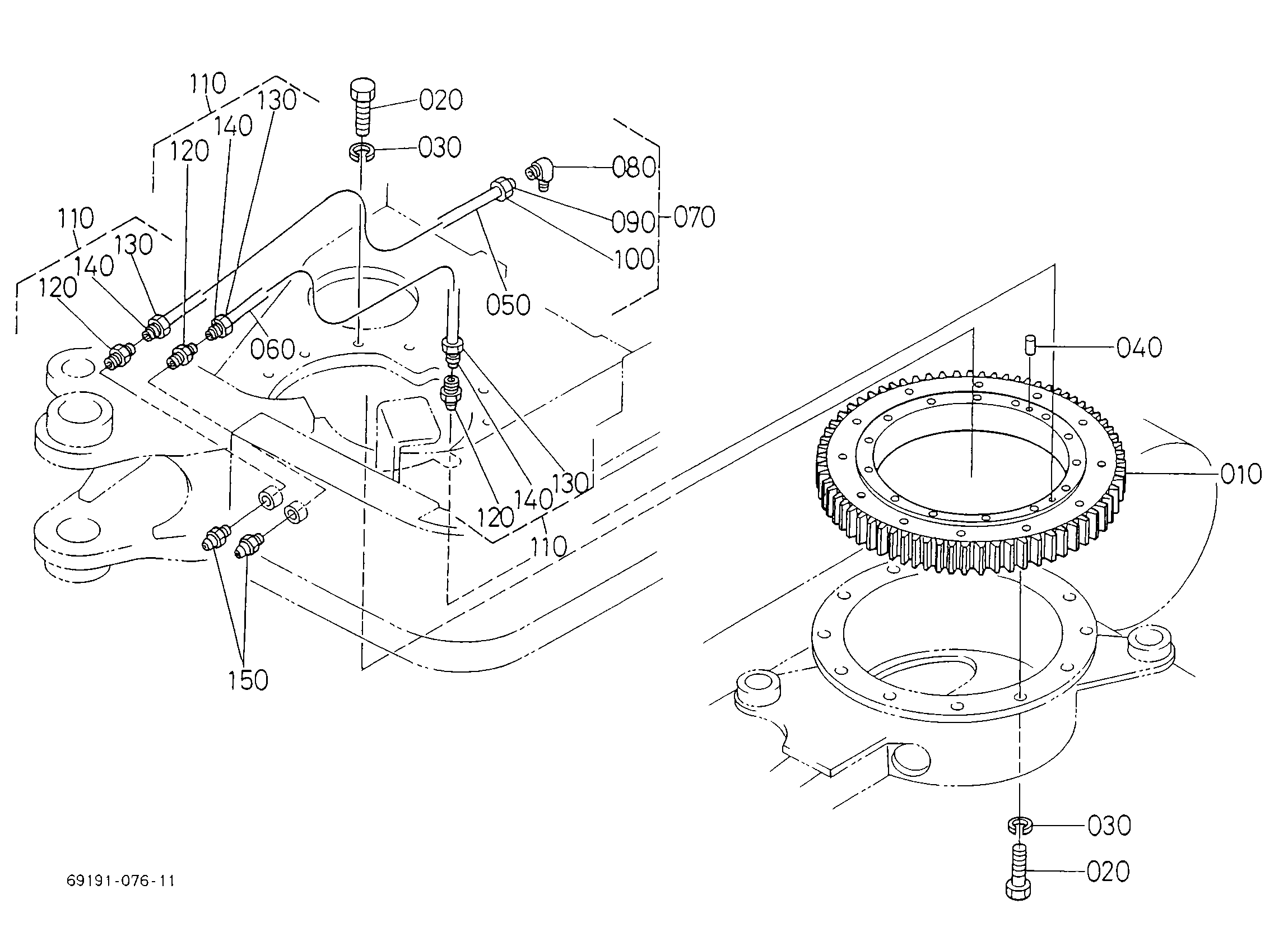

DIAG-J10000-87817 J10000 SWIVEL BEARING
