Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | HEAD LAMP ASSY 68743-46170 | 1 | $83.24 | |||
| 002 | COVER, LIGHT REA 68743-46194 68723-46190 | 1 | $22.35 | |||
| 003 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 004 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.60 | |||
| 005 | COVER 68749-46182 Discontinued | 1 | $408.05 | |||
| 006 | SCREW, W/WASHER 03004-50616 | 1 | $0.64 | |||
| 007 | Plain Washer 04011-50060 04012-50060 | 1 | $0.36 | |||
| 008 | WIPER ASSY 68743-46700 | 1 | $656.18 | |||
| 009 | MOTOR, WIPER 68743-46710 Discontinued | 1 | $293.57 | |||
| 010 | ARM 68271-53220 | 1 | $140.51 | |||
| 011 | BLADE, WIPER 68331-53270 69253-53640 Discontinued | 1 | $57.71 | |||
| 012 | SCREW, W/WASHER 03004-50612 | 1 | $0.64 | |||
| 013 | ASSY, WINDOW WAS 68743-46900 Discontinued | 1 | $175.87 | |||
| 014 | ***TANK ASSY 68743-46910 Discontinued | 1 | $166.44 | |||
| 015 | TUBE 68743-46920 Discontinued | 1 | $11.03 | |||
| 016 | NOZZLE,WASHER 68353-46750 3F760-54180 | 1 | $35.94 | |||
| 017 | BRACKET 68743-46892 Discontinued | 1 | $27.84 | |||
| 019 | WASHER, (53 ERRO 04013-50600 04011-50600 Discontinued | 1 | $3.09 | |||
| 020 | BOLT 01170-50816 01173-50816 | 1 | $8.38 | |||
| 021 | WIREHARNESS 68743-53112 Discontinued | 1 | $78.37 | |||
| 022 | WIREHARNESS (4) 68331-53442 Discontinued | 1 | $5.12 | |||
| 023 | WIRE HARN. 10 68271-53362 68271-53360 | 1 | $60.76 | |||
| 024 | CLAMP, CORD 35340-35580 34150-29390 | 1 | $9.47 | |||
| 025 | BOLT 01130-51016 01133-51016 | 1 | $1.99 | |||
| 026 | LIGHTER, CIGARET 36530-54220 68331-53170 | 1 | $47.51 | |||
| 027 | SWITCH 68353-46480 Discontinued | 1 | $83.62 | |||
| 028 | LAMP ROOM ASSY 68353-46400 Discontinued | 1 | $119.50 | |||
| 029 | WIRE HARNESS 2 68743-53120 Discontinued | 1 | $7.70 | |||
| 030 | TANK, WASHER 68743-46740 | 1 | $196.64 | |||
| 031 | SUPPORT, FUEL TA 68743-46750 | 1 | $26.93 | |||
| 032 | BULB 68353-46790 | 1 | $18.45 | |||
| 033 | Spring Washer 04512-50080 | 1 | $0.87 | |||
Showing 1 to 32 of 32 parts
Related Assemblies
-

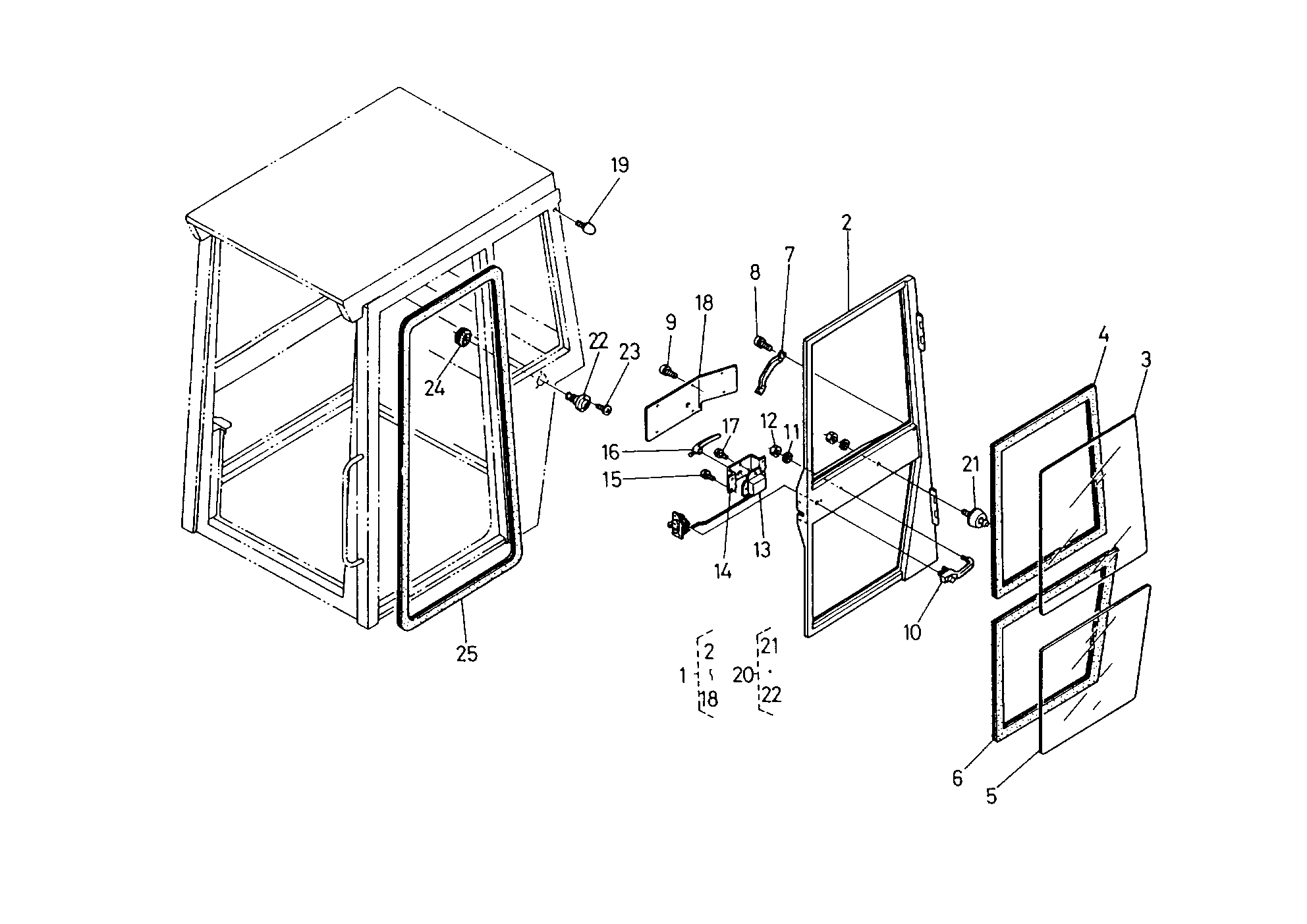

DIAG-K08900-85123 K08900 CABIN (4) (DOOR)
View Diagram -
DIAG-K09100-85123 K09100 CABIN (6) (HEATER)
View Diagram -
DIAG-K08800-85123 K08800 CABIN (3) (FRONT DOOR)
View Diagram
