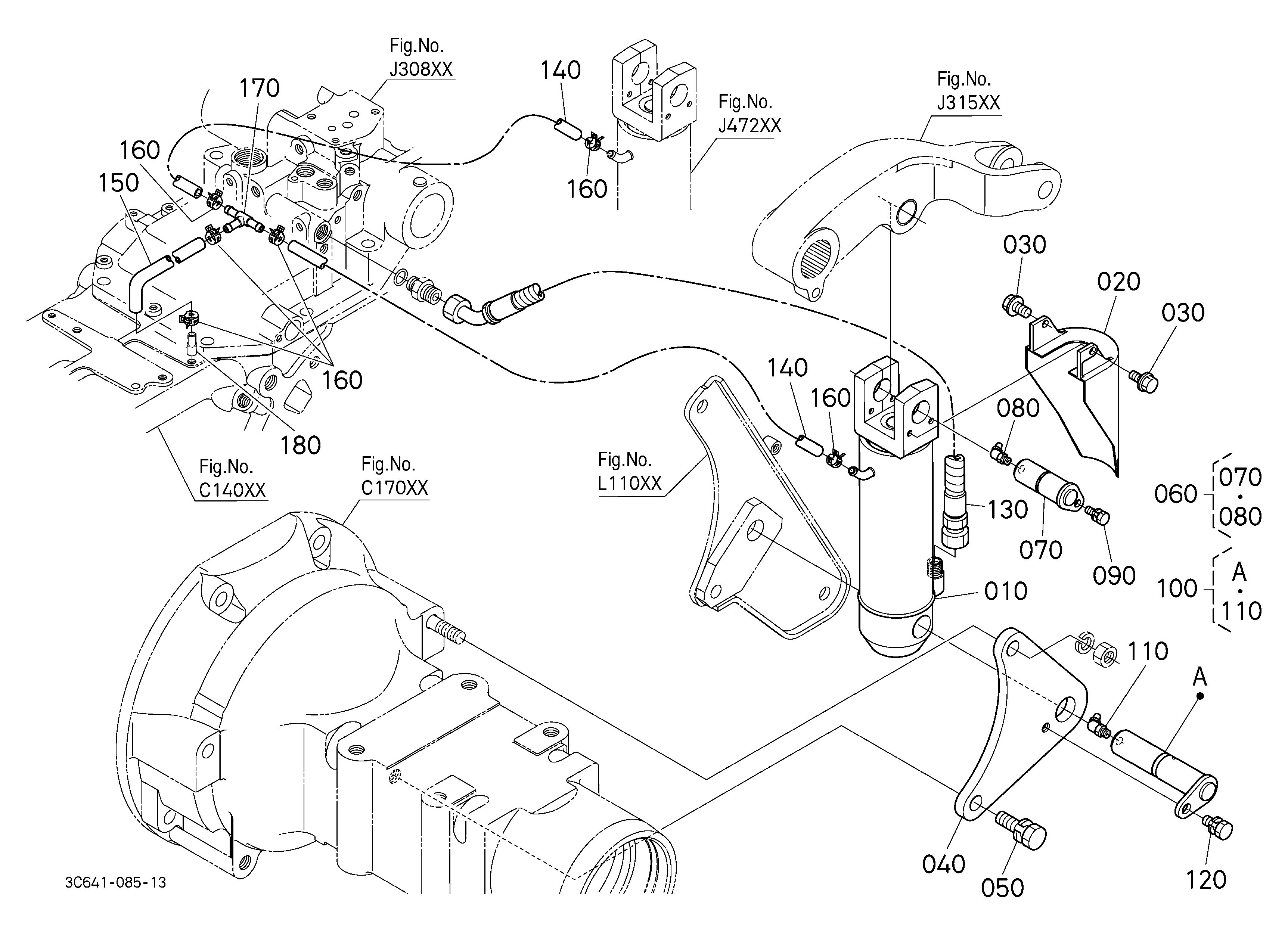

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CYLINDER,ASSY 3C085-94612 3B291-94610 | 1 | $1,030.51 | |||
| 020 | COVER, CYLINDER 3C091-94692 3C292-94690 | 1 | $36.89 | |||
| 030 | Bolt Fastener 01754-50820 | 1 | $4.70 | |||
| 040 | BRACKET,CYLINDER 3C151-94680 | 1 | $98.92 | |||
| 050 | BOLT 01138-61645 01138-51645 | 1 | $3.93 | |||
| 060 | ASSY PIN 3C081-94633 | 1 | $61.75 | |||
| 070 | PIN, CYLINDER 3C081-94652 | 1 | $39.09 | |||
| 080 | Grease Nipple Fitting 68721-71990 06616-25010 | 1 | $2.60 | |||
| 090 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 100 | ASSY PIN 3C081-94672 | 1 | $70.89 | |||
| 120 | Bolt 01130-51020 01133-51020 | 1 | $2.17 | |||
| 130 | HOSE, CYLINDER 3C151-94660 | 1 | $118.37 | |||
Showing 1 to 12 of 12 parts
