| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY VALVE,PTO 6C200-11206 6C200-11209 | 1 | $1,602.15 | |||
| 030 | PLUG, R1/8 RA111-62470 | 1 | $5.74 | |||
| 040 | ARM (PTO) 6C200-11130 | 1 | $55.75 | |||
| 050 | O-Ring 04816-06100 | 1 | $1.51 | |||
| 060 | O-Ring Seal 04811-00120 04816-00120 | 1 | $1.93 | |||
| 070 | O-Ring Seal 04811-00140 04816-00140 | 1 | $2.01 | |||
| 080 | External Circlip (Snap Ring) 04612-50140 04612-00140 | 1 | $0.31 | |||
| 090 | POPPET (L) 6C200-11140 TD170-58960 | 1 | $115.53 | |||
| 100 | SPRING 66363-39720 | 1 | $8.62 | |||
| 110 | PLUG 5H600-12620 | 1 | $14.54 | |||
| 120 | BOLT 6C040-19222 6C040-19223 | 1 | $4.85 | |||
| 130 | Washer 04717-00100 04717-01000 | 1 | $2.26 | |||
| 140 | SPRING, BALL STO 62061-18260 | 1 | $8.75 | |||
| 150 | Steel Ball 07715-01605 | 1 | $0.42 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-

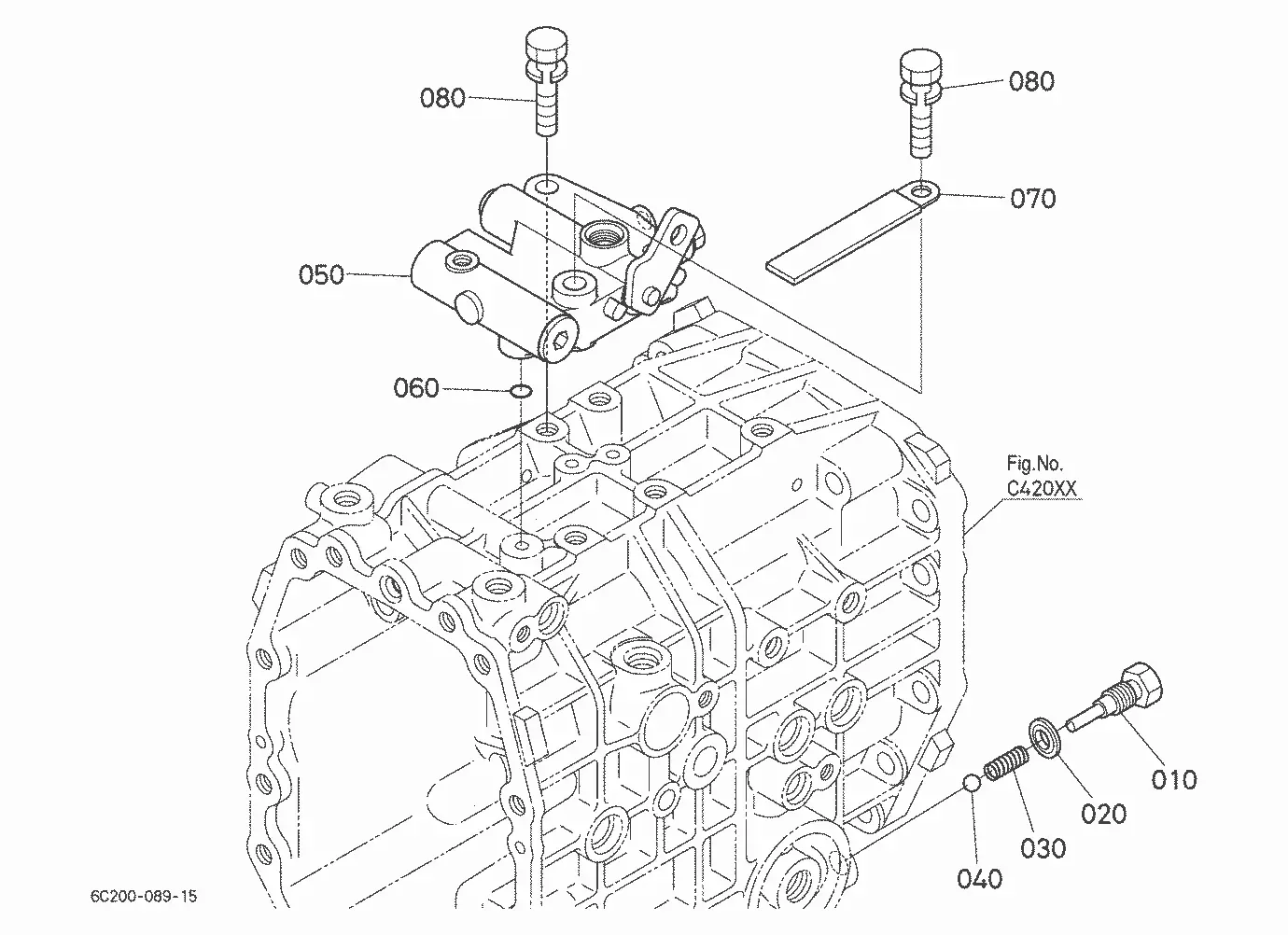

DIAG-J47000-84527 J47000 PTO VALVE
View Diagram -

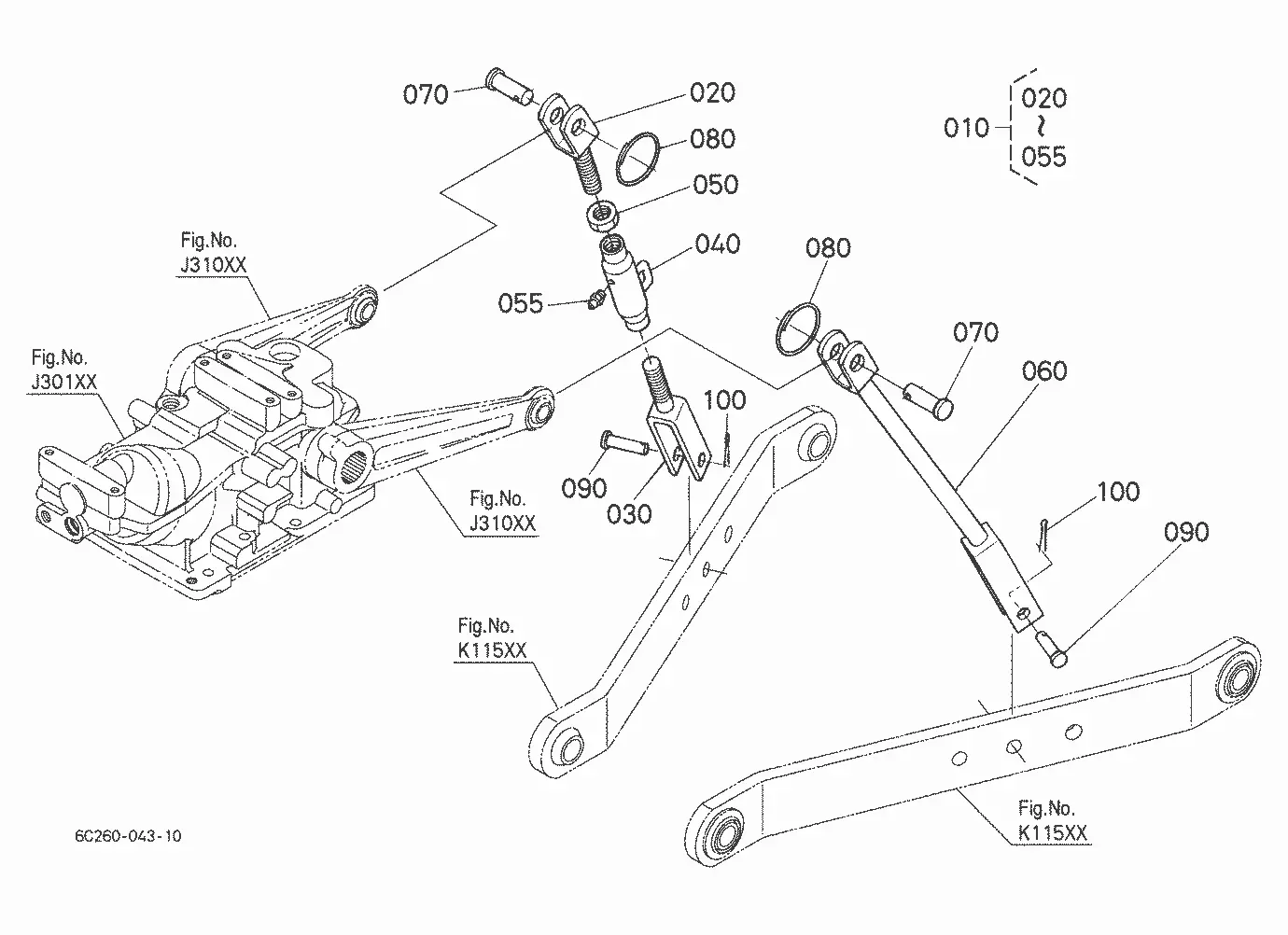

DIAG-K10101-84527 K10101 3-POINT LINKAGE 2 (LIFT ROD)
View Diagram -

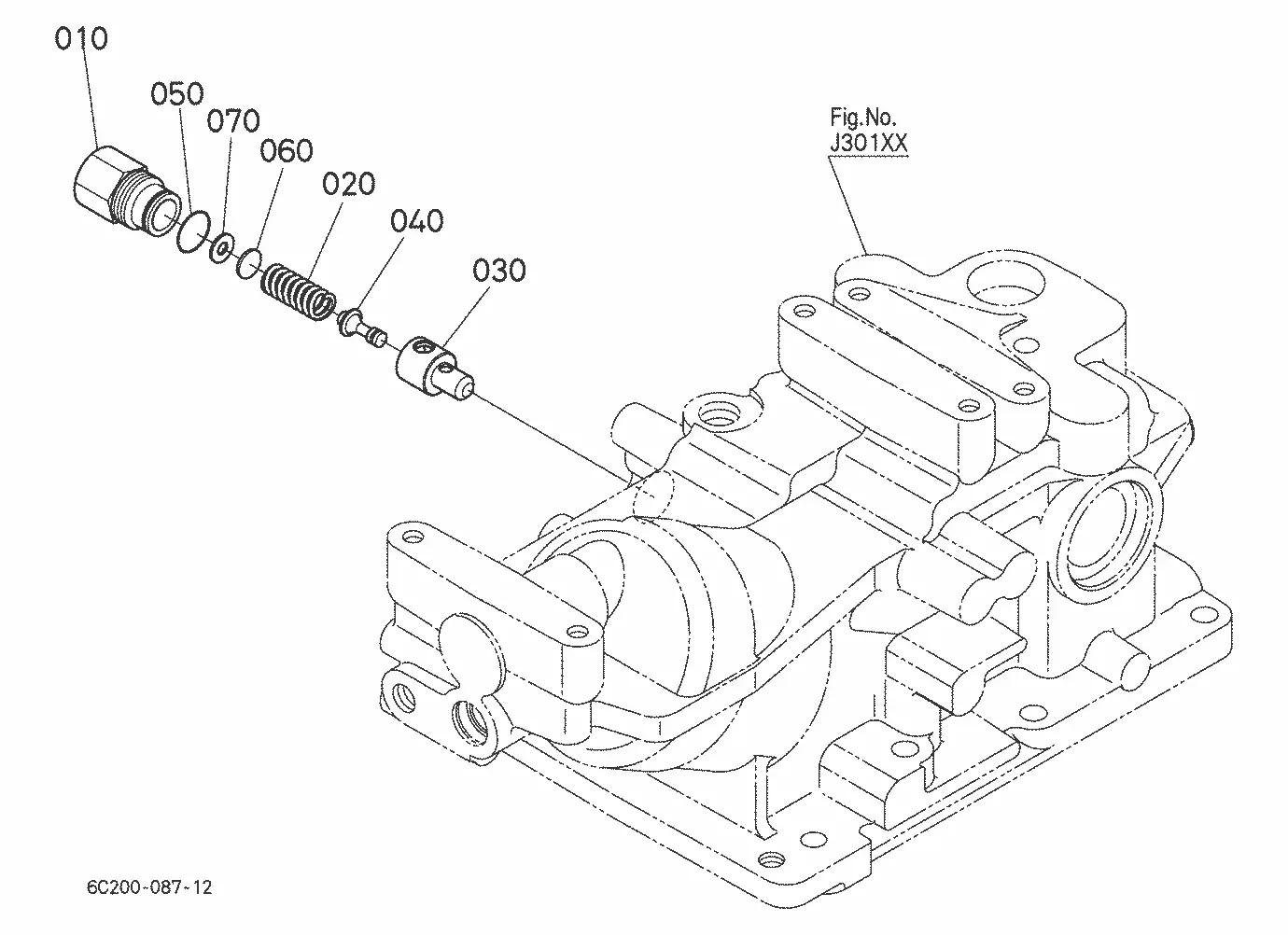

DIAG-J43000-84527 J43000 RELIEF VALVE
View Diagram
