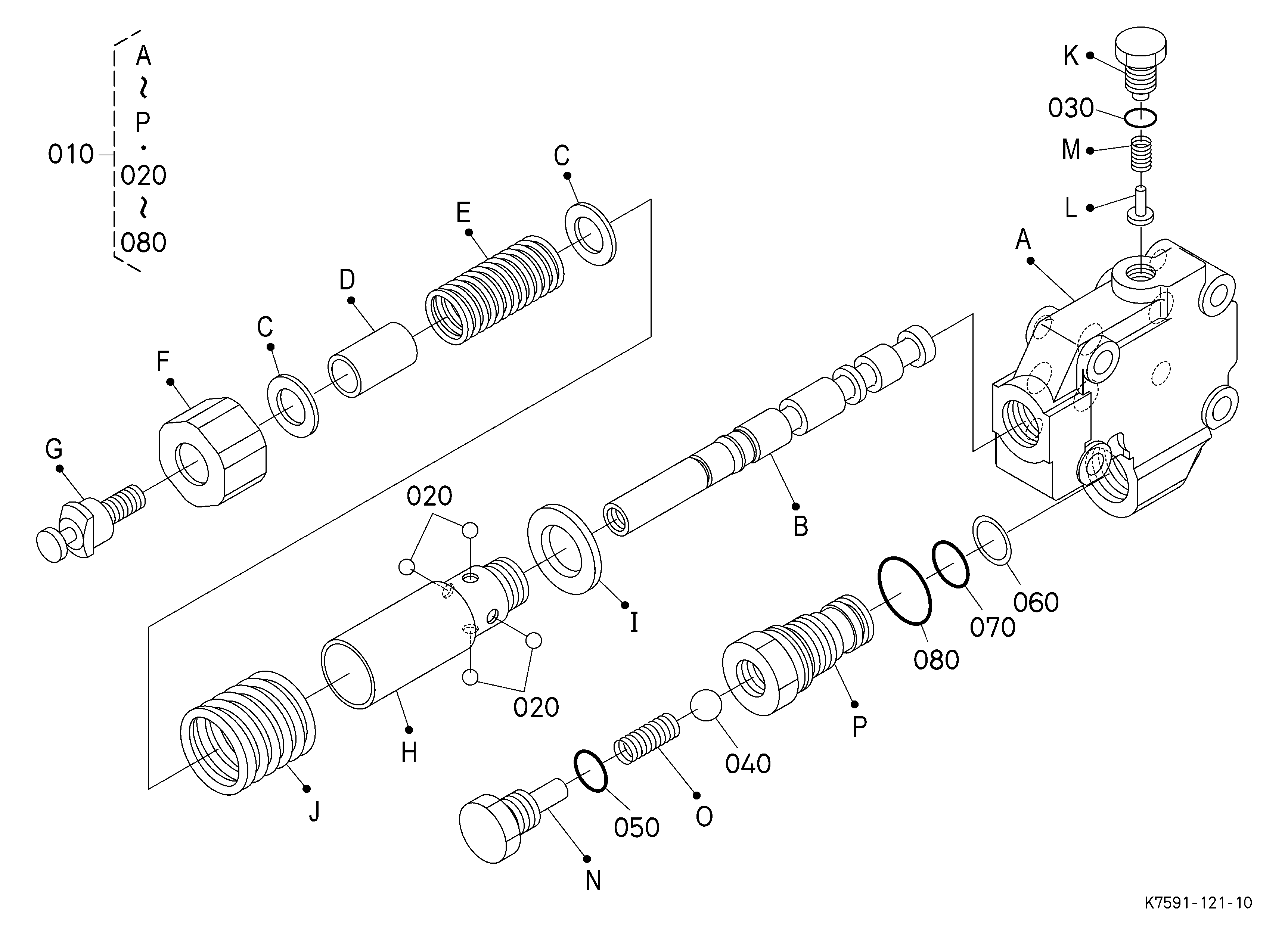

Kubota RTV-X / RTVX2-BKH-1 J45000 RELIEF VALVE Parts Diagram
Exploded-view parts diagram "J45000 RELIEF VALVE" for the Kubota RTV-X / RTVX2-BKH-1, Kubota RTV-X / RTVX2-PDLHS-1 / RTVX2-ADLHS-1, Kubota RTV-X / RTVX2-SCLA-1 / PCLA-1 / PCLAS-1, Kubota RTV-X / RTVX2-SKH-1 / SKLH-1 / PKLH-1 / PKLHS-1, Kubota RTV-X LONG BED / RTVX2L-PCLA-1, Kubota RTV-X LONG BED / RTVX2L-SKLH-1 / SKLA-1, Kubota RTV-X1120DG2 and Kubota RTV-X1120DR2 and 3 more models. 10 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY VALVE,RELIE K7591-12900 | 1 | $190.58 | |||
| 020 | RELIEF PLUG K2561-36710 YT635-01120 | 1 | $32.45 | |||
| 030 | SPRING,RELIEF TC402-37920 | 1 | $16.61 | |||
| 040 | SEAT,RELIEF VALVE TC402-37930 | 1 | $81.54 | |||
| 050 | POPPET TC402-37940 | 1 | $165.80 | |||
| 060 | Steel Ball 04811-10160 | 1 | $2.19 | |||
| 070 | SHIM(0.1) TC402-37970 | 1 | $3.47 | |||
| 070 | SHIM(0.2) TC402-37960 | 1 | $3.47 | |||
| 070 | SHIM(0.4) TC402-37950 | 1 | $3.47 | |||
| 080 | Plain Washer 04013-50050 04013-70050 | 1 | $0.60 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-
DIAG-J43500-404830 J43500 CONTROL VALVE [COMPONENT PARTS]
View Diagram -
DIAG-M10100-404830 M10100 FRONT GRILLE
View Diagram -

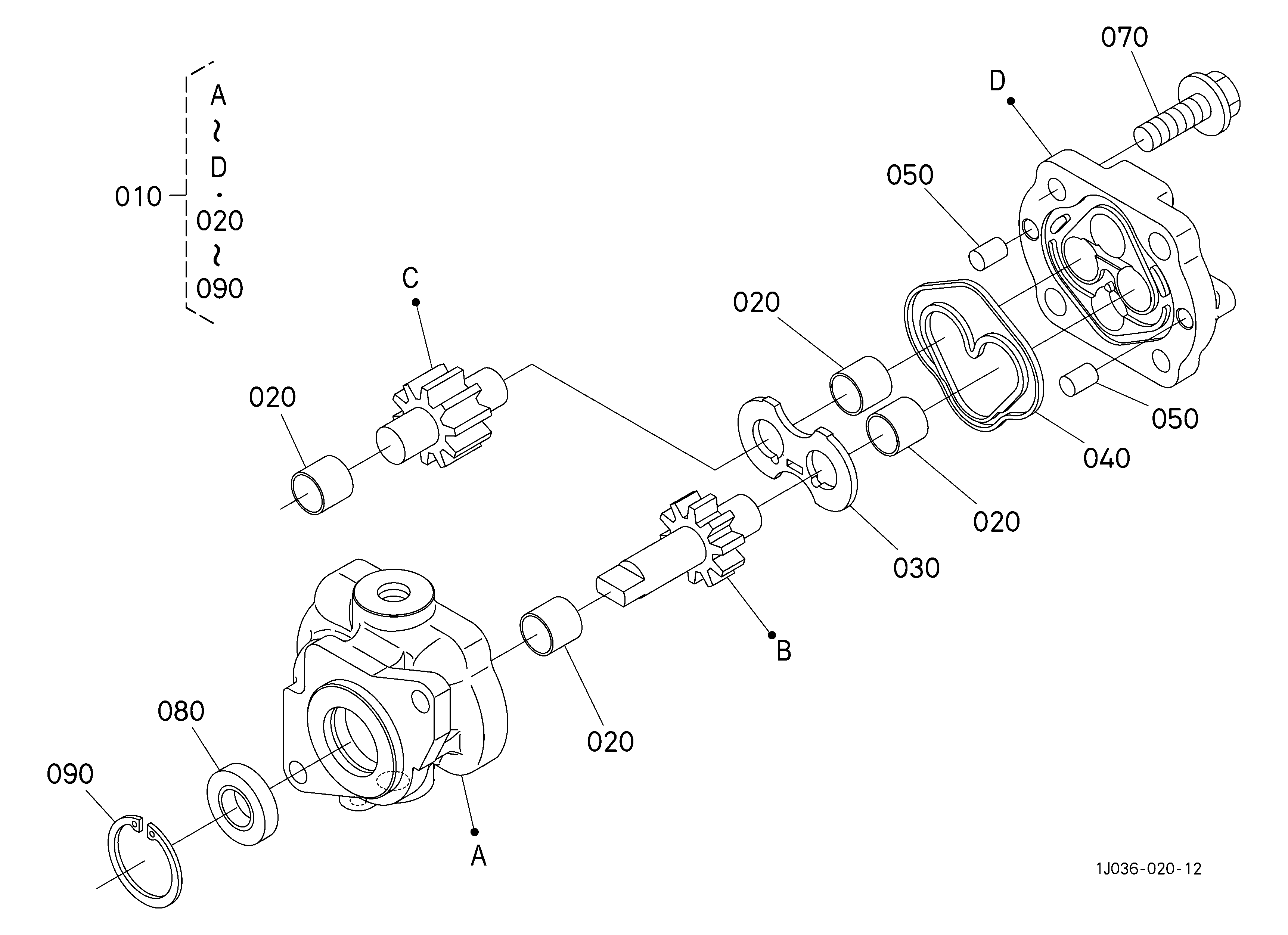

DIAG-J12500-404830 J12500 HYDRAULIC PUMP [COMPONENT PARTS]
