Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY CASE, COVER 3C081-82125 3C081-82127 | 1 | $1,408.99 | |||
| 020 | BUSHING 3G705-82410 | 1 | $59.12 | |||
| 030 | BUSH 2 36330-81830 | 1 | $28.58 | |||
| 040 | PLUG, TAPER 36741-94022 | 1 | $12.99 | |||
| 050 | PLUG 31351-37160 | 1 | $5.15 | |||
| 060 | JOINT, PIPE 06012-11842 06012-51843 | 1 | $34.87 | |||
| 070 | O-Ring Seal 04810-00180 04817-00180 | 1 | $2.26 | |||
| 080 | JOINT, PIPE 06112-53033 | 1 | $44.19 | |||
| 090 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 100 | JOINT (S,G3/8-G3 RB238-61430 | 1 | $45.37 | |||
| 100 | JOINT,PIPE,SF/-F RB301-63810 RB301-63813 | 1 | $51.98 | |||
| 110 | BOLT 01138-51440 | 1 | $3.93 | |||
| 120 | STUD 01517-61435 01517-51435 | 1 | $4.79 | |||
| 130 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.14 | |||
| 140 | Nut (Fastener) 02176-50140 | 1 | $1.51 | |||
| 150 | BOLT 01138-51490 | 1 | $10.83 | |||
| 150 | BOLT, HEX 01176-51495 | 1 | $17.73 | |||
Showing 1 to 17 of 17 parts
Related Assemblies
-

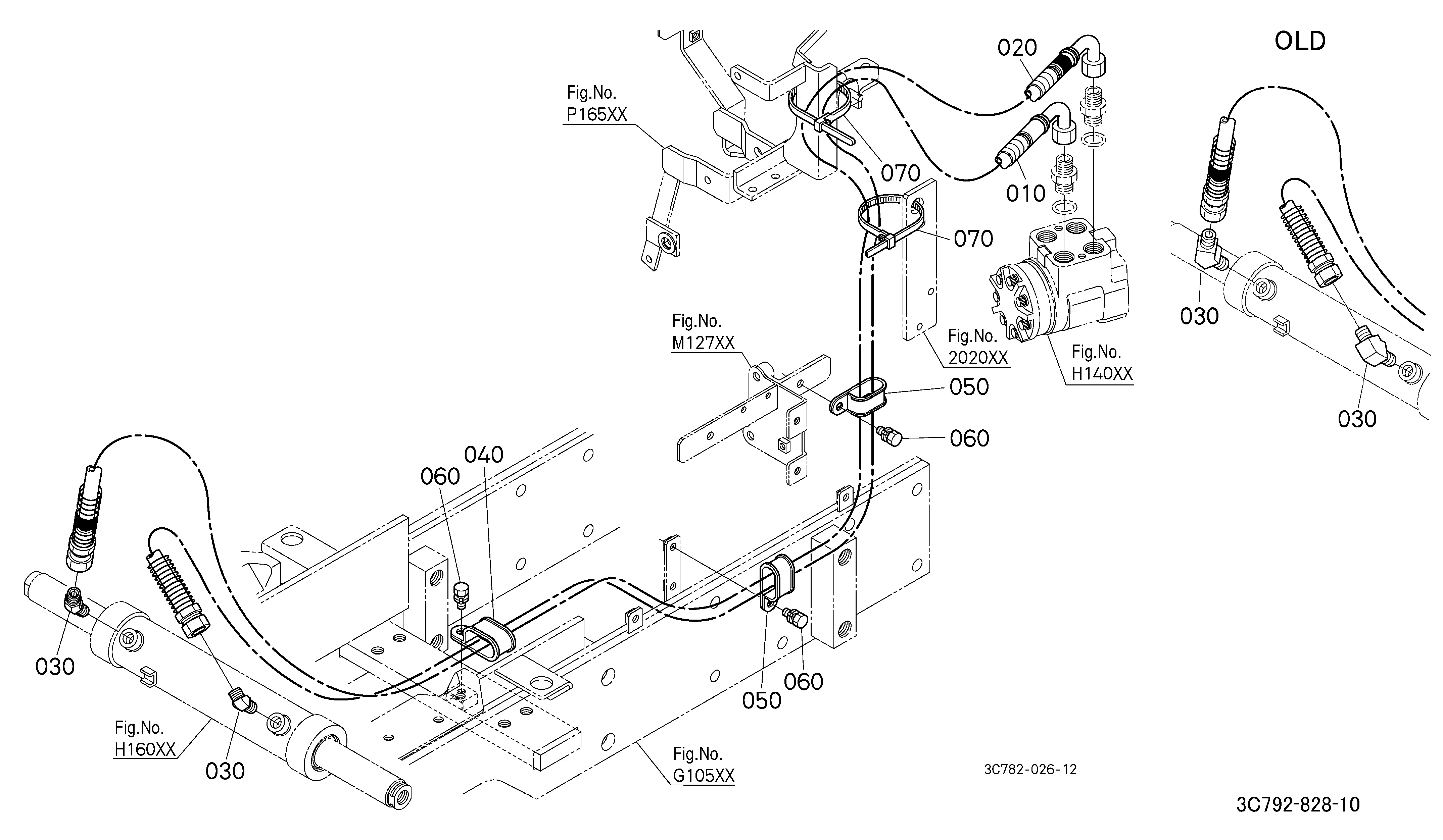

DIAG-J28000-85919 J28000 STEERING HOSE (DELIVERY)
View Diagram -
DIAG-J27501-85919 J27501 HYDRAULIC OIL LINE (STEERING/PTO) [OLD]
View Diagram -

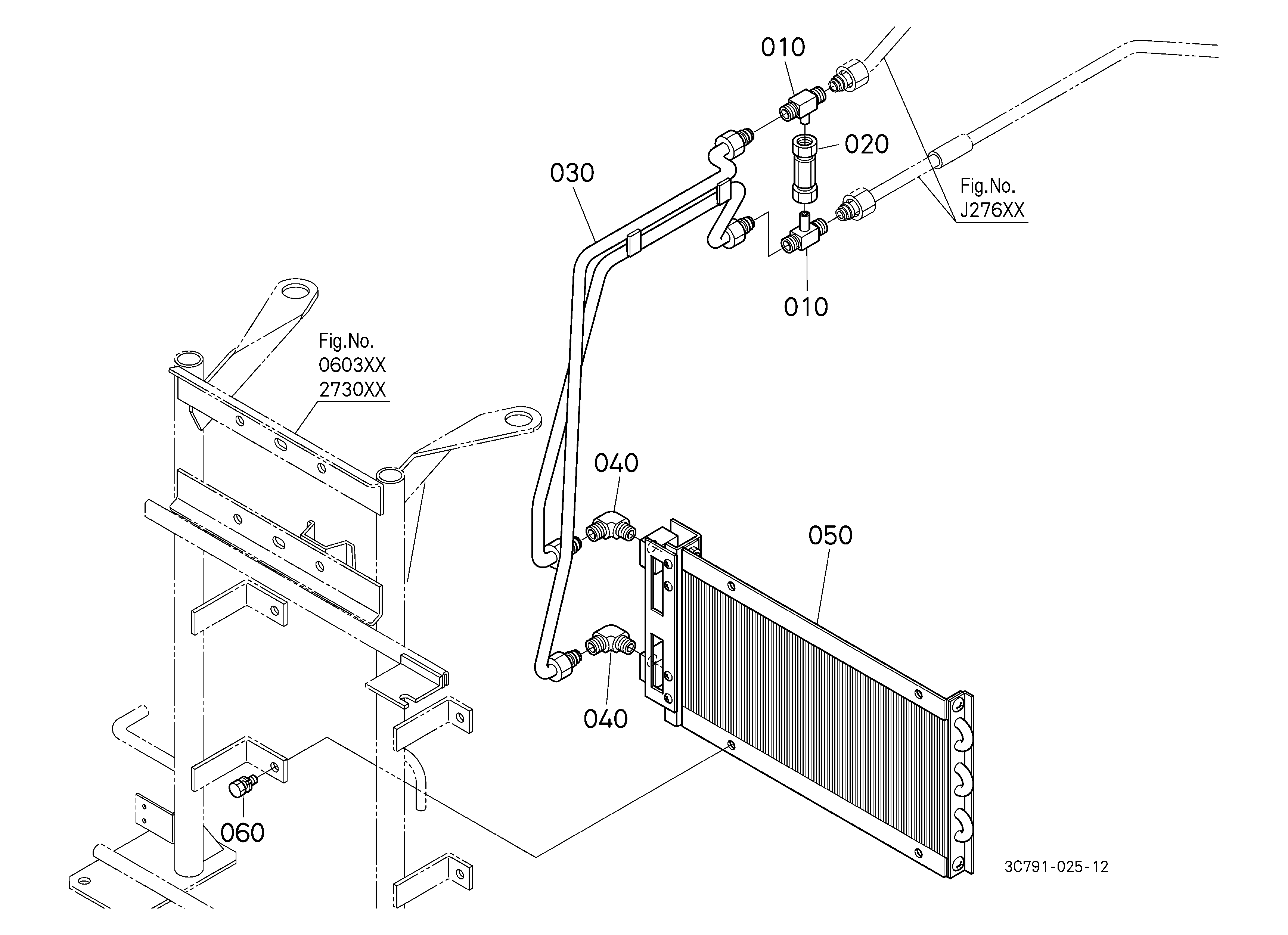

DIAG-J26500-85919 J26500 OIL COOLER
View Diagram
