Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | CASE,ASSY 3B731-82120 | 1 | $1,172.82 | |||
| 020 | BUSHING 3C001-82410 | 1 | $55.38 | |||
| 030 | BUSHING, HYD CYL 52600-23190 | 1 | $12.74 | |||
| 040 | PLUG, TAPER 36741-94022 | 1 | $12.99 | |||
| 050 | PLUG 31351-37160 | 1 | $5.15 | |||
| 060 | PIN, SPRING 05411-00825 | 1 | $1.51 | |||
| 070 | JOINT, PIPE 06012-11842 06012-51843 | 1 | $34.87 | |||
| 080 | O-Ring Seal 04810-00180 04817-00180 | 1 | $2.26 | |||
| 090 | JOINT,PIPE MR002-30310 | 1 | $40.16 | |||
| 100 | O-Ring Seal 04810-00140 04817-00140 | 1 | $2.50 | |||
| 130 | BOLT 01176-51404 | 1 | $6.05 | |||
| 140 | Spring Washer (Lock Washer) 04512-50140 | 1 | $0.14 | |||
| 150 | BOLT 01138-51440 | 1 | $3.93 | |||
| 160 | STUD 01517-61435 01517-51435 | 1 | $4.79 | |||
| 180 | Nut (Fastener) 02176-50140 | 1 | $1.51 | |||
| 190 | BOLT 3C041-82160 | 1 | $8.14 | |||
Showing 1 to 16 of 16 parts
Related Assemblies
-
J28500 HYDRAULIC OUTLET PIPE
View Diagram -

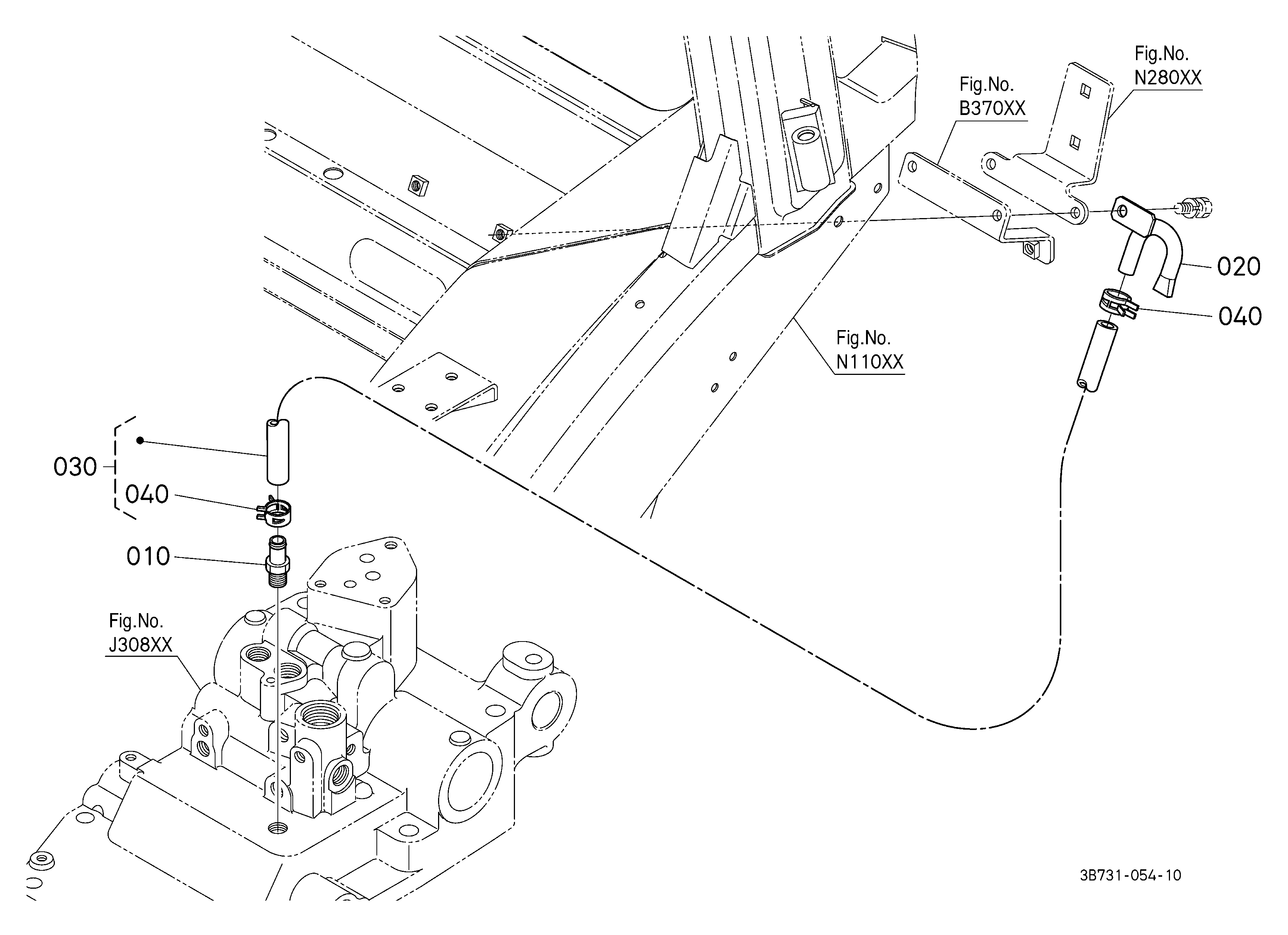

DIAG-J31201-194337 J31201 BREATHER HOSE (HYDRAULIC CYLINDER CASE)
View Diagram -

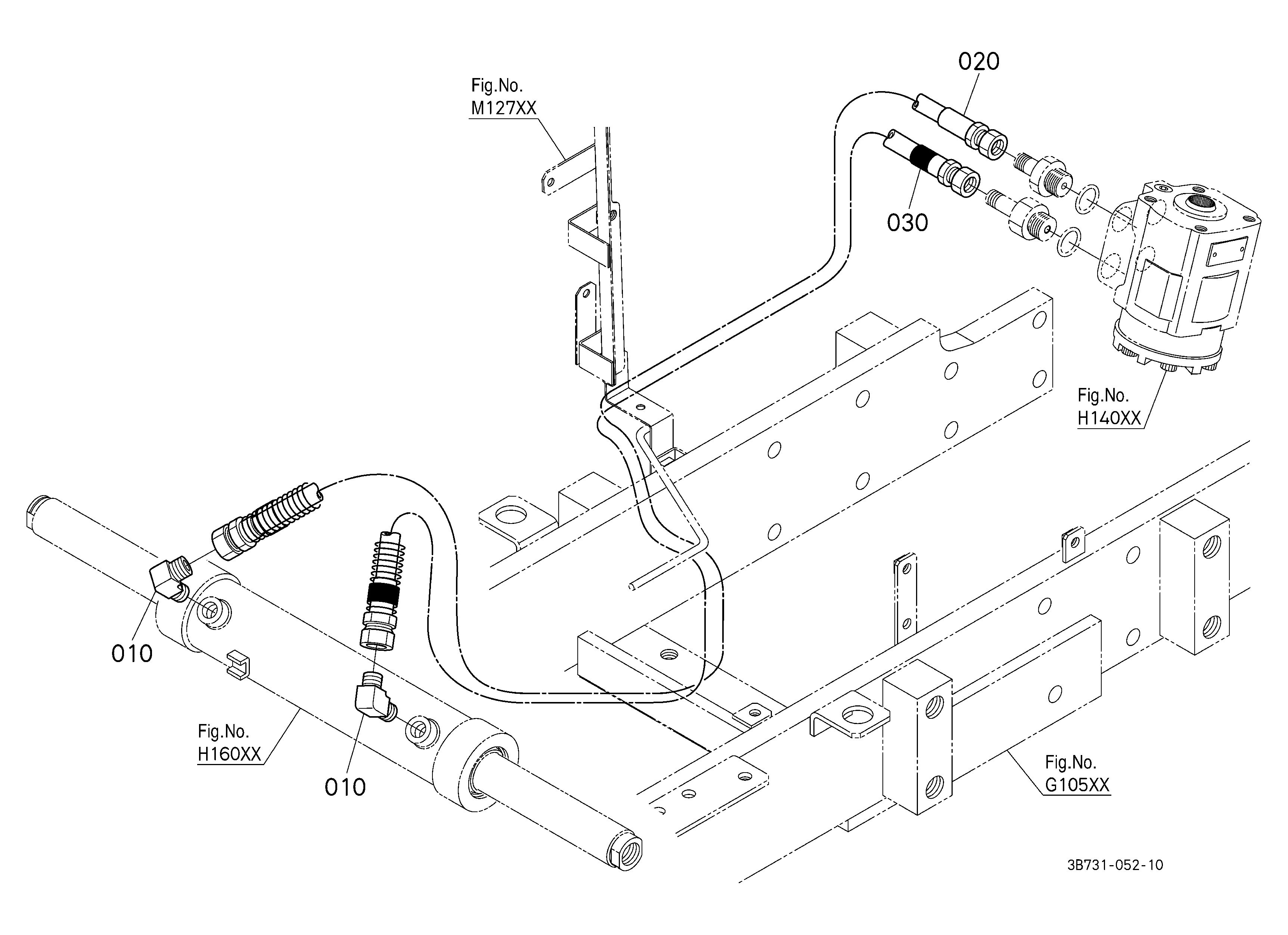

DIAG-J28000-194337 J28000 STEERING HOSE (DELIVERY)
View Diagram
